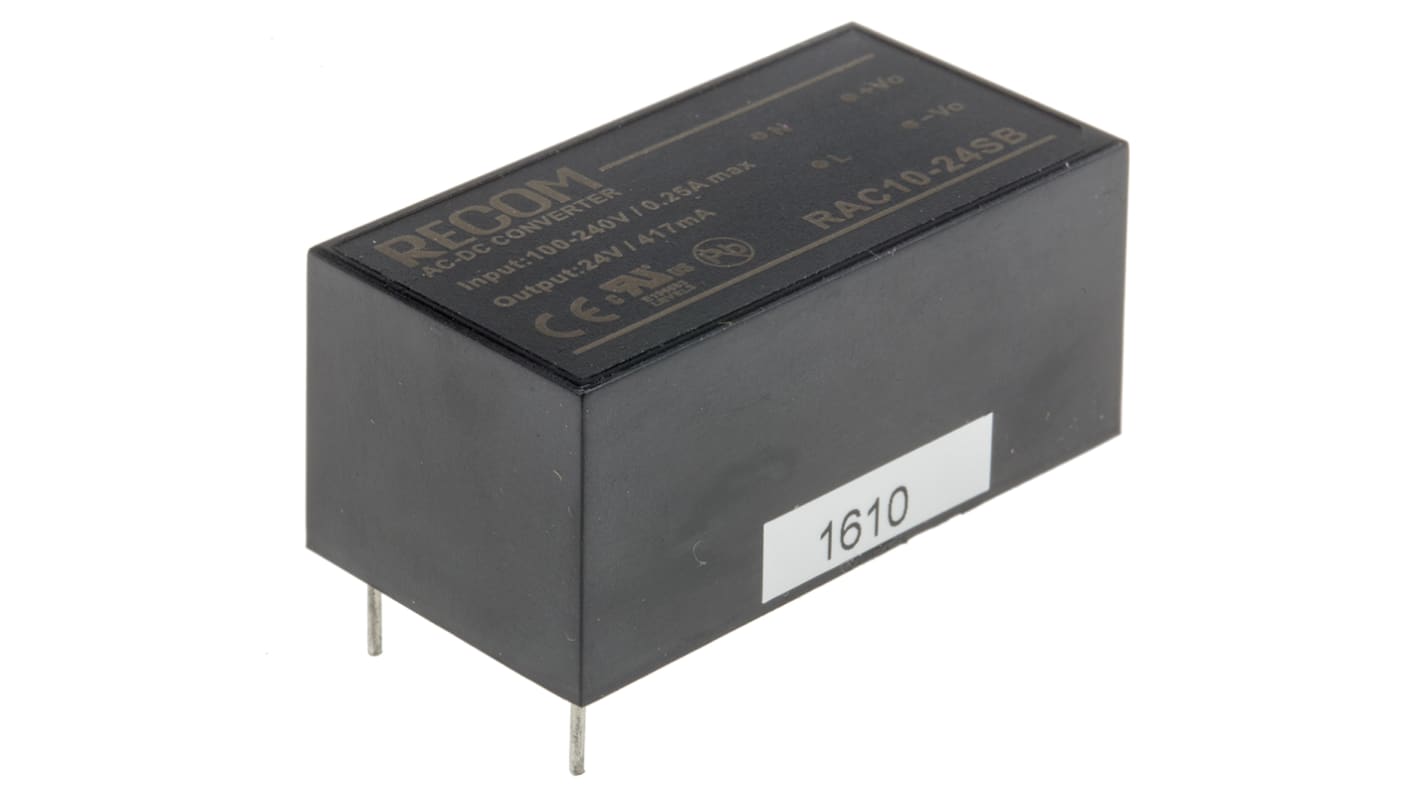

Recom Switching Power Supply, RAC10-24SB, 24V dc, 417mA, 10W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 193-238
- Mfr. Part No.:
- RAC10-24SB
- Brand:
- Recom
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 193-238
- Mfr. Part No.:
- RAC10-24SB
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 24V dc | |
Output Current | 417mA | |
Power Rating | 10W | |
Number of Outputs | 1 | |
Input Voltage | 90 → 264V ac | |
Mounting Type | PCB Mount | |
Package Type | Encapsulated | |
Length | 52.4mm | |
Width | 26.8mm | |
Depth | 23.5mm | |
Efficiency | 80% | |
Series | RAC10-B | |
Maximum Temperature | +70°C | |
Weight | 51g | |
Minimum Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 24V dc | ||
Output Current 417mA | ||
Power Rating 10W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 52.4mm | ||
Width 26.8mm | ||
Depth 23.5mm | ||
Efficiency 80% | ||
Series RAC10-B | ||
Maximum Temperature +70°C | ||
Weight 51g | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- TW

RECOM Switching Power Supply, 90 to 264V AC Input Voltage, 24V DC Output Voltage - RAC10-B Series - RAC10-24SB
Use this switching power supply unit from RECOM to convert AC power into DC. Its wide input voltage range of 90 to 264V AC means it's versatile, and it outputs a steady 24V DC to support devices in low-powered systems. Hiccup and automatic restart functions mean that your workflow is protected from short circuiting to keep your workplace safe. The durable epoxy and fibreglass casing makes this unit hardwearing, so you can be sure of a long service life. At just 59g, this device won't add excess load to your setup.
Features & Benefits
• Screw terminal or DIN rail-mounted for easy installation
• Conversion efficiency of 80% means minimal energy loss
• Mean time between failures of 330,000 hours for reliable long-term use
• ±0.3% line regulation for a dependable output
• ±0.5% load regulation offers consistent output when the load varies
• Conversion efficiency of 80% means minimal energy loss
• Mean time between failures of 330,000 hours for reliable long-term use
• ±0.3% line regulation for a dependable output
• ±0.5% load regulation offers consistent output when the load varies
Applications
• Custom power supplies
• Gate drivers
• Factory automation
• Gate drivers
• Factory automation
What size is this switching power supply?
This switching power supply has dimensions of 52.4 (length) x 26.8 (width) x 23.5mm (depth), so it's a useful choice in compact systems.
