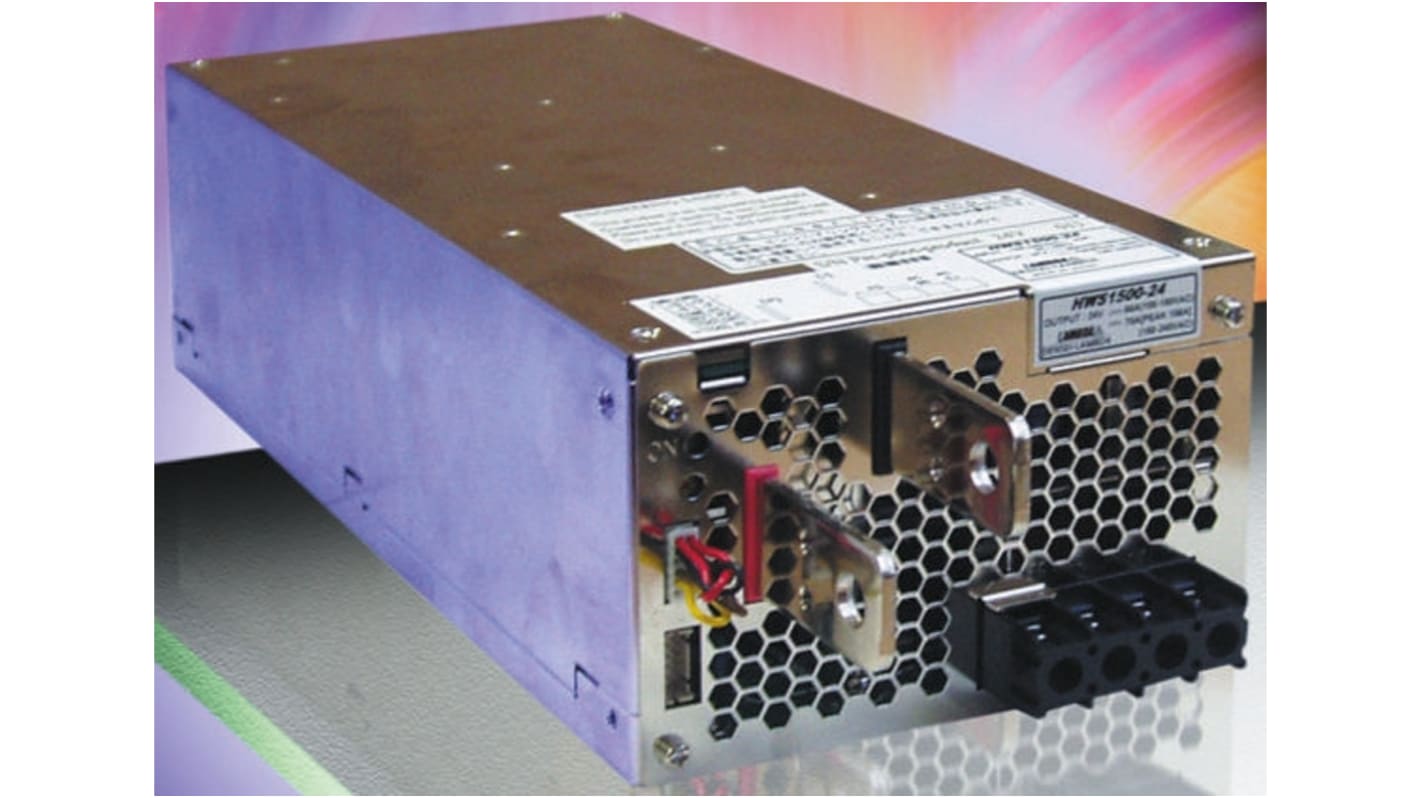

TDK-Lambda, HWS1500-12 Switching Power Supply 12V dc, 1.5 kW 370 V dc, 265V ac
- RS Stock No.:
- 177-854
- Distrelec Article No.:
- 304-10-066
- Mfr. Part No.:
- HWS1500-12
- Brand:
- TDK-Lambda
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1,309.82
(exc. VAT)
£1,571.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £1,309.82 |
| 5 - 9 | £1,270.52 |
| 10 - 24 | £1,231.23 |
| 25 - 49 | £1,191.93 |
| 50 + | £1,152.64 |
*price indicative
- RS Stock No.:
- 177-854
- Distrelec Article No.:
- 304-10-066
- Mfr. Part No.:
- HWS1500-12
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 1.5kW | |
| SMPS Output Current | 125A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 11in | |
| Weight | 3.8kg | |
| Depth | 5in | |
| Width | 3.25in | |
| Standards/Approvals | HWS1500: Class A, UL 508, SEMI-F47, IEC/EN/UL/CSA 60950-1 and 62368-1, IEC 61000-4-2, FCC VCC, EN 55011 / EN 55022, EN 50178, CE | |
| Efficiency | 85% | |
| Maximum Input Voltage | 370, 265V dc | |
| Series | HWS | |
| Hazardous Area Certification | No | |
| Output Current | 125A | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 1.5kW | ||
SMPS Output Current 125A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Length 11in | ||
Weight 3.8kg | ||
Depth 5in | ||
Width 3.25in | ||
Standards/Approvals HWS1500: Class A, UL 508, SEMI-F47, IEC/EN/UL/CSA 60950-1 and 62368-1, IEC 61000-4-2, FCC VCC, EN 55011 / EN 55022, EN 50178, CE | ||
Efficiency 85% | ||
Maximum Input Voltage 370, 265V dc | ||
Series HWS | ||
Hazardous Area Certification No | ||
Output Current 125A | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- MY
15W to 1500W HWS Series
Exceptionally compact, requires typically 50% less space than previous generation products
Designed for high reliability and long product lifecycle
Conforms to SEMI F47 (high line AC) requirements for semiconductor manufacturing equipment
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Conforms to SEMI F47 requirements for semiconductor manufacturing equipment
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC class B
Over-voltage and over-current protection
Built-in fan on 300-1500W types
Note
Peak load current for 10s max on time, 35% duty cycle. Derate output above 50°C. Depth excludes terminal block/connectors.
Approvals
UL recognised, CSA certified
Standards
UL508 UL 60950-1, CSA 60950-1, EN 60950-1, EN 50178
