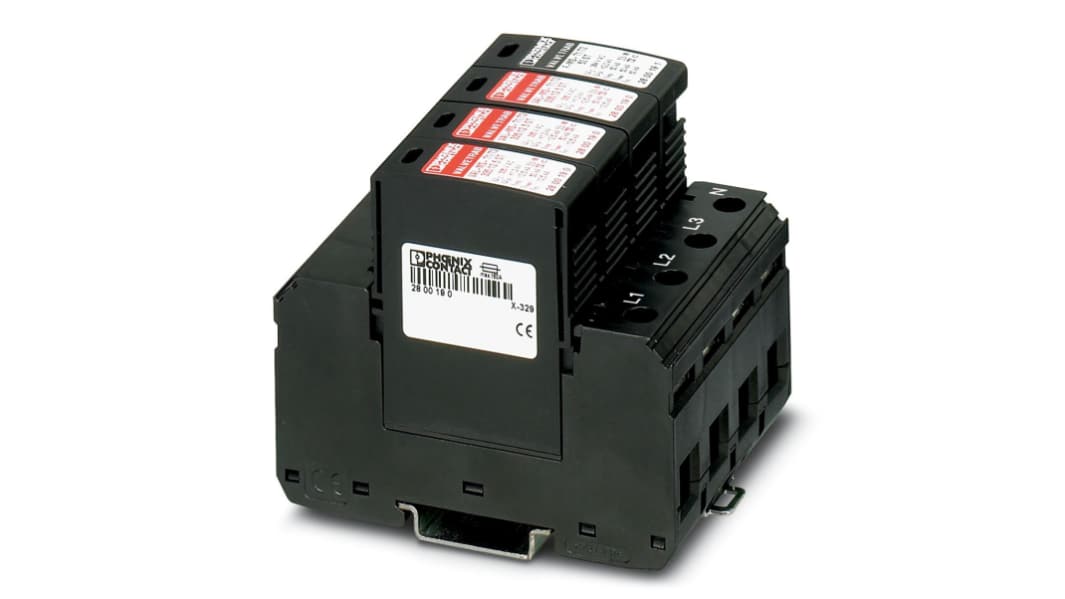

Phoenix Contact, VAL-MS-T1/T2 335/12.5/3+1 Lightning / Surge Arrester 335 V ac Maximum Voltage Rating 50kA Maximum
- RS Stock No.:
- 854-4842
- Mfr. Part No.:
- 2800184
- Brand:
- Phoenix Contact
Available to back order for despatch 04/06/2024
Added
Price Each
£597.04
(exc. VAT)
£716.45
(inc. VAT)
| Units | Per unit |
| 1 + | £597.04 |
- RS Stock No.:
- 854-4842
- Mfr. Part No.:
- 2800184
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Universal varistor-based plug-in lightning/surge arrester for 3-phase power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE), for Lightning Protection Levels III and IV.
Plugs can be checked with CHECKMASTER
Mechanical coding of all slots
Pluggable
Thermal disconnect device for each individual plug
Optical, mechanical status indication for the individual arresters
Specifications
Attribute | Value |
|---|---|
| Suppressor Type | Lightning Arrester |
| Maximum Voltage Rating | 335 V ac |
| Mounting Type | DIN Rail |
| Maximum Surge Current | 50kA |
| Series | VAL-MS-T1/T2 335/12.5/3+1 |
| Length | 71.2mm |
| Depth | 77.5mm |
| Height | 90mm |
| Dimensions | 71.2 x 77.5 x 90mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
