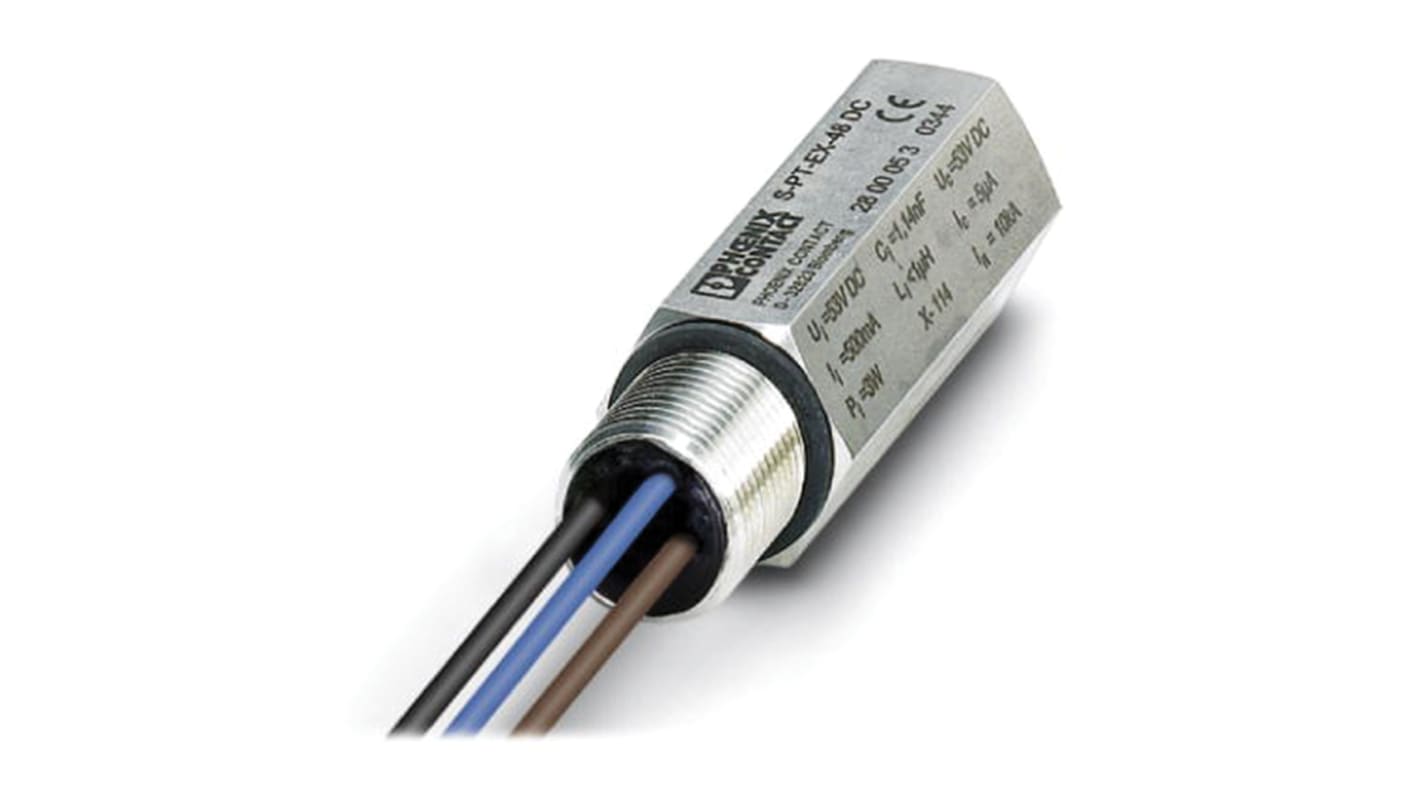

Phoenix Contact, S-PT-EX-48DC Surge Protection Device 37 V ac, 53 V dc Maximum Voltage Rating 20kA Maximum Surge
- RS Stock No.:
- 852-9966
- Mfr. Part No.:
- 2800053
- Brand:
- Phoenix Contact
Available to back order for despatch 02/07/2024
Added
Price Each
£107.71
(exc. VAT)
£129.25
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £107.71 |
| 10 - 24 | £97.43 |
| 25 - 49 | £94.87 |
| 50 - 99 | £92.44 |
| 100 + | £90.13 |
- RS Stock No.:
- 852-9966
- Mfr. Part No.:
- 2800053
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Surge protection for one floating signal circuits in screw-on module with IP67 protection for sensor heads, connection M20 x 1.5. Tested in acc. with the protection types in Ex areas Ex d / Ex tD / Ex ia IIC / Ex iaD. Can be used inside of a fieldbus-system according to the FISCO concept.
Arresters in hexagonal pipe with various outer threads
Specifications
Attribute | Value |
|---|---|
| Suppressor Type | Surge Arrester Protection Module |
| Maximum Voltage Rating | 37 V ac, 53 V dc |
| Mounting Type | Screw Mount |
| Maximum Surge Current | 20kA |
| Series | S-PT-EX-48DC |
| Length | 28mm |
| Depth | 79mm |
| Height | 28mm |
| Dimensions | 28 x 79 x 28mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
