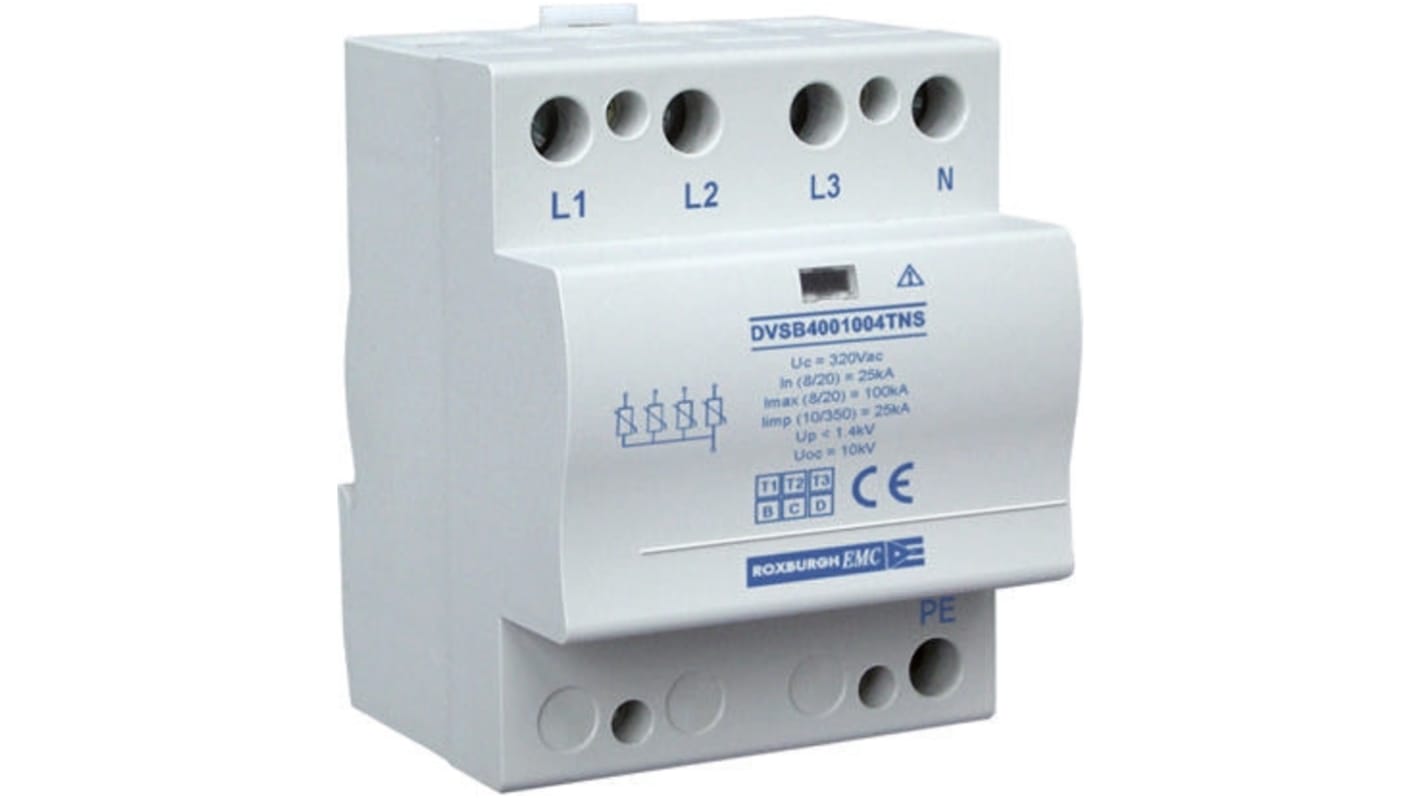

Roxburgh EMC, DVSB Surge Suppressor Unit 320 V ac, 420 V ac Maximum Voltage Rating 100kA Maximum Surge Current Type 1
- RS Stock No.:
- 707-9810
- Mfr. Part No.:
- DVSB4001004TNS
- Brand:
- Roxburgh EMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 707-9810
- Mfr. Part No.:
- DVSB4001004TNS
- Brand:
- Roxburgh EMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Roxburgh EMC | |
| Suppressor Type | Type 1 Arrester, Type 2 Arrester | |
| Maximum Voltage Rating | 320 V ac, 420 V ac | |
| Mounting Type | DIN Rail | |
| Maximum Surge Current | 100kA | |
| Series | DVSB | |
| Length | 72mm | |
| Depth | 70mm | |
| Height | 90mm | |
| Dimensions | 72 x 70 x 90mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Roxburgh EMC | ||
Suppressor Type Type 1 Arrester, Type 2 Arrester | ||
Maximum Voltage Rating 320 V ac, 420 V ac | ||
Mounting Type DIN Rail | ||
Maximum Surge Current 100kA | ||
Series DVSB | ||
Length 72mm | ||
Depth 70mm | ||
Height 90mm | ||
Dimensions 72 x 70 x 90mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +80°C | ||
MOV Module, Roxborough EMC DVSB
Dual high-energy electrically isolated metal oxide varistors
Single and 3 phase line protection from surges and lightning
Modular design to snap-fit directly onto top hat profile DIN rails
Remote operation contacts for protection indication
Single and 3 phase line protection from surges and lightning
Modular design to snap-fit directly onto top hat profile DIN rails
Remote operation contacts for protection indication
Surge Protection Devices, SPDs (DIN-rail)
Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage spikes are usually caused by lightning strikes and can reach up to 6000V, with current surges of over 3000A. The maximum size of the let-through voltage and current inrush depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.
