Phoenix Contact, VAL Surge Arrester 230V ac Maximum Voltage Rating 40 kA Maximum Surge Current Surge Arrester
- RS Stock No.:
- 241-6066
- Distrelec Article No.:
- 303-10-595
- Mfr. Part No.:
- 2839127
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£69.23
(exc. VAT)
£83.08
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 20 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £69.23 |
*price indicative
- RS Stock No.:
- 241-6066
- Distrelec Article No.:
- 303-10-595
- Mfr. Part No.:
- 2839127
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Surge Arrester | |
| Suppressor Type | Surge Arrester | |
| Maximum Voltage | 230V ac | |
| Mount Type | DIN Rail | |
| Maximum Surge Current | 40kA | |
| Packaging | 1 pieces | |
| Series | VAL | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 89.8mm | |
| Depth | 65.7mm | |
| Standards/Approvals | IEC 61643-11:2011/EN 61643-11:2012 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Surge Arrester | ||
Suppressor Type Surge Arrester | ||
Maximum Voltage 230V ac | ||
Mount Type DIN Rail | ||
Maximum Surge Current 40kA | ||
Packaging 1 pieces | ||
Series VAL | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Height 89.8mm | ||
Depth 65.7mm | ||
Standards/Approvals IEC 61643-11:2011/EN 61643-11:2012 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE

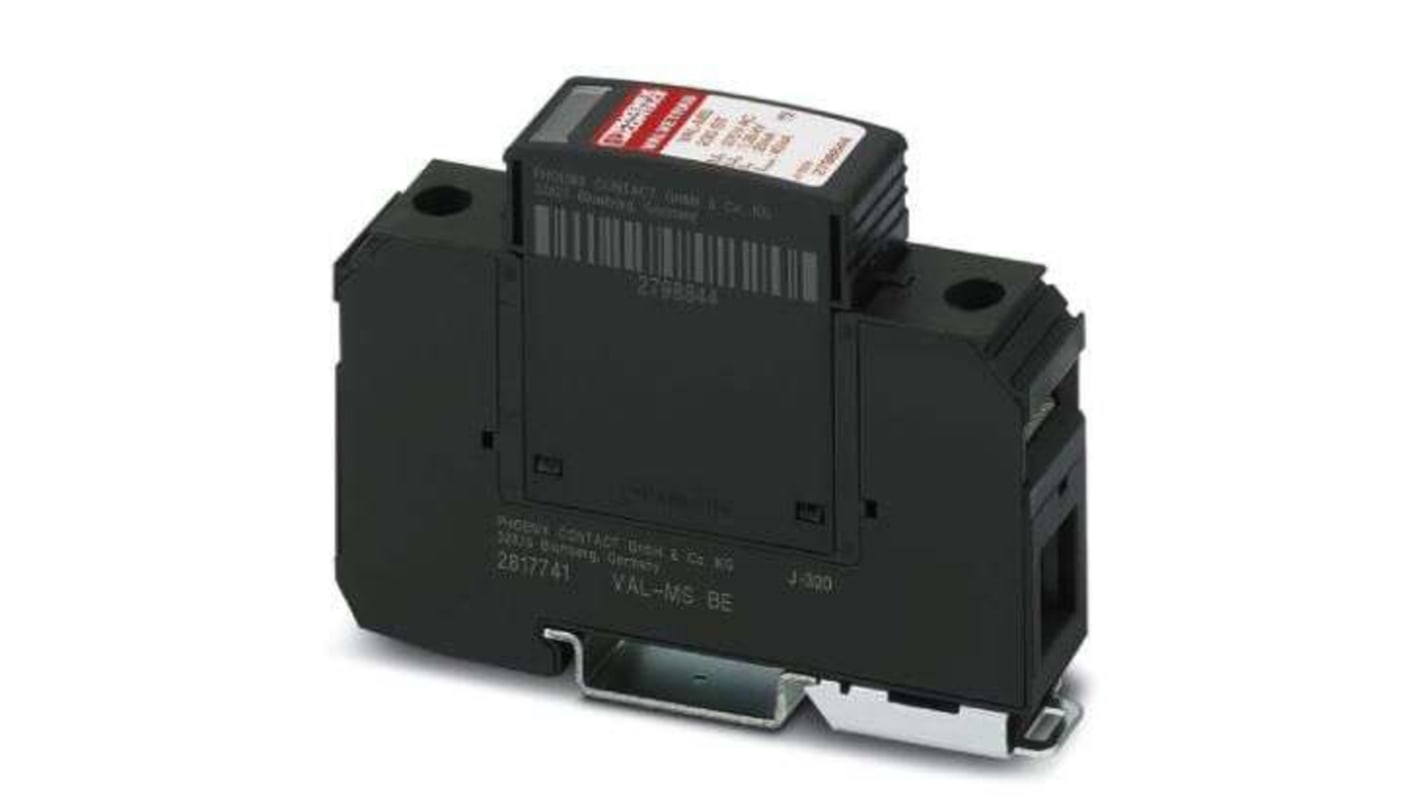

The Phoenix Contact's surge voltage arrester consisting of base element and ground connector with high-capacity varistor
Connection method screw connection
Screw thread M5
Nominal frequency fN 50 Hz (60 Hz)
Width 17.6 mm
Height 89.8 mm
Depth 65.7 mm
Stripping length 16 mm
