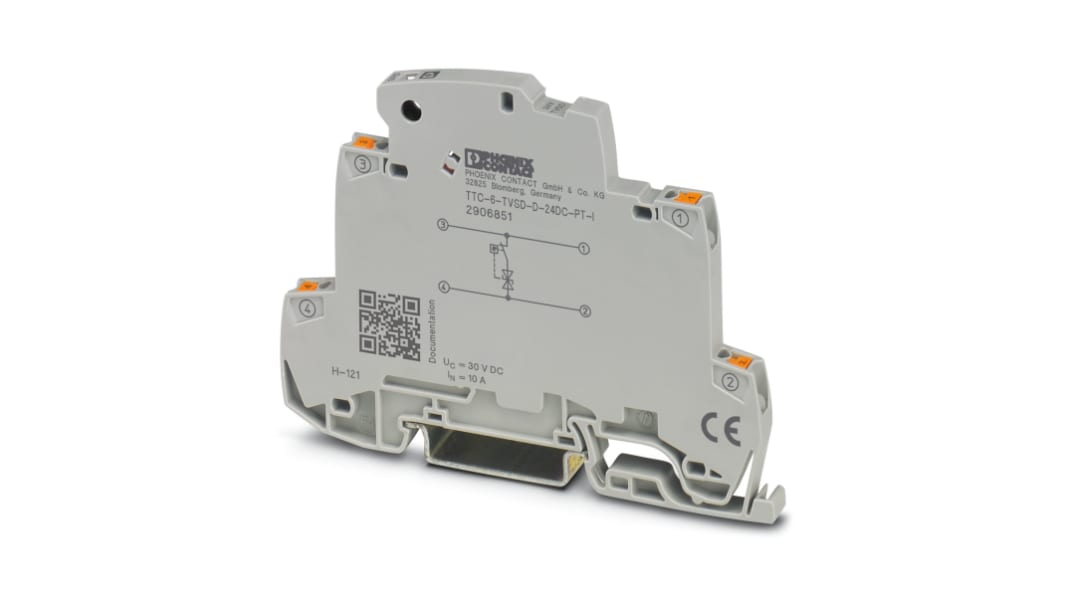

Phoenix Contact, TTC-6-TVSD-D-24DC-PT-I Surge Protector 30 V dc Maximum Voltage Rating Surge Protection Device
- RS Stock No.:
- 135-7121
- Distrelec Article No.:
- 303-10-613
- Mfr. Part No.:
- 2906851
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£16.84
(exc. VAT)
£20.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £16.84 |
10 - 24 | £15.51 |
25 - 49 | £14.98 |
50 - 99 | £14.24 |
100 + | £13.54 |
*price indicative
- RS Stock No.:
- 135-7121
- Distrelec Article No.:
- 303-10-613
- Mfr. Part No.:
- 2906851
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Suppressor Type | Surge Protection Device | |
Maximum Voltage Rating | 30 V dc | |
Mounting Type | DIN Rail | |
Series | TTC-6-TVSD-D-24DC-PT-I | |
Length | 69.5mm | |
Depth | 6.2mm | |
Height | 92mm | |
Dimensions | 69.5 x 6.2 x 92mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Suppressor Type Surge Protection Device | ||
Maximum Voltage Rating 30 V dc | ||
Mounting Type DIN Rail | ||
Series TTC-6-TVSD-D-24DC-PT-I | ||
Length 69.5mm | ||
Depth 6.2mm | ||
Height 92mm | ||
Dimensions 69.5 x 6.2 x 92mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- DE
Phoenix Contact TTC-6-TVSD-D-24DC-PT-I Series Surge Protector, 30V DC Maximum Voltage Rating, 69.5x6.2x92mm - 2906851
This is a state-of-the-art surge protection device designed specifically for MCR technology. With an impressively compact form factor, measuring just 6 mm in width, it ensures efficient space utilisation while providing robust protection. This device features continuous monitoring and a mechanical status indicator, making it ideal for applications requiring reliable operation. With its ability to safeguard safety-related circuits up to SIL 3, it presents an exceptional choice for environments that demand high standards of safety and performance. Enhanced by its IP20 rating, the device is capable of operating under challenging conditions, ensuring durability and longevity in the field.
Features & Benefits
• Monitors protective devices continuously for enhanced reliability
• Optical surge protection fault indication for quick diagnostics
• Supports safety-related circuits up to SIL 3 standards
• Flexible connection options for various conductor sizes
• Optical surge protection fault indication for quick diagnostics
• Supports safety-related circuits up to SIL 3 standards
• Flexible connection options for various conductor sizes
Applications
• Employed in safety-related control circuits
• Utilised in automation systems for reliable surge protection
• Suitable for electronic equipment requiring voltage surge suppression
• Ideal for industrial environments subject to electrical disturbances
• Utilised in automation systems for reliable surge protection
• Suitable for electronic equipment requiring voltage surge suppression
• Ideal for industrial environments subject to electrical disturbances
Can it operate in extreme temperatures?
Yes, it functions effectively from -40°C to +85°C.
Will it provide continuous monitoring of connected devices?
Yes, it features continuous monitoring with optical indicators.
Is it suitable for DIN rail installation?
Yes, it is designed specifically for DIN rail mounting.
Can it be used with various conductor sizes?
Yes, it accommodates flexible and rigid conductors of multiple sizes.
Is this device capable of handling high voltage surges?
Yes, it is rated for handling surges up to 30V DC.
Surge Protection Devices, SPDs (DIN-rail)
Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage spikes are usually caused by lightning strikes and can reach up to 6000V, with current surges of over 3000A. The maximum size of the let-through voltage and current inrush depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.
