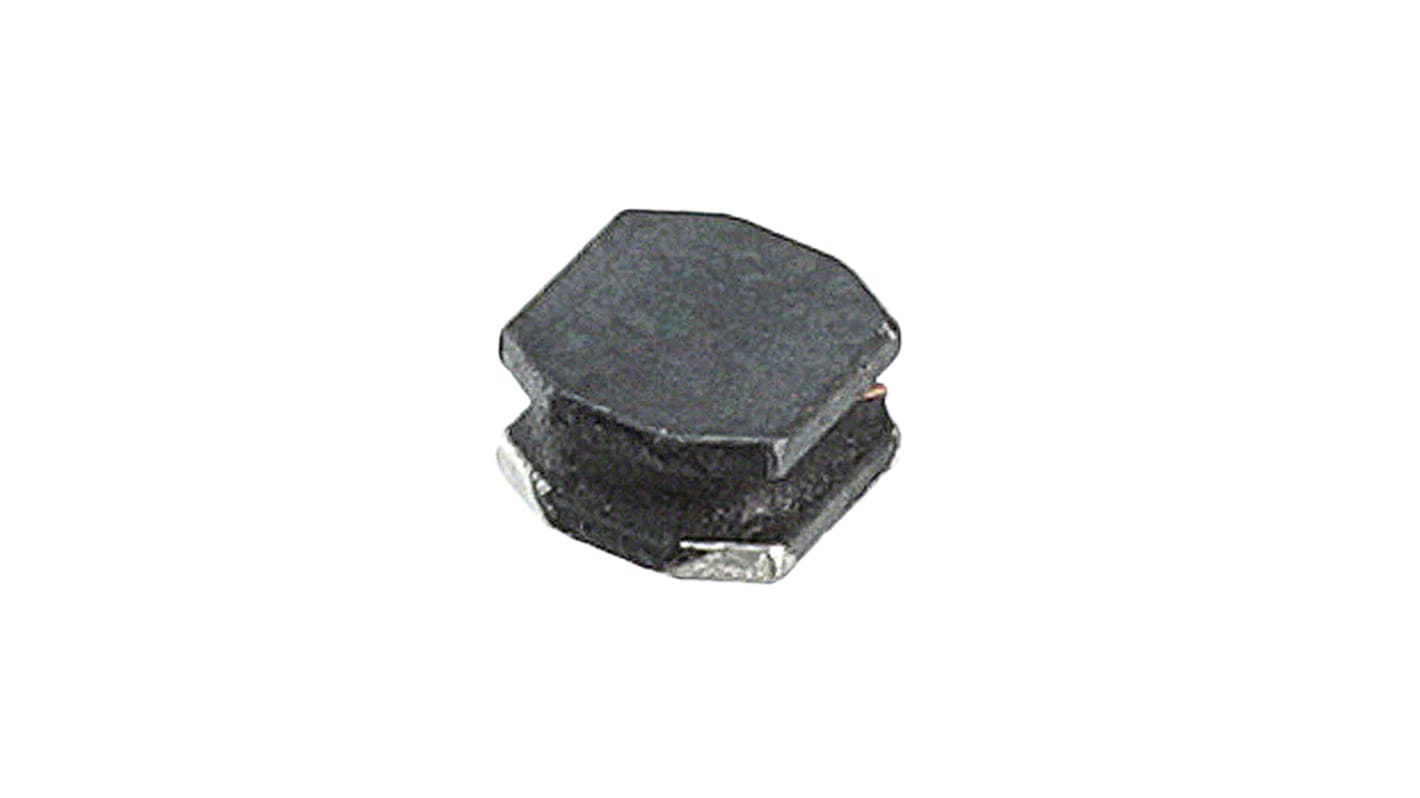

TDK, VLS-E, 2012 Shielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH Wire-Wound 700mA Idc
- RS Stock No.:
- 903-9577
- Mfr. Part No.:
- VLS2012ET-4R7M
- Brand:
- TDK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 903-9577
- Mfr. Part No.:
- VLS2012ET-4R7M
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 4.7 μH | |
| Maximum DC Current | 700mA | |
| Package/Case | 2012 | |
| Length | 2mm | |
| Depth | 1.6mm | |
| Height | 0.95mm | |
| Dimensions | 2 x 1.6 x 0.95mm | |
| Shielded | Yes | |
| Maximum DC Resistance | 336mΩ | |
| Series | VLS-E | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 1MHz | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Inductor Construction | Wire-Wound | |
Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 4.7 μH | ||
Maximum DC Current 700mA | ||
Package/Case 2012 | ||
Length 2mm | ||
Depth 1.6mm | ||
Height 0.95mm | ||
Dimensions 2 x 1.6 x 0.95mm | ||
Shielded Yes | ||
Maximum DC Resistance 336mΩ | ||
Series VLS-E | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 1MHz | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Inductor Construction Wire-Wound | ||
VLS2012E Series Magnetically Shielded Wire Wound Inductors
VLS2010E Series have a high magnetic shield construction and compatible with high-density mounting
Low-profile product line-up with maximum heights of 0.8mm, 0.95mm, 1.0mm, 1.2mm, and 1.5mm allowing for different usages
Applications in Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices and compact power supply modules
Applications in Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices and compact power supply modules
