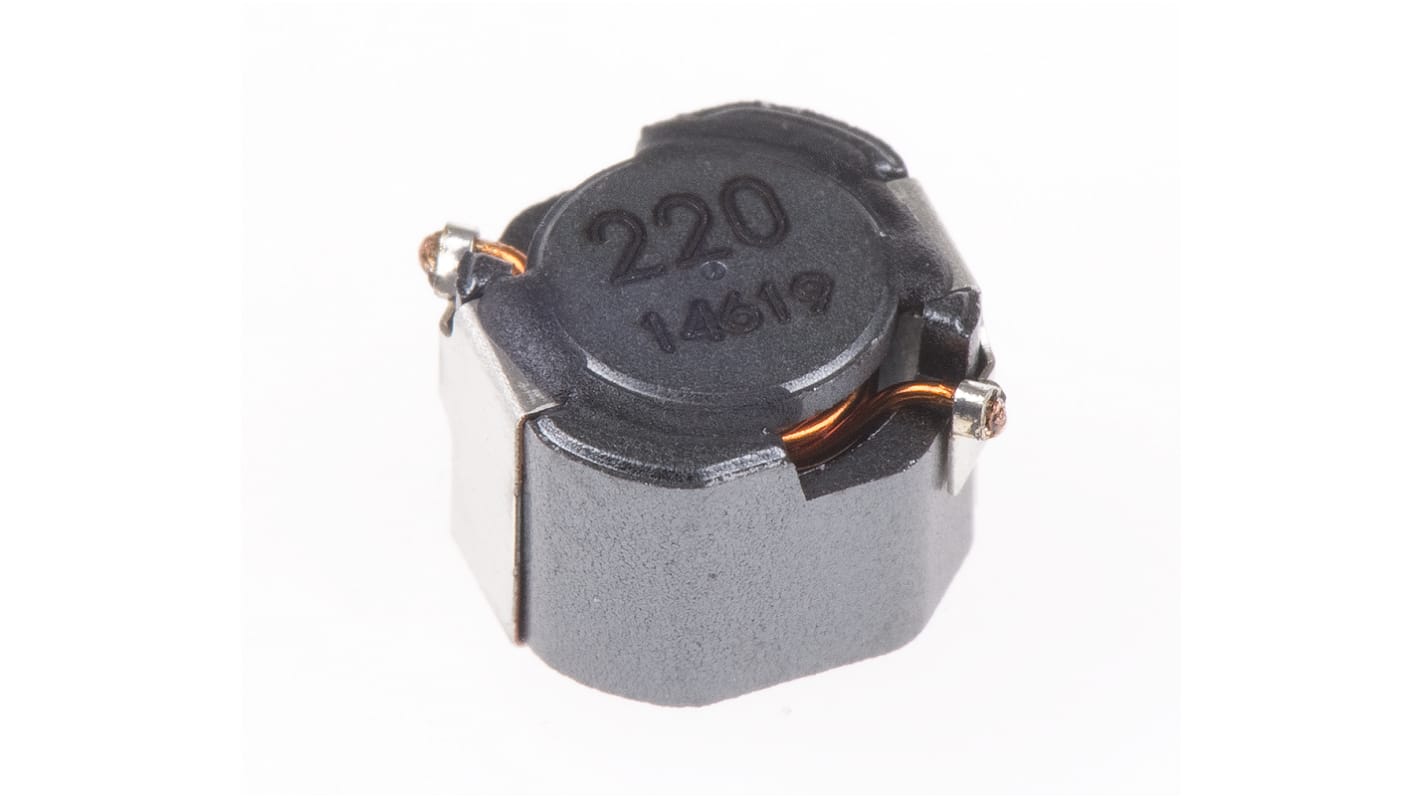

TDK, CLF, 6045 Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound 1.7A Idc
- RS Stock No.:
- 795-8347
- Mfr. Part No.:
- CLF6045T-220M-D
- Brand:
- TDK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2.21
(exc. VAT)
£2.65
(inc. VAT)
- RS Stock No.:
- 795-8347
- Mfr. Part No.:
- CLF6045T-220M-D
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 22 μH | |
| Maximum DC Current | 1.7A | |
| Package/Case | 6045 | |
| Length | 6.2mm | |
| Depth | 5.9mm | |
| Height | 4.5mm | |
| Dimensions | 6.2 x 5.9 x 4.5mm | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 78mΩ | |
| Series | CLF | |
| Core Material | Ferrite | |
| Inductor Construction | Wire-Wound | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 22 μH | ||
Maximum DC Current 1.7A | ||
Package/Case 6045 | ||
Length 6.2mm | ||
Depth 5.9mm | ||
Height 4.5mm | ||
Dimensions 6.2 x 5.9 x 4.5mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 78mΩ | ||
Series CLF | ||
Core Material Ferrite | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- CN
SMD Power Inductors - CLF6045-D Series
CLF6045-D series are highly magnetically shielded
EMC Protection
CLF6045-D series have heat and vibration mechanical shock resistance which offers the ability to endure in automobile use
Generic use in Automotive Appliance (ECM, HID, SRS Air Bag, transmission control, Power steering control, and Brake control) and high temperature operation devices
EMC Protection
CLF6045-D series have heat and vibration mechanical shock resistance which offers the ability to endure in automobile use
Generic use in Automotive Appliance (ECM, HID, SRS Air Bag, transmission control, Power steering control, and Brake control) and high temperature operation devices
Warning
Not Recommended for New Design. TDK recommend 1247810
