Wurth, WE-PD SMT Shielded Wire-wound SMD Inductor 1000 μH 20% 600mA Idc
- RS Stock No.:
- 217-7387P
- Mfr. Part No.:
- 7447706102
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£41.20
(exc. VAT)
£49.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 55 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | £0.824 |
| 100 - 245 | £0.756 |
| 250 + | £0.684 |
*price indicative
- RS Stock No.:
- 217-7387P
- Mfr. Part No.:
- 7447706102
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1000 μH | |
| Maximum DC Current | 600mA | |
| Length | 12mm | |
| Depth | 12mm | |
| Shielded | Yes | |
| Tolerance | 20% | |
| Series | WE-PD SMT | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1000 μH | ||
Maximum DC Current 600mA | ||
Length 12mm | ||
Depth 12mm | ||
Shielded Yes | ||
Tolerance 20% | ||
Series WE-PD SMT | ||
- COO (Country of Origin):
- CN

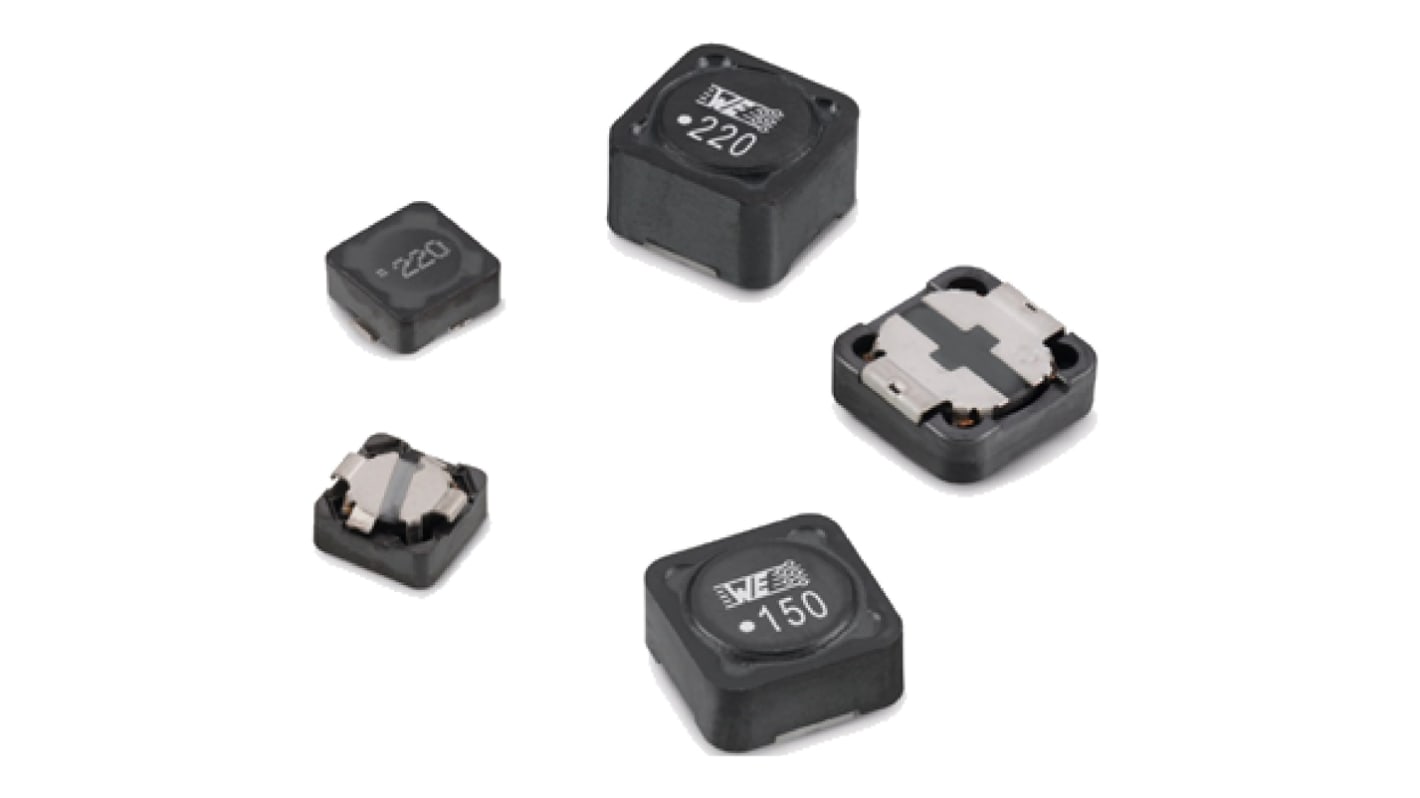

The Wurth Elektronik WE-PD SMT power inductor has 1000μH inductance. The product is use switch mode power supplies from 0.1 W up to 300 W and integrated DC/DC converter. It has operating temperature ranges between -40°C to +125°C.
AEC-Q 200 qualified
Ultra low RDC and RAC
Highest possible saturation current based on ferrite
Suitable for switching frequency up to 10 MHz
Temperature dependent parameter available on Redexpert
Operating temperature -40 °C to +125 °C / +150 °C
Ultra low RDC and RAC
Highest possible saturation current based on ferrite
Suitable for switching frequency up to 10 MHz
Temperature dependent parameter available on Redexpert
Operating temperature -40 °C to +125 °C / +150 °C
