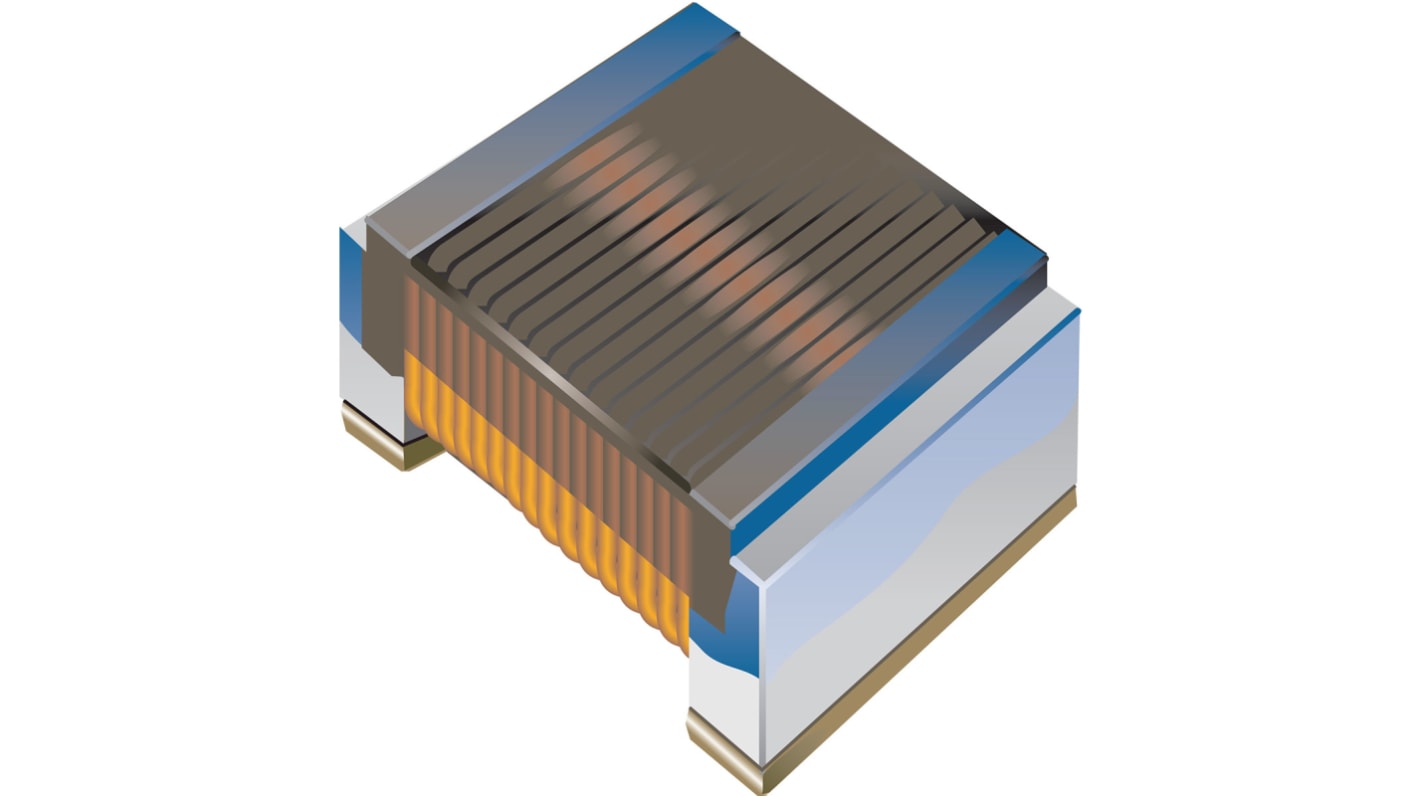

Bourns, CW105550A, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 30 nH ±5% Wire-Wound 400mA Idc

View all Surface Mount Inductors

Subtotal (1 reel of 100 units)*

£6.70

(exc. VAT)

£8.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 300 unit(s) ready to ship
  • Plus 999,999,600 unit(s) shipping from 03 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
100 +£0.067£6.70

*price indicative

Packaging Options:
RS Stock No.:
183-8636
Mfr. Part No.:
CW105550A-30NJ
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Inductance

30 nH

Maximum DC Current

400mA

Package/Case

0402 (1005M)

Length

1mm

Automotive Standard

AEC-Q200

Depth

0.55mm

Height

0.5mm

Dimensions

1 x 0.55 x 0.5mm

Shielded

No

Tolerance

±5%

Maximum DC Resistance

300mΩ

Series

CW105550A

Core Material

Ceramic

Maximum Self Resonant Frequency

2.35GHz

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+125°C

Inductor Construction

Wire-Wound

Minimum Quality Factor

25

COO (Country of Origin):
MY
Ceramic core provides stable electrical characteristics
High self-resonant frequency
Halogen free
