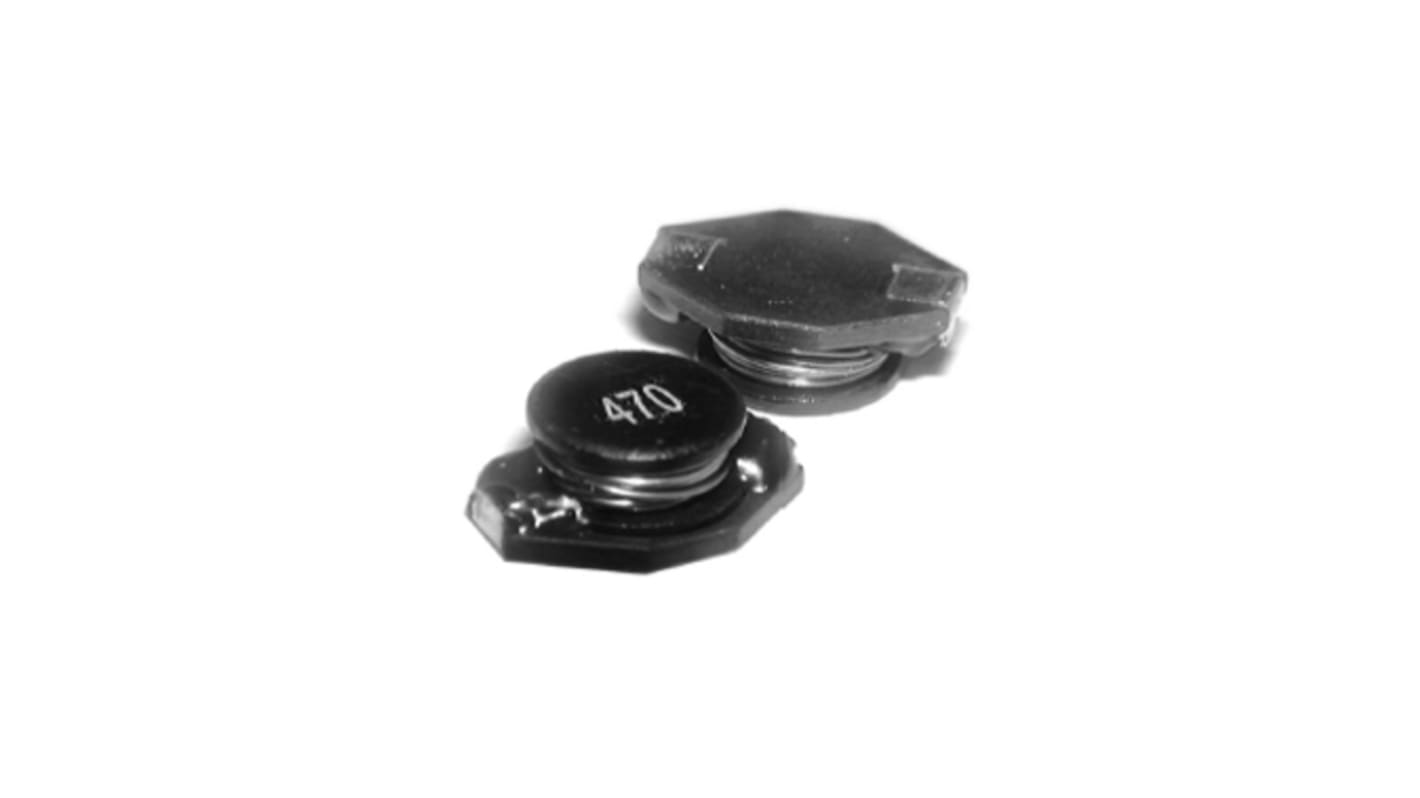

RS PRO, 31 Unshielded Wire-wound SMD Inductor ±150 μH ±20% Unshielded 1A Idc
- RS Stock No.:
- 124-5575
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 124-5575
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inductance | ±150 μH | |
| Maximum DC Current | 1A | |
| Package/Case | 31 | |
| Length | 12.8mm | |
| Depth | 9.3mm | |
| Height | 5mm | |
| Dimensions | 12.8 x 9.3 x 5mm | |
| Shielded | No | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 400mΩ | |
| Maximum Self Resonant Frequency | 6.5MHz | |
| Maximum Operating Temperature | +85°C | |
| Inductor Construction | Unshielded | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Inductance ±150 μH | ||
Maximum DC Current 1A | ||
Package/Case 31 | ||
Length 12.8mm | ||
Depth 9.3mm | ||
Height 5mm | ||
Dimensions 12.8 x 9.3 x 5mm | ||
Shielded No | ||
Tolerance ±20% | ||
Maximum DC Resistance 400mΩ | ||
Maximum Self Resonant Frequency 6.5MHz | ||
Maximum Operating Temperature +85°C | ||
Inductor Construction Unshielded | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
RS Pro Unshielded Power Inductors
This range of unshielded power inductors from our RS Pro brand are a compact solution. These power inductors feature high currents (up to 8.6 A) and high inductance (up to 1000 μH. Suitable for both flow and reflow soldering, applications include DC-DC converters.
High current (up to 8.6 Amps)
Compact design
Surface mountable construction
High inductance (up to 1000μh)
Compact design
Surface mountable construction
High inductance (up to 1000μh)
