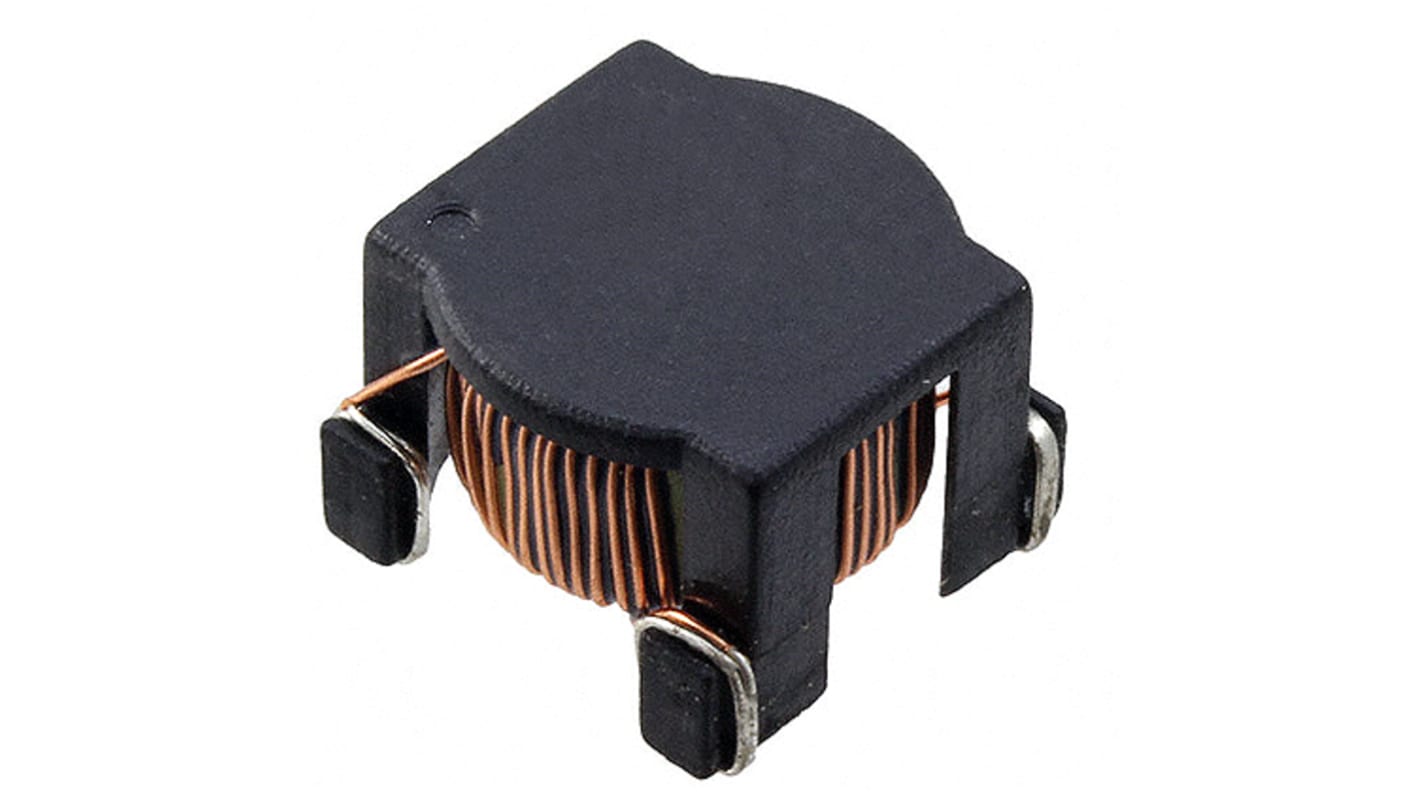

RS PRO Wire-wound SMD Inductor 10 μH ±15% Wire-Wound 3A Idc

View all Surface Mount Inductors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
104-8409
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Inductance

10 μH

Maximum DC Current

3A

Length

11mm

Depth

11mm

Height

6.8mm

Dimensions

11 x 11 x 6.8mm

Tolerance

±15%

Maximum DC Resistance

26mΩ

Series

LCP

Maximum Self Resonant Frequency

1MHz

Inductor Construction

Wire-Wound

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

Moulded

Yes

COO (Country of Origin):
IN

RS Pro Surface Mount Toroidal Inductors 10uf-220uf


RS Pro Surface mount toroidal inductors are excellent for filtering high frequency signals while supporting a substantial DC Current. These SMD inductors can be used in applications where energy storage is required for storage of a highly stable inductance when a rapid change in current occurs. The RS Pro chokes have an operating frequency to 1 MHz and include high energy storage with low saturation.

Applications


Common mode filter
DC-DC convertors
Step up, step down
Filtering battery powered equipment
Inverting or dual output

Standards

RoHS Compliant
SO-9001:2000
TS-16949:2002
ISO-14001:2004
