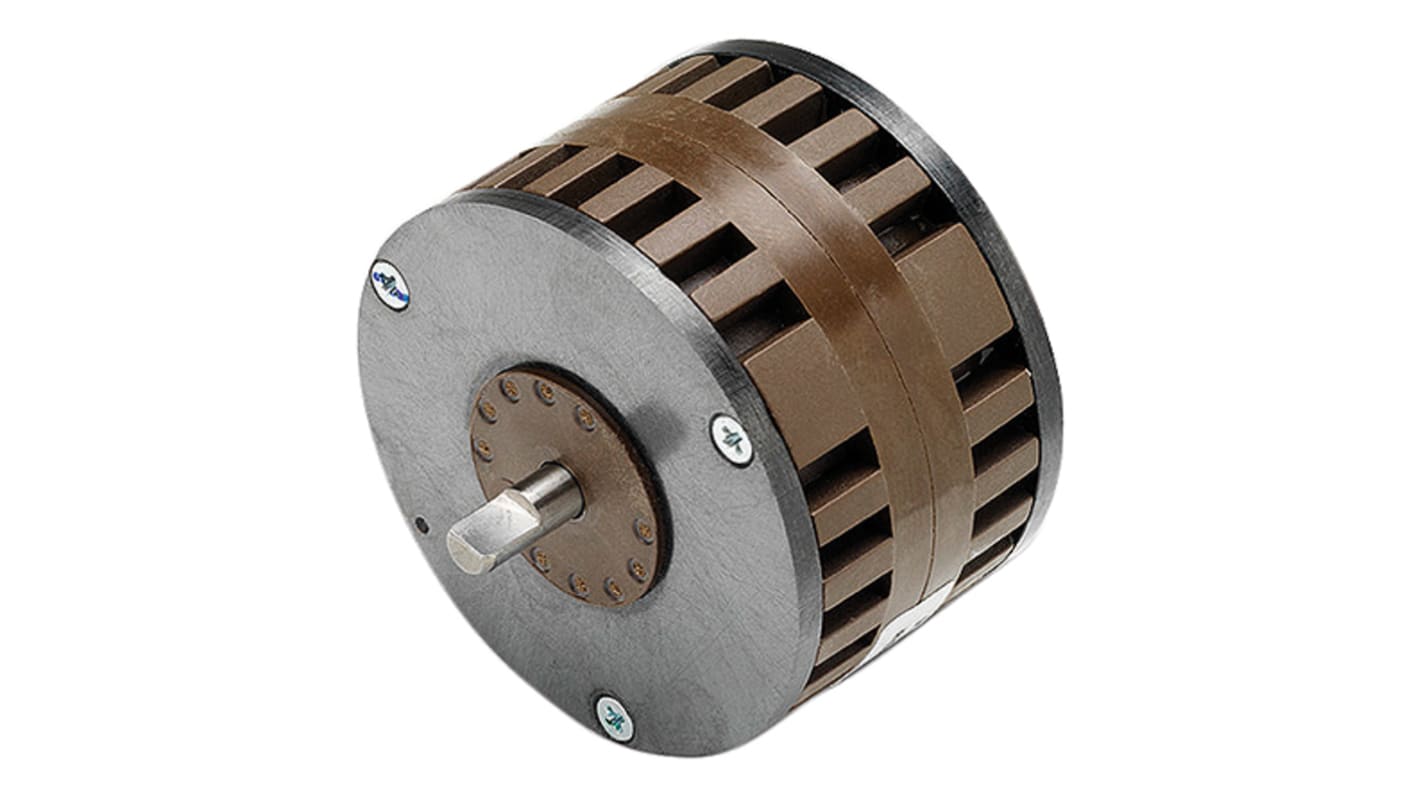

Portescap Parallel Disc Magnet Stepper Motor 3.6°, 0.36Nm, 2.3 A, 8 Wires

  • RS Stock No. 892-9186
  • Mfr. Part No. P532-258-0,7.10
  • Brand Portescap
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

Portescap Disk Magnet Stepper Motor

Portescap Disc Magnet Motors provide exceptional dynamic performance unparalleled by any other small diameter stepper in the market. The unique thin disc magnet enables finer step resolutions in a given envelope, significantly higher acceleration and greater top speed than conventional steppers. These high speed stepper motors excel in applications that require the precision of a stepper and the speed and acceleration of a brushless DC motor. Closing the loop provides a competitive advantage against a servo solution.

Features & Benefits

Precise, well-suited for microstepping Fastest acceleration and highest top speed
Low detent torque and highly customizable
Higher steps per revolution than similar diameter steppers

Applications

Clinical Diagnostics Motors for Medical Pipettes
Barcode scanners
Laser cutters

Portescap - Stepper Motors

Specifications
Attribute Value
Step Angle 3.6°
Holding Torque 0.36Nm
Number Of Wires 8
Frame Size 52 x 52mm
Stepper Motor Type Disc Magnet
Shaft Diameter 5mm
Current Rating 2.3 A
Winding Arrangement Parallel
Shaft Length 19.15mm
Depth 55mm
Number of Pole Pairs 1
Resistance Per Phase 0.4Ω
Standards Met RoHS Compliant
Detent Torque 28mNm
Available to back order for despatch 19/11/2020
Price Each
£ 201.56
(exc. VAT)
£ 241.87
(inc. VAT)
Units
Per unit
1 +
£201.56
