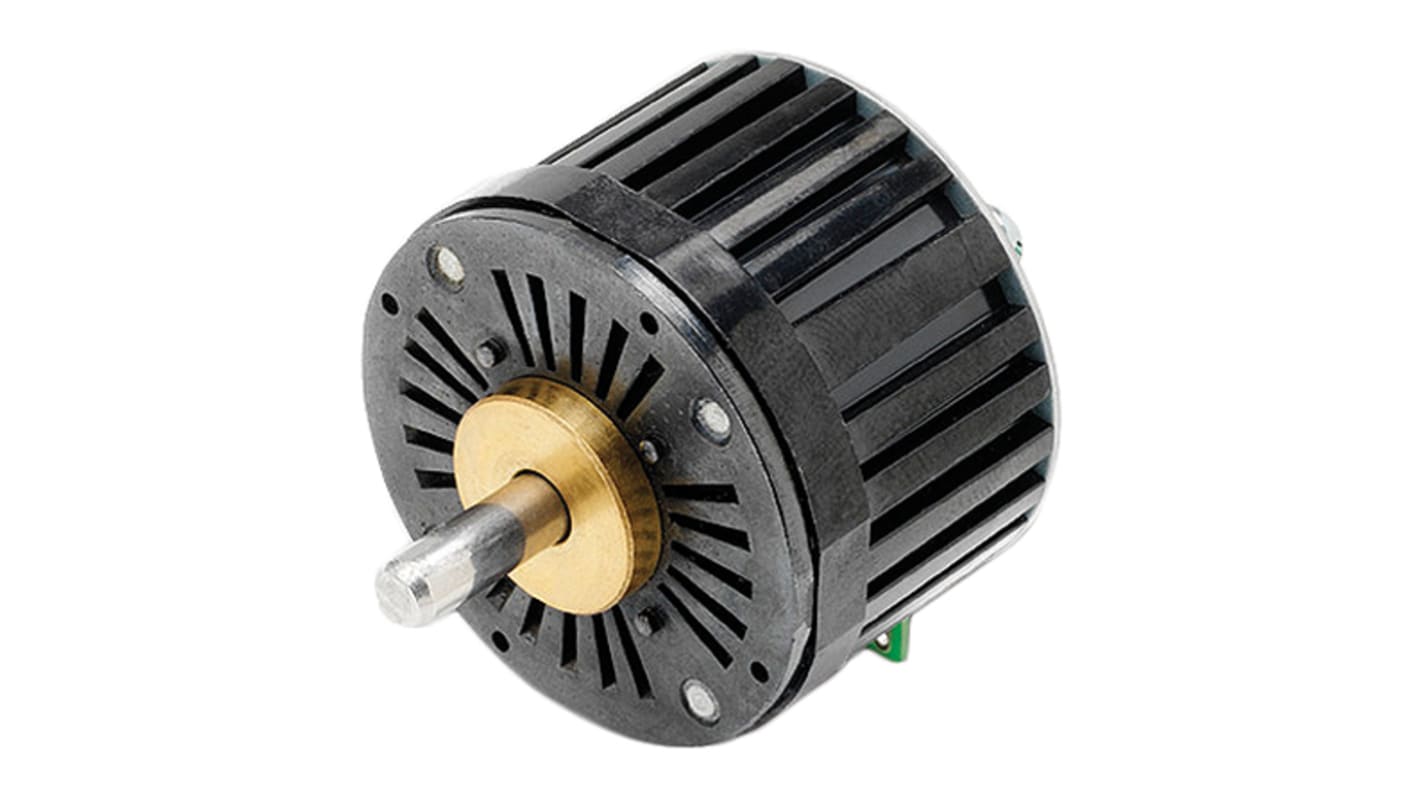

Portescap Series Disc Magnet Stepper Motor 3.6°, 90mNm, 560 mA, 8 Wires

  • RS Stock No. 892-9164
  • Mfr. Part No. 2011400034
  • Brand Portescap
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

Portescap Disk Magnet Stepper Motor

Portescap Disc Magnet Motors provide exceptional dynamic performance unparalleled by any other small diameter stepper in the market. The unique thin disc magnet enables finer step resolutions in a given envelope, significantly higher acceleration and greater top speed than conventional steppers. These high speed stepper motors excel in applications that require the precision of a stepper and the speed and acceleration of a brushless DC motor. Closing the loop provides a competitive advantage against a servo solution.

Features & Benefits

Precise, well-suited for microstepping Fastest acceleration and highest top speed
Low detent torque and highly customizable
Higher steps per revolution than similar diameter steppers

Applications

Clinical Diagnostics Motors for Medical Pipettes
Barcode scanners
Laser cutters

Portescap - Stepper Motors

Specifications
Attribute Value
Step Angle 3.6°
Holding Torque 90mNm
Number Of Wires 8
Frame Size 39 x 39mm
Stepper Motor Type Disc Magnet
Shaft Diameter 5mm
Current Rating 560 mA
Winding Arrangement Series
Shaft Length 20.5mm
Depth 49mm
Number of Pole Pairs 1
Resistance Per Phase 10Ω
Detent Torque 3.5mNm
Standards Met RoHS Compliant
43 In stock - FREE next working day delivery available
Price Each
£ 130.73
(exc. VAT)
£ 156.88
(inc. VAT)
Units
Per unit
1 +
£130.73
