Applied Motion Systems Dual Hybridge Stepper Motor 1.8°, 0.88Nm, 12 → 70 V dc, 5 A, 8 Wires

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

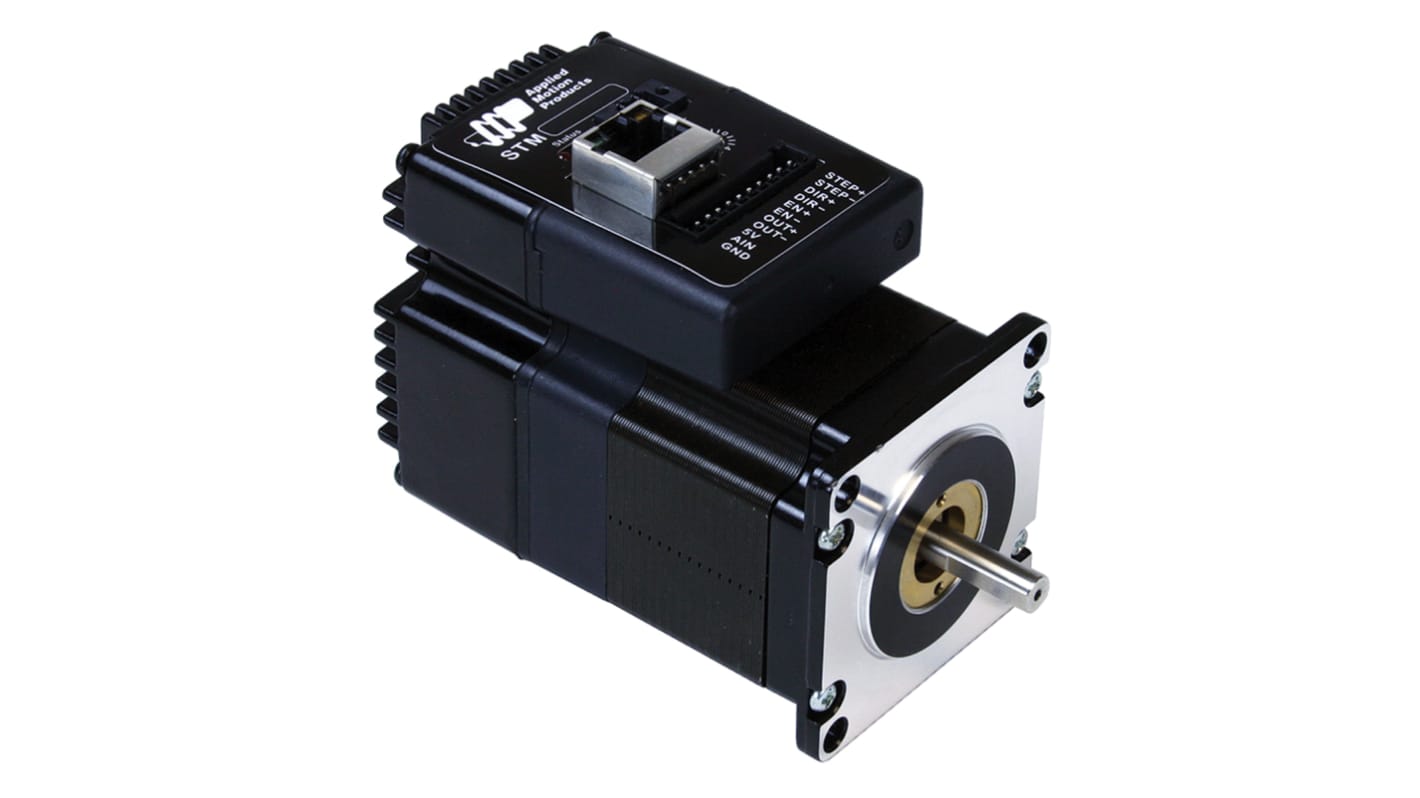

Integrated Steppers STM23IP

The STM23IP is an integrated Drive and Motor, fusing step motor and drive technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions.


Drive + Motor + Control in one unit
4 quadrant controller
Dynamic Current Control
Anti-Resonance
Torque Ripple Smoothing
Microstep Emulation
Stall Prevention/Detection
NEMA 23 frame size
Input voltage 12-70 Vdc
3 digital input, 1 analog input
1 digital output
Ethernet and Ethernet/IP interface
Encoder


Operation Mode:
Step and direction
CW/CCW pulse
A/B quadrature pulse
velocity (oscillator, joystick)
streaming commands (SCL)
SiNet Hub compatible
Executes stored Q programmes

Applied Motion Systems - Stepper Motor

Specifications
Attribute Value
Step Angle 1.8°
Holding Torque 0.88Nm
Number Of Wires 8
Voltage Rating 12 → 70 V dc
Frame Size 23mm
Stepper Motor Type Dual Hybridge
Shaft Diameter 6.35mm
Current Rating 5 A
Shaft Length 18.4mm
Depth 92.4mm
Series STM
Standards Met CE EN61800-3:2004, RoHS Compliant
Output Speed 200 → 51200 spm
Available to back order for despatch 11/02/2020
Price Each
£ 572.23
(exc. VAT)
£ 686.68
(inc. VAT)
Units
Per unit
1 +
£572.23
