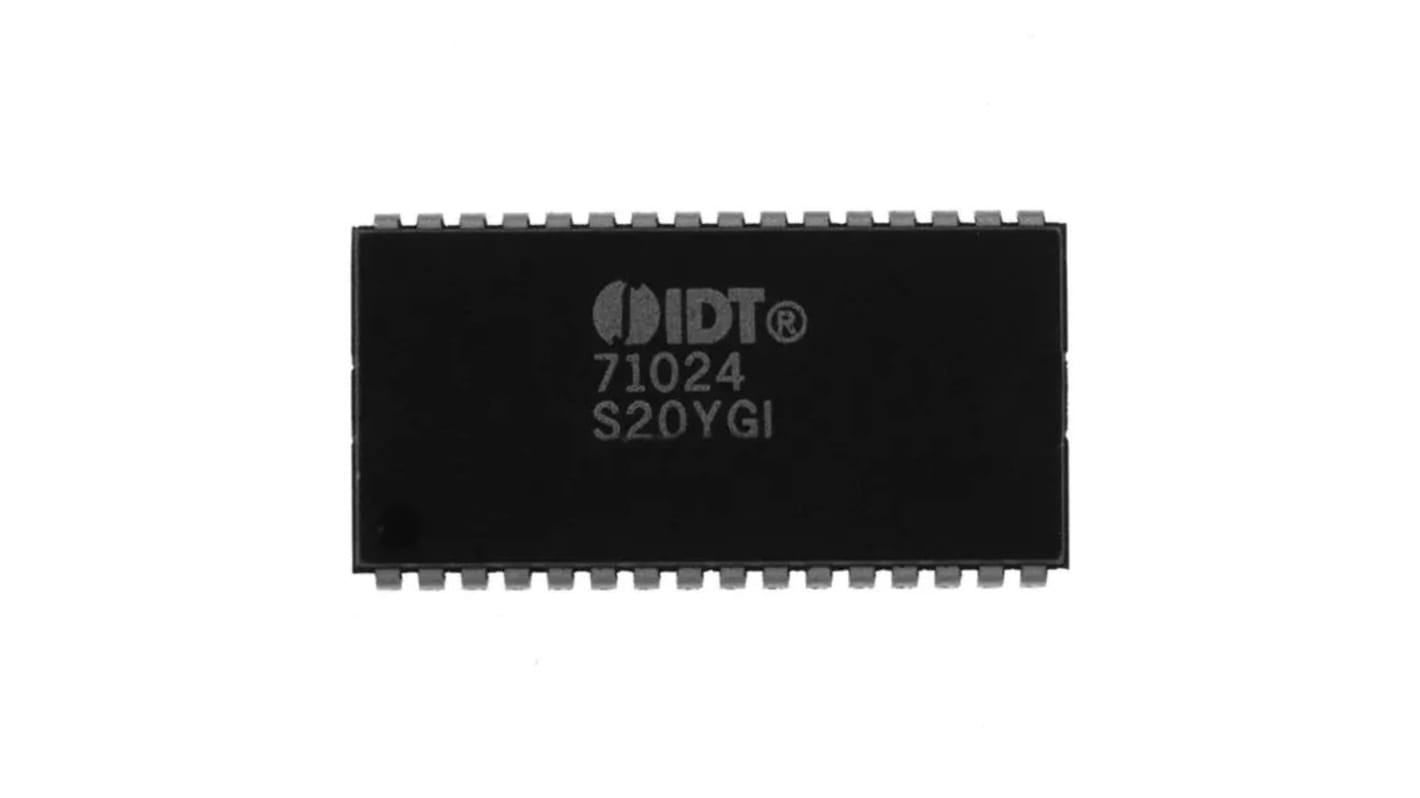

Renesas Electronics SRAM, 71024S20YGI- 1024kbit
- RS Stock No.:
- 217-3671
- Mfr. Part No.:
- 71024S20YGI
- Brand:
- Renesas Electronics
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 217-3671
- Mfr. Part No.:
- 71024S20YGI
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Memory Size | 1024kbit | |
| Organisation | 128K x 8 | |
| Number of Words | 128K | |
| Number of Bits per Word | 8bit | |
| Maximum Random Access Time | 20ns | |
| Package Type | 32-pin SOJ | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Memory Size 1024kbit | ||
Organisation 128K x 8 | ||
Number of Words 128K | ||
Number of Bits per Word 8bit | ||
Maximum Random Access Time 20ns | ||
Package Type 32-pin SOJ | ||
The Renesas Electronics 71024 series 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. It has 32 lead count and has SOJ package type. The SRAM has I temperature grade.
Commercial operating temperature 0 C to +70 C, Industrial operating temperature –40 C to +85 C
Equal access and cycle times - Commercial and Industrial: 12/15/20ns
Two chip selects plus one output enable pin
Bidirectional inputs and outputs directly TTL-compatible
Equal access and cycle times - Commercial and Industrial: 12/15/20ns
Two chip selects plus one output enable pin
Bidirectional inputs and outputs directly TTL-compatible
