Renesas Electronics SRAM, 71024S20YGI- 1024kbit
- RS Stock No.:
- 217-3670
- Mfr. Part No.:
- 71024S20YGI
- Brand:
- Renesas Electronics
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Tube of 23)
£2.578
(exc. VAT)
£3.094
(inc. VAT)
| Units | Per unit | Per Tube* |
| 23 - 92 | £2.578 | £59.294 |
| 115 - 230 | £2.31 | £53.13 |
| 253 - 483 | £2.297 | £52.831 |
| 506 - 989 | £2.207 | £50.761 |
| 1012 + | £2.096 | £48.208 |
| *price indicative | ||
- RS Stock No.:
- 217-3670
- Mfr. Part No.:
- 71024S20YGI
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details

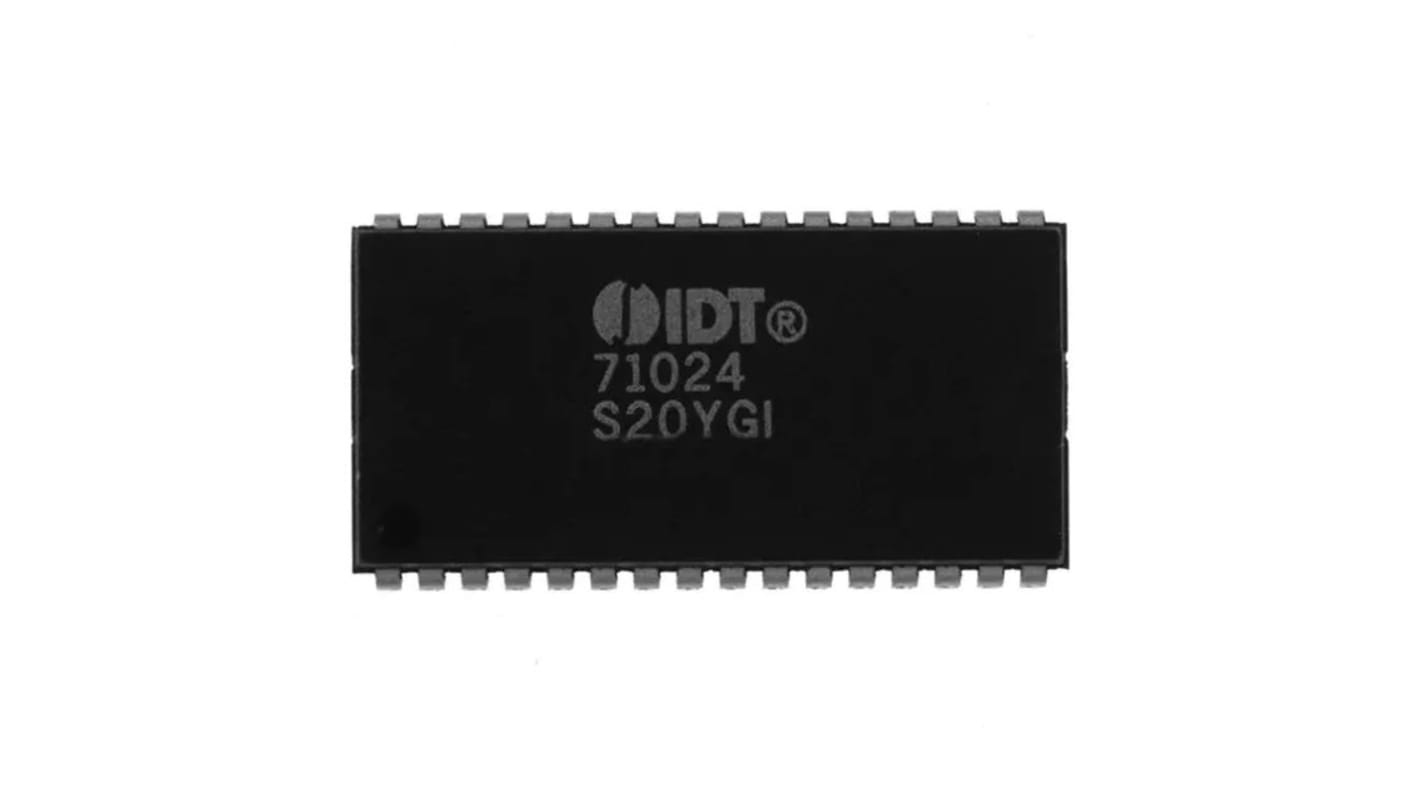

The Renesas Electronics 71024 series 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. It has 32 lead count and has SOJ package type. The SRAM has I temperature grade.
Commercial operating temperature 0 C to +70 C, Industrial operating temperature –40 C to +85 C
Equal access and cycle times - Commercial and Industrial: 12/15/20ns
Two chip selects plus one output enable pin
Bidirectional inputs and outputs directly TTL-compatible
Equal access and cycle times - Commercial and Industrial: 12/15/20ns
Two chip selects plus one output enable pin
Bidirectional inputs and outputs directly TTL-compatible
Specifications
Attribute | Value |
|---|---|
| Memory Size | 1024kbit |
| Organisation | 128K x 8 |
| Number of Words | 128K |
| Number of Bits per Word | 8bit |
| Maximum Random Access Time | 20ns |
| Package Type | 32-pin SOJ |
