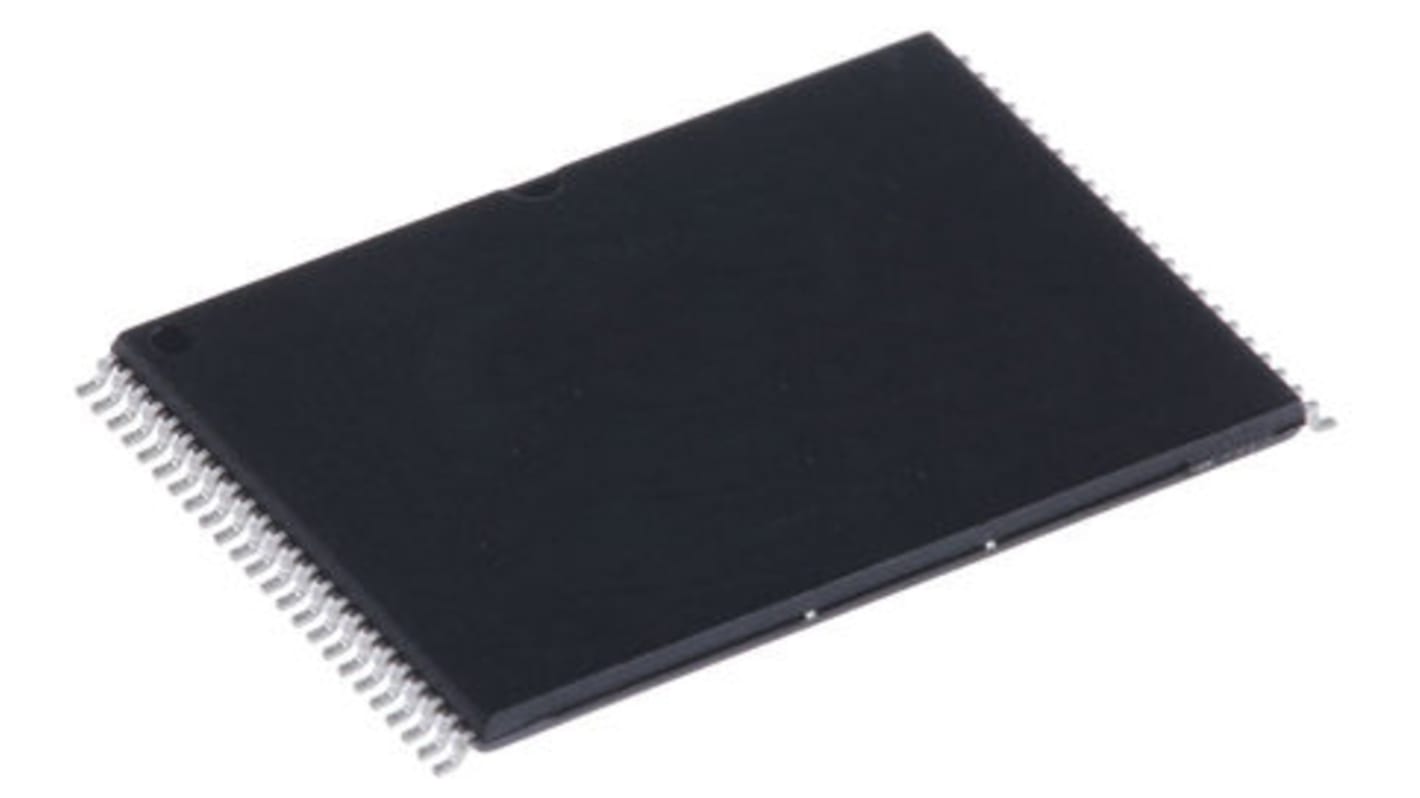

Renesas Electronics SRAM, RMLV0816BGSA-4S2#AA0- 8Mbit
- RS Stock No.:
- 126-6982
- Mfr. Part No.:
- RMLV0816BGSA-4S2#AA0
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 126-6982
- Mfr. Part No.:
- RMLV0816BGSA-4S2#AA0
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Memory Size | 8Mbit | |
| Organisation | 1024K words x 8 bit, 512K words x 16 bit | |
| Number of Words | 1024K, 512K | |
| Number of Bits per Word | 8 bit, 16 bit | |
| Maximum Random Access Time | 45ns | |
| Address Bus Width | 18 bit, 19 bit | |
| Low Power | Yes | |
| Mounting Type | Surface Mount | |
| Package Type | TSOP | |
| Pin Count | 48 | |
| Dimensions | 18.5 x 12.1 x 1.05mm | |
| Height | 1.05mm | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Length | 18.5mm | |
| Maximum Operating Temperature | +85 °C | |
| Width | 12.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Operating Supply Voltage | 2.7 V | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Memory Size 8Mbit | ||
Organisation 1024K words x 8 bit, 512K words x 16 bit | ||
Number of Words 1024K, 512K | ||
Number of Bits per Word 8 bit, 16 bit | ||
Maximum Random Access Time 45ns | ||
Address Bus Width 18 bit, 19 bit | ||
Low Power Yes | ||
Mounting Type Surface Mount | ||
Package Type TSOP | ||
Pin Count 48 | ||
Dimensions 18.5 x 12.1 x 1.05mm | ||
Height 1.05mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Length 18.5mm | ||
Maximum Operating Temperature +85 °C | ||
Width 12.1mm | ||
Minimum Operating Temperature -40 °C | ||
Minimum Operating Supply Voltage 2.7 V | ||
Low Power SRAM, RMLV Series, Renesas Electronics
The RMLV Series of high performance advanced static RAMs has realized higher density, low current consumption, and offers low power standby power dissipation.
Single 2.7V to 3.6V power supply
Access time: 45ns (max.)
Equal access and cycle times
Common data input and output with three state output
All inputs and outputs are TTL compatible
Suitable for battery backup operation
Access time: 45ns (max.)
Equal access and cycle times
Common data input and output with three state output
All inputs and outputs are TTL compatible
Suitable for battery backup operation
SRAM (Static Random Access Memory)
