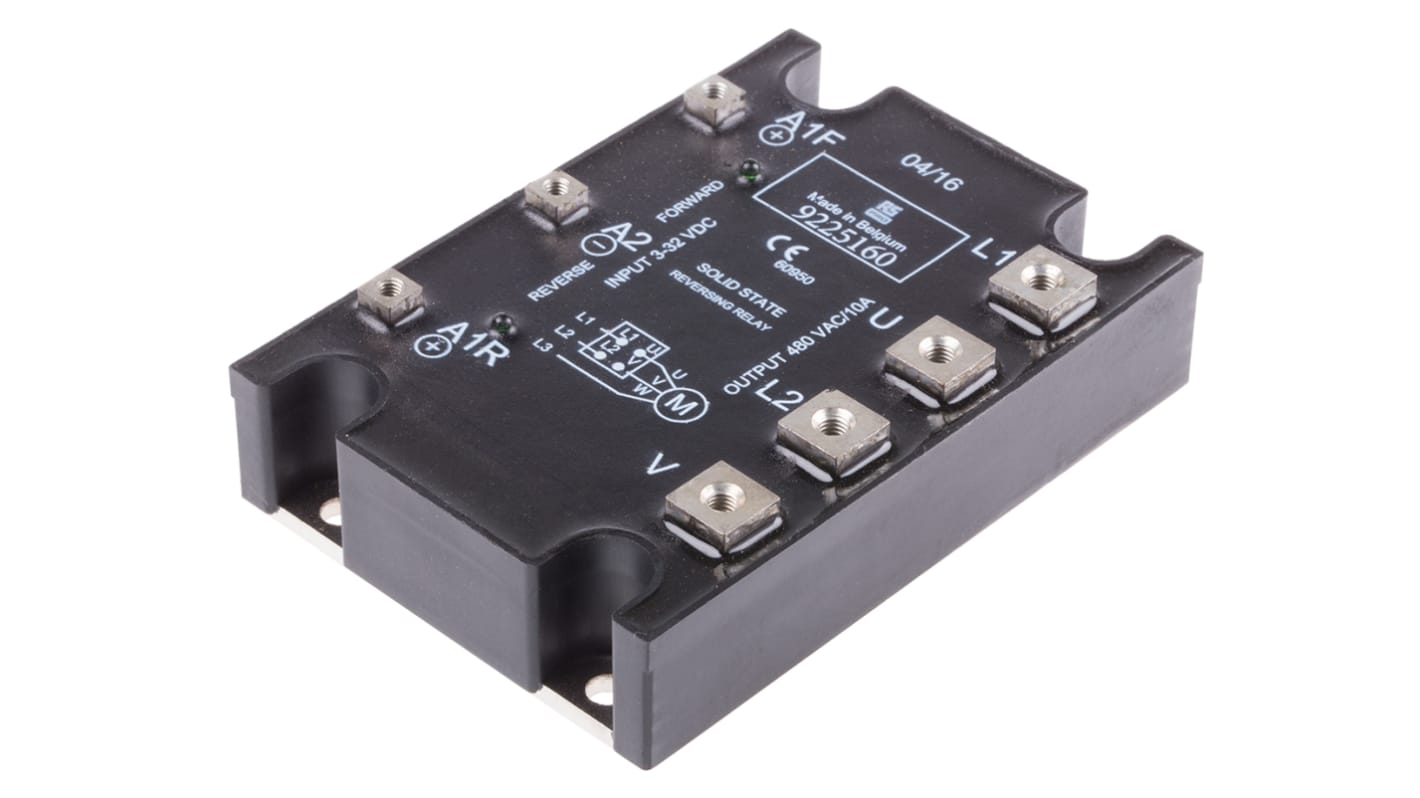

RS PRO Solid State Relay, 10 A rms Load, Panel Mount, 480 V ac Load, 32 V dc Control

View all Solid State Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Solid State Relay, 10 Amps Load, Panel Mount, Surface Mount, 480 V rms Load
RS Stock No.
253-7299

Each

£124.39

(exc. VAT)

£149.27

(inc. VAT)

RS Stock No.:
922-5160
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Load Current

10 A rms

Mounting Type

Panel Mount

Maximum Load Voltage

480 V ac

Minimum Load Voltage

48 V ac

Minimum Control Voltage

3 V dc

Maximum Control Voltage

32 V dc

Switching Type

Random

Control Voltage Range

3 → 32 V dc

Minimum Load Current

0.1 A

Terminal Type

Screw

Output Device

Thyristor

Relay Type

AC

Maximum Turn On Time

6ms

Load Voltage Range

48 → 480V ac

Dimensions

107 x 73.5 x 27mm

Height

27mm

Off State Leakage Current

10 mA

Length

107mm

Operating Temperature Range

-20 → +80°C

Special Features

A Built-In Interlocking Circuit with A Typical Change Over Switching Time 60 +/-20ms Prevents Simultaneous Switching-On of Forward and Reverse Functions and Prevents A Short Circuit Between Two Phases, A LED Indicates The Forward and Reverse Function, Maxi Puck Housing, Panel Mounted

Standards Met

CE

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+80°C

Depth

73.5mm

COO (Country of Origin):
BE

RS Pro WG A0 Series Motor Reversing SSR


RS Pro WG A0 series zero switching solid state relays provide the user with a compact solution without compromising on performance or reliability. Designed to switch inductive loads like electric motors and valves as well as resistive loads like heaters and lamps.

Zero cross switching
Hockey Puck Housing
Panel Mounted
AC Loads
AC Input
