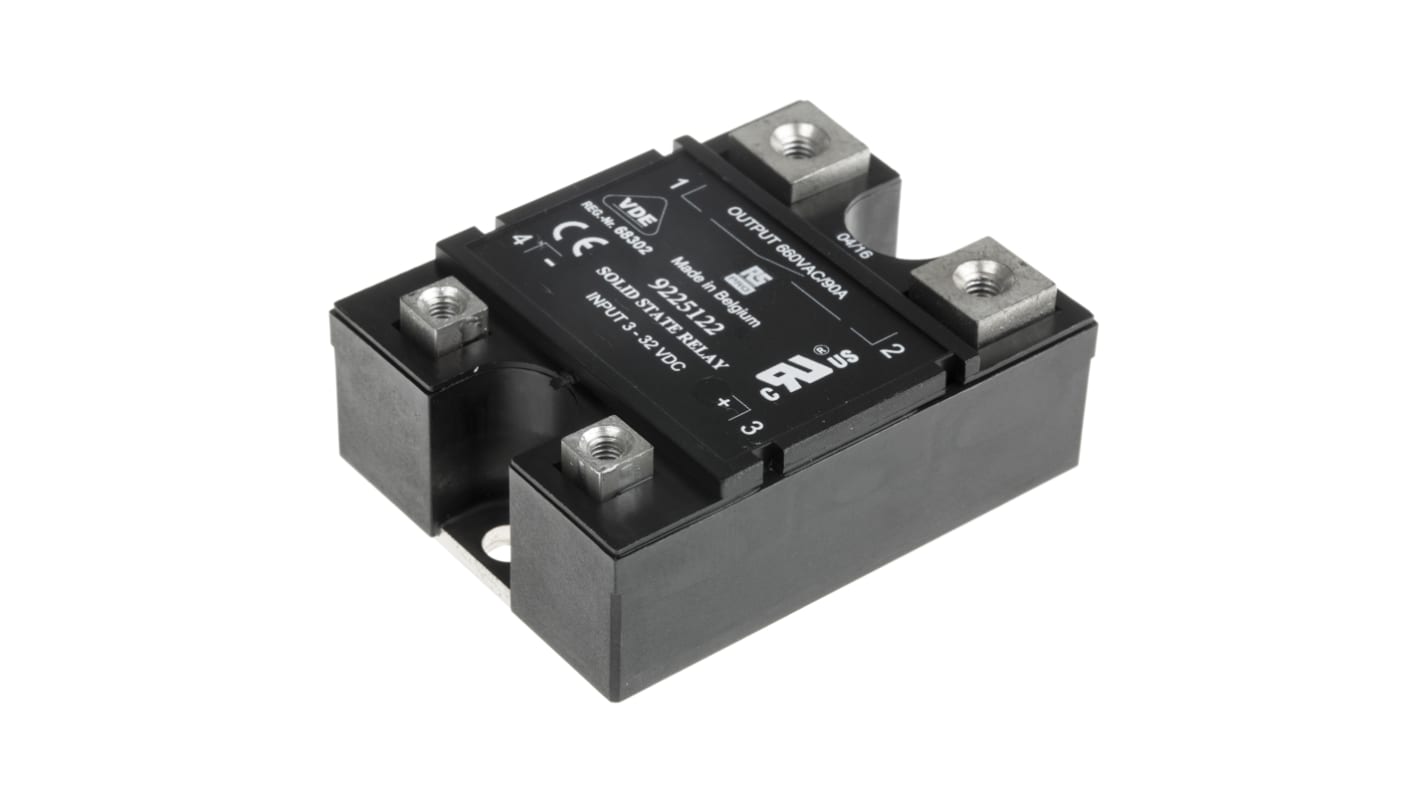

RS PRO Solid State Relay, 90 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 922-5122
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£99.56
(exc. VAT)
£119.47
(inc. VAT)
- RS Stock No.:
- 922-5122
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 90 A rms | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Minimum Control Voltage | 3 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 0.4 A | |
| Number of Poles | 1 | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| Output Device | Thyristor | |
| Relay Type | AC | |
| Load Voltage Range | 24 → 660V ac | |
| Maximum Turn On Time | 11ms | |
| Dimensions | 57.2 x 44.5 x 23mm | |
| Special Features | Hockey Puck Housing, Panel Mounted | |
| Depth | 44.5mm | |
| Off State Leakage Current | 12 mA | |
| Height | 23mm | |
| Standards Met | CE, CULus, VDE | |
| Operating Temperature Range | -20 → +80°C | |
| Length | 57.2mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 90 A rms | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 24 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 0.4 A | ||
Number of Poles 1 | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
Output Device Thyristor | ||
Relay Type AC | ||
Load Voltage Range 24 → 660V ac | ||
Maximum Turn On Time 11ms | ||
Dimensions 57.2 x 44.5 x 23mm | ||
Special Features Hockey Puck Housing, Panel Mounted | ||
Depth 44.5mm | ||
Off State Leakage Current 12 mA | ||
Height 23mm | ||
Standards Met CE, CULus, VDE | ||
Operating Temperature Range -20 → +80°C | ||
Length 57.2mm | ||
- COO (Country of Origin):
- BE
RS Pro WG Series DC Input Zero Cross Switching SSR
RS Pro WG series zero switching solid state relays provide the user with a compact solution without compromising on performance or reliability. Designed to switch inductive loads like electric motors and valves as well as resistive loads like heaters and lamps.
Zero cross switching
Hockey Puck Housing
Panel Mounted
AC Loads
DC Input
Hockey Puck Housing
Panel Mounted
AC Loads
DC Input
