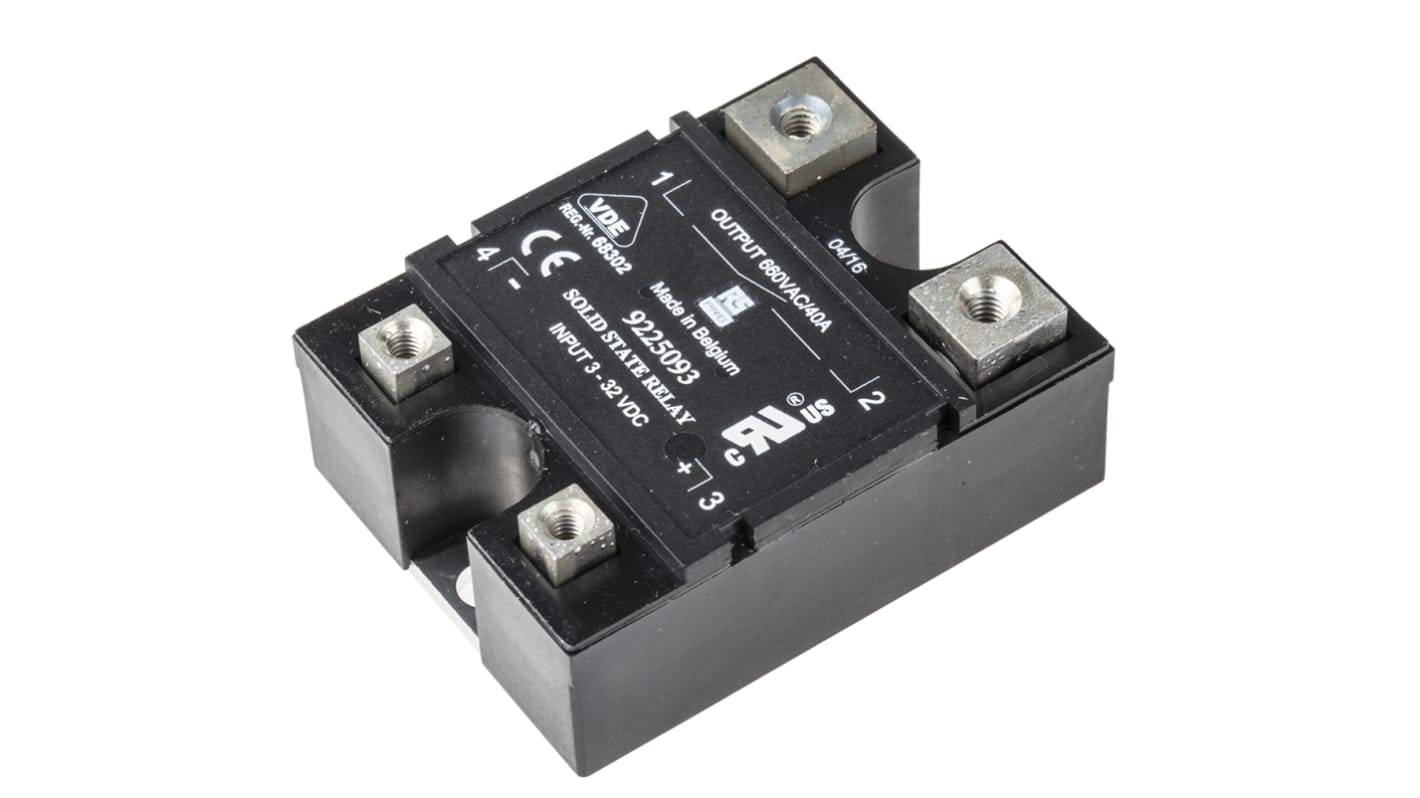

RS PRO Solid State Relay, 40 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 922-5093
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£65.88
(exc. VAT)
£79.06
(inc. VAT)
- RS Stock No.:
- 922-5093
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 40 A rms | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Minimum Control Voltage | 3 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Random | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 0.4 A | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | Thyristor | |
| Relay Type | AC | |
| Maximum Turn On Time | 0.1ms | |
| Load Voltage Range | 48 → 660V ac | |
| Dimensions | 57.2 x 44.5 x 23mm | |
| Length | 57.2mm | |
| Special Features | Hockey Puck Housing, Panel Mounted | |
| Operating Temperature Range | -20 → +80°C | |
| Depth | 44.5mm | |
| Standards Met | CE, CULus, VDE | |
| Height | 23mm | |
| Off State Leakage Current | 12 mA | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 40 A rms | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 48 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Random | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 0.4 A | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device Thyristor | ||
Relay Type AC | ||
Maximum Turn On Time 0.1ms | ||
Load Voltage Range 48 → 660V ac | ||
Dimensions 57.2 x 44.5 x 23mm | ||
Length 57.2mm | ||
Special Features Hockey Puck Housing, Panel Mounted | ||
Operating Temperature Range -20 → +80°C | ||
Depth 44.5mm | ||
Standards Met CE, CULus, VDE | ||
Height 23mm | ||
Off State Leakage Current 12 mA | ||
- COO (Country of Origin):
- BE
RS Pro WG Series DC Input Random Switching SSR
RS Pro WG series random switching solid state relays provide the user with a compact solution without compromising on performance or reliability. Designed to switch inductive loads like electric motors and valves as well as resistive loads like heaters and lamps.
Random switching
Hockey Puck Housing
Panel Mounted
AC Loads
DC Input
Hockey Puck Housing
Panel Mounted
AC Loads
DC Input
