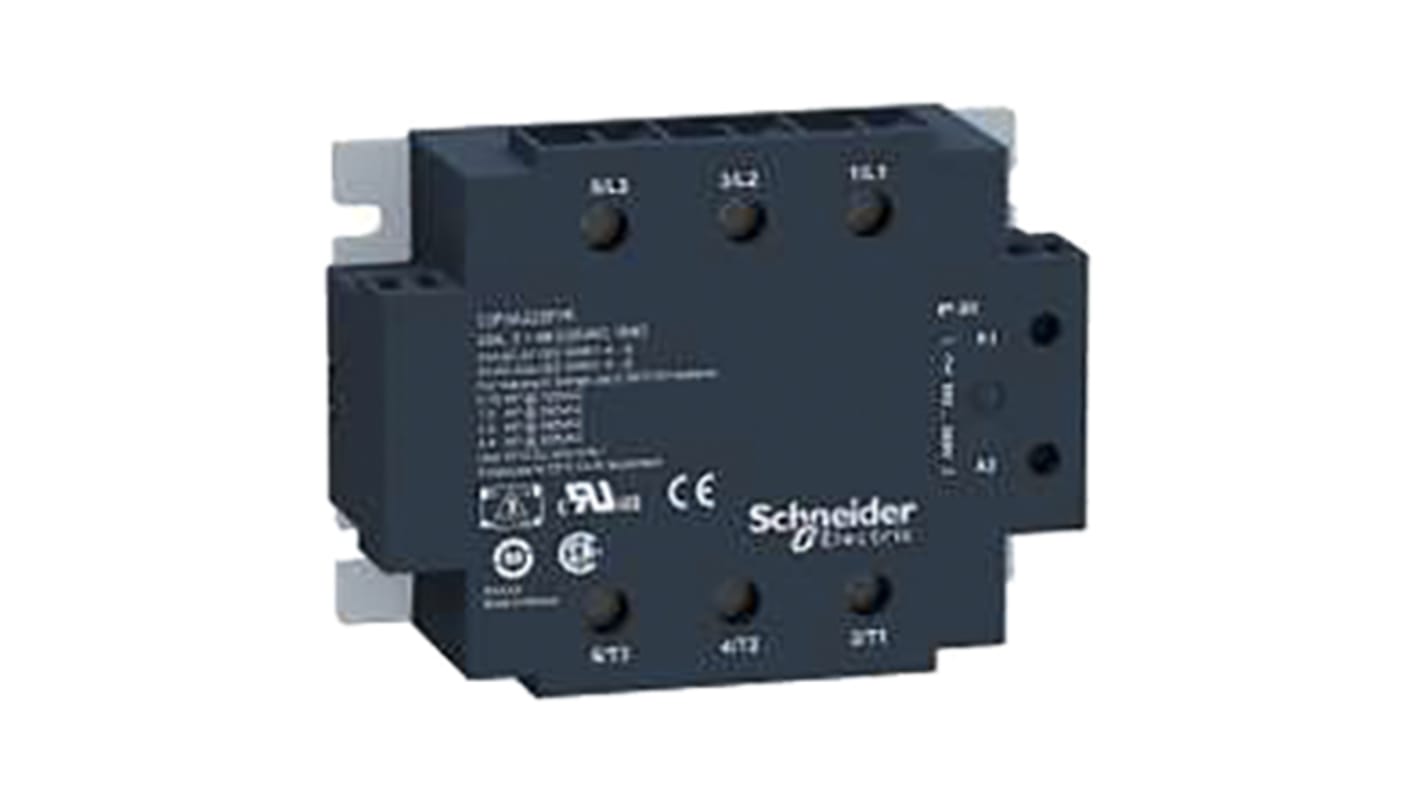

Schneider Electric Harmony Relay Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 140 V ac Control

RS Stock No.:: 922-2088
Mfr. Part No.:: SSP3A250F7RT
Brand:: Schneider Electric

Schneider Electric Harmony Relay Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 140 V ac Control

Discontinued product

RS Stock No.:: 922-2088
Mfr. Part No.:: SSP3A250F7RT
Brand:: Schneider Electric

Datasheet
Product Environmental Profile

Be the first to know about our latest products and services

Join our mailing list today:

The personal information you provide to us when signing up to the mailing list will be processed in line with our privacy policy.

Attribute	Value
Maximum Load Current	50 A
Mounting Type	Panel Mount
Maximum Load Voltage	530 V ac
Minimum Load Voltage	48 V ac
Minimum Control Voltage	90 V ac
Maximum Control Voltage	140 V ac
Switching Type	Zero Cross
Control Voltage Range	90 → 140 V ac
Minimum Load Current	0.1 A
Number of Poles	3
Terminal Type	Screw
Contact Configuration	3P-NO
Output Device	SCR
Relay Type	Three Channel Three Phase
Load Voltage Range	48 → 530V ac
Series	Harmony Relay
Maximum Turn On Time	20ms
Dimensions	101.3 x 97.8 x 35.5mm
Depth	97.8mm
Height	35.5mm
Off State Leakage Current	3 mA
Special Features	For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually
Capacitance	8pF
Operating Temperature Range	-40 → +80°C
Length	101.3mm
Standards Met	CE, CSA, UL

Schneider Electric Harmony Relay Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 140 V ac Control

Zelio SSP3 Solid State Power Relays
