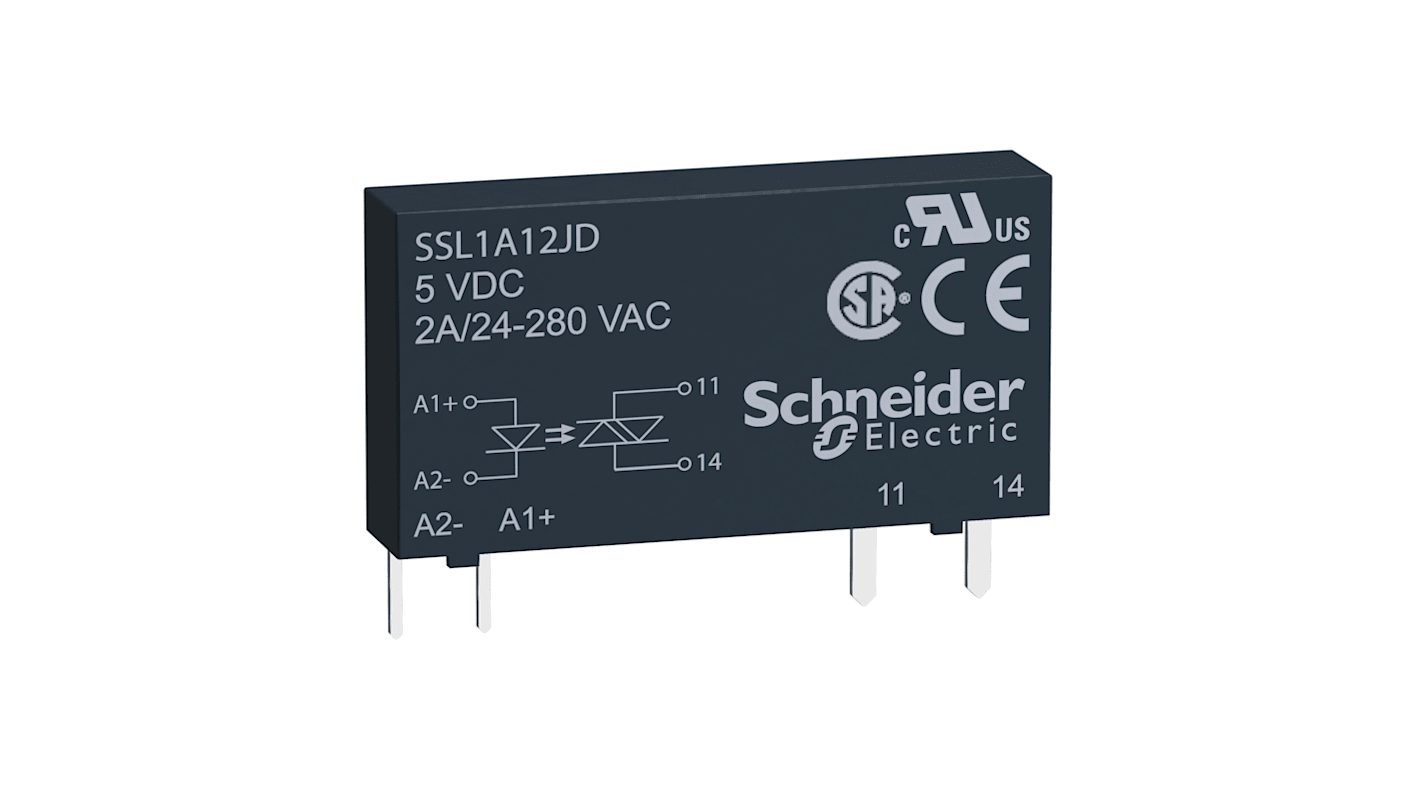

Schneider Electric Harmony Relay Series Solid State Relay, 2 A Load, PCB Mount, 280 V ac Load, 12 V dc Control
- RS Stock No.:
- 922-1821
- Mfr. Part No.:
- SSL1A12JDR
- Brand:
- Schneider Electric
- RS Stock No.:
- 922-1821
- Mfr. Part No.:
- SSL1A12JDR
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Maximum Load Current | 2 A | |
Mounting Type | PCB Mount | |
Maximum Load Voltage | 280 V ac | |
Minimum Load Voltage | 24 V ac | |
Minimum Control Voltage | 3 V dc | |
Maximum Control Voltage | 12 V dc | |
Switching Type | Instantaneous | |
Control Voltage Range | 3 → 12 V dc | |
Minimum Load Current | 0.07 A | |
Number of Poles | 1 | |
Terminal Type | PCB Pin | |
Contact Configuration | SPST | |
Output Device | SCR | |
Relay Type | Single Phase | |
Load Voltage Range | 24 → 280V ac | |
Maximum Turn On Time | 1/2 cycle | |
Series | Harmony Relay | |
Dimensions | 28 x 5 x 15mm | |
Length | 28mm | |
Standards Met | CE, CSA, UL | |
Special Features | Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals | |
Depth | 5mm | |
Capacitance | 1.5pF | |
Off State Leakage Current | 4 mA | |
Height | 15mm | |
Operating Temperature Range | -20 → +80°C | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 2 A | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 280 V ac | ||
Minimum Load Voltage 24 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 12 V dc | ||
Switching Type Instantaneous | ||
Control Voltage Range 3 → 12 V dc | ||
Minimum Load Current 0.07 A | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Contact Configuration SPST | ||
Output Device SCR | ||
Relay Type Single Phase | ||
Load Voltage Range 24 → 280V ac | ||
Maximum Turn On Time 1/2 cycle | ||
Series Harmony Relay | ||
Dimensions 28 x 5 x 15mm | ||
Length 28mm | ||
Standards Met CE, CSA, UL | ||
Special Features Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals | ||
Depth 5mm | ||
Capacitance 1.5pF | ||
Off State Leakage Current 4 mA | ||
Height 15mm | ||
Operating Temperature Range -20 → +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MX
Zelio SSL Solid State Slim Relays
SSL series plug-in type relays can be mounted directly on a PCB or DIN Rail mounted with a socket. DIN Rail sockets are available in screw connector or spring terminal types.
Easy maintenance
High switching frequency
Resistance to shock, vibration and contamination
Long life span
