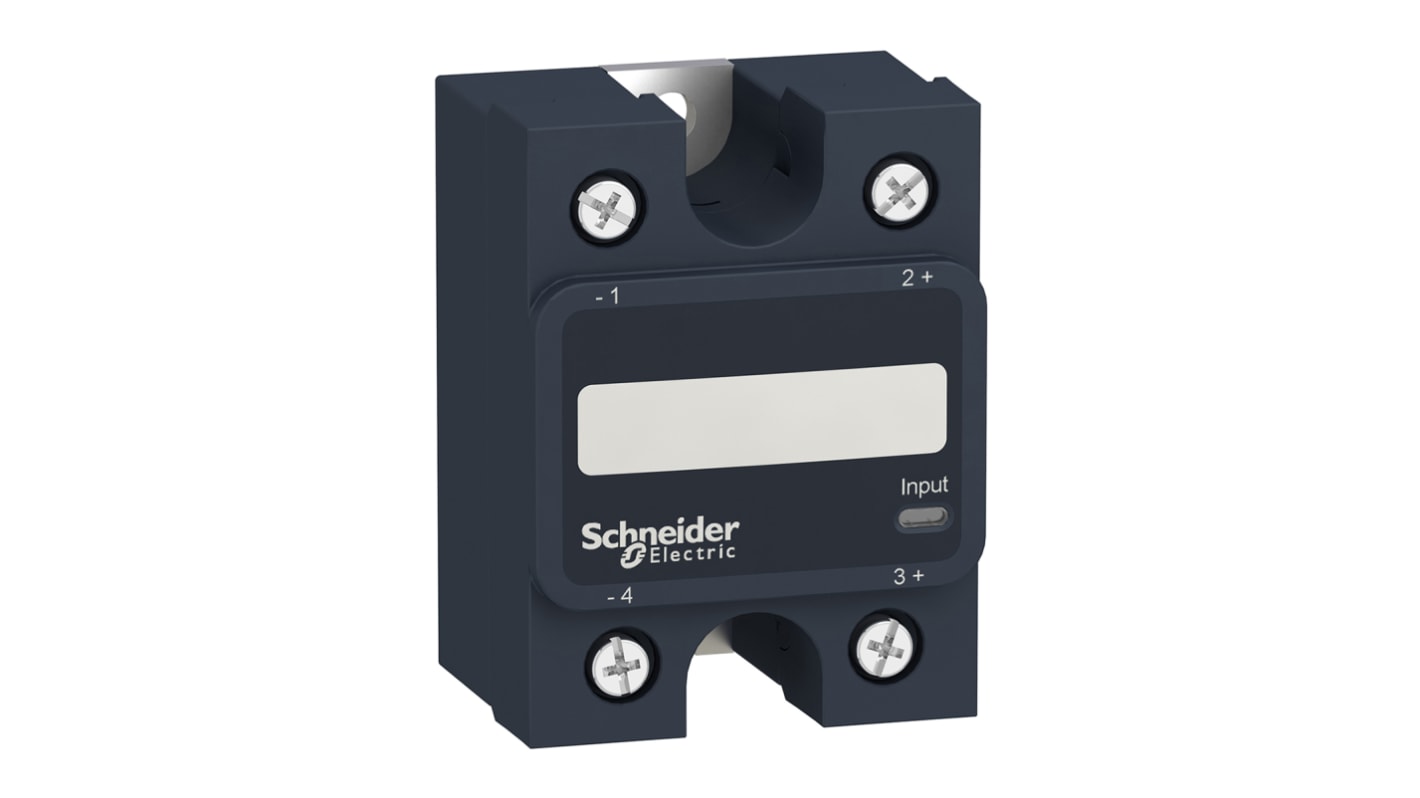

Schneider Electric Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 904-5695
- Mfr. Part No.:
- SSP1A4125BD
- Brand:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 904-5695
- Mfr. Part No.:
- SSP1A4125BD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 125 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 4 V dc | |
| Switching Type | Zero Voltage | |
| Control Voltage Range | 4 → 32 V dc | |
| Minimum Load Current | 0.15 A | |
| Number of Poles | 1 | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| Output Device | SCR | |
| Relay Type | Solid State Relay | |
| Maximum Turn On Time | 1/2 cycle + 1 ms | |
| Load Voltage Range | 48 → 660V ac | |
| Dimensions | 44.45 x 34.29 x 58.89mm | |
| Standards Met | CE, CSA, EAC, EN/IEC, REACH, UL | |
| Special Features | Green LED for Input Visualization | |
| Operating Temperature Range | -40 → +80°C | |
| Capacitance | 8pF | |
| Height | 58.9mm | |
| Length | 44.5mm | |
| Depth | 34.3mm | |
| Off State Leakage Current | <= 1 mA | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 125 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 48 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 4 V dc | ||
Switching Type Zero Voltage | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 0.15 A | ||
Number of Poles 1 | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
Output Device SCR | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 1/2 cycle + 1 ms | ||
Load Voltage Range 48 → 660V ac | ||
Dimensions 44.45 x 34.29 x 58.89mm | ||
Standards Met CE, CSA, EAC, EN/IEC, REACH, UL | ||
Special Features Green LED for Input Visualization | ||
Operating Temperature Range -40 → +80°C | ||
Capacitance 8pF | ||
Height 58.9mm | ||
Length 44.5mm | ||
Depth 34.3mm | ||
Off State Leakage Current <= 1 mA | ||
- COO (Country of Origin):
- MX
Zelio SSP1 Solid State Relays
The new Zelio SSP1 relays offer a complete range of innovative, smart diagnostic features and reliable solid state relays. This range of solid state relays, with their telescopic screw terminal are safe and reliable plus the smart diagnostic feature which has a signal alarm output allowing you to troubleshoot, therefore minimizing any downtime and the impact of a machine break down. The SSP1 solid state relays are a complete solution of 1 and 3 phase, slim, modular and DIN rail panel mount with a solid state switching solution. With simple easy product selection and easy to understand product information the SSP1 range provides you an enhanced product and a much improved user experience.
Benefits:
Zero voltage switching
1 Phase
Panel Mount
Simpler approach giving higher efficiency
Maintenance free
Full electronic unlimited lifespan
High switching frequency
Fast and precise control
Silent and reliable switching
No moving parts
Sustainable in harsh environments
Resistant to shock and vibration
Free from contact contaminations
Applications:
Suitable for a wide range of applications including:
Industrial machines
Packaging machines
Injection moulding
HVAC
Machines, building and medical equipment
Textile machines
Zero voltage switching
1 Phase
Panel Mount
Simpler approach giving higher efficiency
Maintenance free
Full electronic unlimited lifespan
High switching frequency
Fast and precise control
Silent and reliable switching
No moving parts
Sustainable in harsh environments
Resistant to shock and vibration
Free from contact contaminations
Applications:
Suitable for a wide range of applications including:
Industrial machines
Packaging machines
Injection moulding
HVAC
Machines, building and medical equipment
Textile machines
