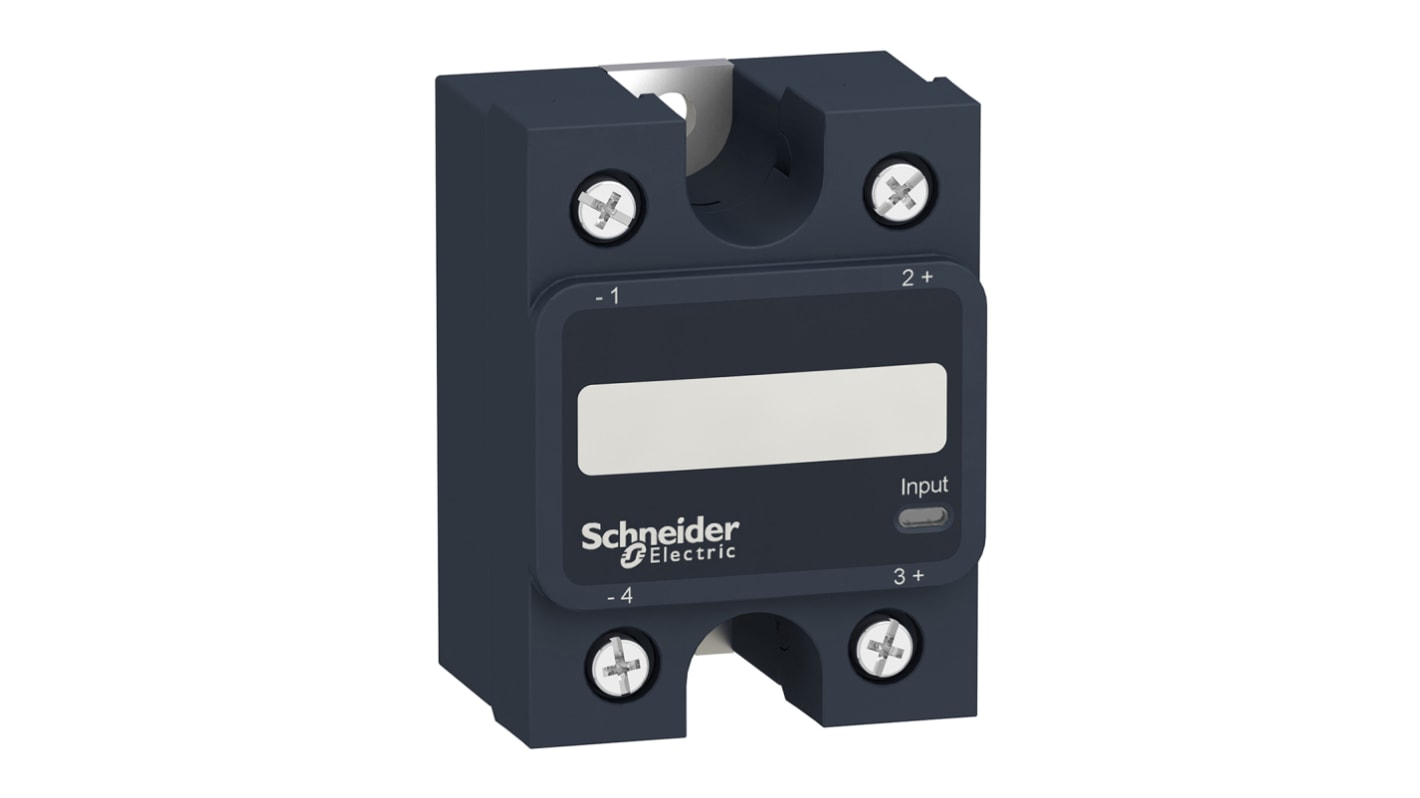

Schneider Electric Solid State Relay, 75 A Load, Panel Mount, 300 V ac Load, 280 V ac Control
- RS Stock No.:
- 904-5683
- Mfr. Part No.:
- SSP1A175M7
- Brand:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 904-5683
- Mfr. Part No.:
- SSP1A175M7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 75 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 300 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Minimum Control Voltage | 90 V ac | |
| Maximum Control Voltage | 280 V ac | |
| Switching Type | Zero Voltage | |
| Control Voltage Range | 90 → 280 V ac | |
| Minimum Load Current | 0.15 A | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | SCR | |
| Relay Type | Solid State Relay | |
| Load Voltage Range | 24 → 300V ac | |
| Maximum Turn On Time | 25ms | |
| Dimensions | 44.45 x 34.29 x 58.89mm | |
| Operating Temperature Range | -40 → +80°C | |
| Special Features | Green LED for Input Visualization | |
| Standards Met | CE, CSA, EAC, EN/IEC, REACH, UL | |
| Capacitance | 8pF | |
| Depth | 34.29mm | |
| Height | 58.89mm | |
| Off State Leakage Current | <= 1 mA | |
| Length | 44.45mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 75 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 300 V ac | ||
Minimum Load Voltage 24 V ac | ||
Minimum Control Voltage 90 V ac | ||
Maximum Control Voltage 280 V ac | ||
Switching Type Zero Voltage | ||
Control Voltage Range 90 → 280 V ac | ||
Minimum Load Current 0.15 A | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device SCR | ||
Relay Type Solid State Relay | ||
Load Voltage Range 24 → 300V ac | ||
Maximum Turn On Time 25ms | ||
Dimensions 44.45 x 34.29 x 58.89mm | ||
Operating Temperature Range -40 → +80°C | ||
Special Features Green LED for Input Visualization | ||
Standards Met CE, CSA, EAC, EN/IEC, REACH, UL | ||
Capacitance 8pF | ||
Depth 34.29mm | ||
Height 58.89mm | ||
Off State Leakage Current <= 1 mA | ||
Length 44.45mm | ||
- COO (Country of Origin):
- MX
Zelio SSP1 Solid State Relays
The new Zelio SSP1 relays offer a complete range of innovative, smart diagnostic features and reliable solid state relays. This range of solid state relays, with their telescopic screw terminal are safe and reliable plus the smart diagnostic feature which has a signal alarm output allowing you to troubleshoot, therefore minimizing any downtime and the impact of a machine break down. The SSP1 solid state relays are a complete solution of 1 and 3 phase, slim, modular and DIN rail panel mount with a solid state switching solution. With simple easy product selection and easy to understand product information the SSP1 range provides you an enhanced product and a much improved user experience.
Benefits:
Zero voltage switching
1 Phase
Panel Mount
Simpler approach giving higher efficiency
Maintenance free
Full electronic unlimited lifespan
High switching frequency
Fast and precise control
Silent and reliable switching
No moving parts
Sustainable in harsh environments
Resistant to shock and vibration
Free from contact contaminations
Applications:
Suitable for a wide range of applications including:
Industrial machines
Packaging machines
Injection moulding
HVAC
Machines, building and medical equipment
Textile machines
Zero voltage switching
1 Phase
Panel Mount
Simpler approach giving higher efficiency
Maintenance free
Full electronic unlimited lifespan
High switching frequency
Fast and precise control
Silent and reliable switching
No moving parts
Sustainable in harsh environments
Resistant to shock and vibration
Free from contact contaminations
Applications:
Suitable for a wide range of applications including:
Industrial machines
Packaging machines
Injection moulding
HVAC
Machines, building and medical equipment
Textile machines
