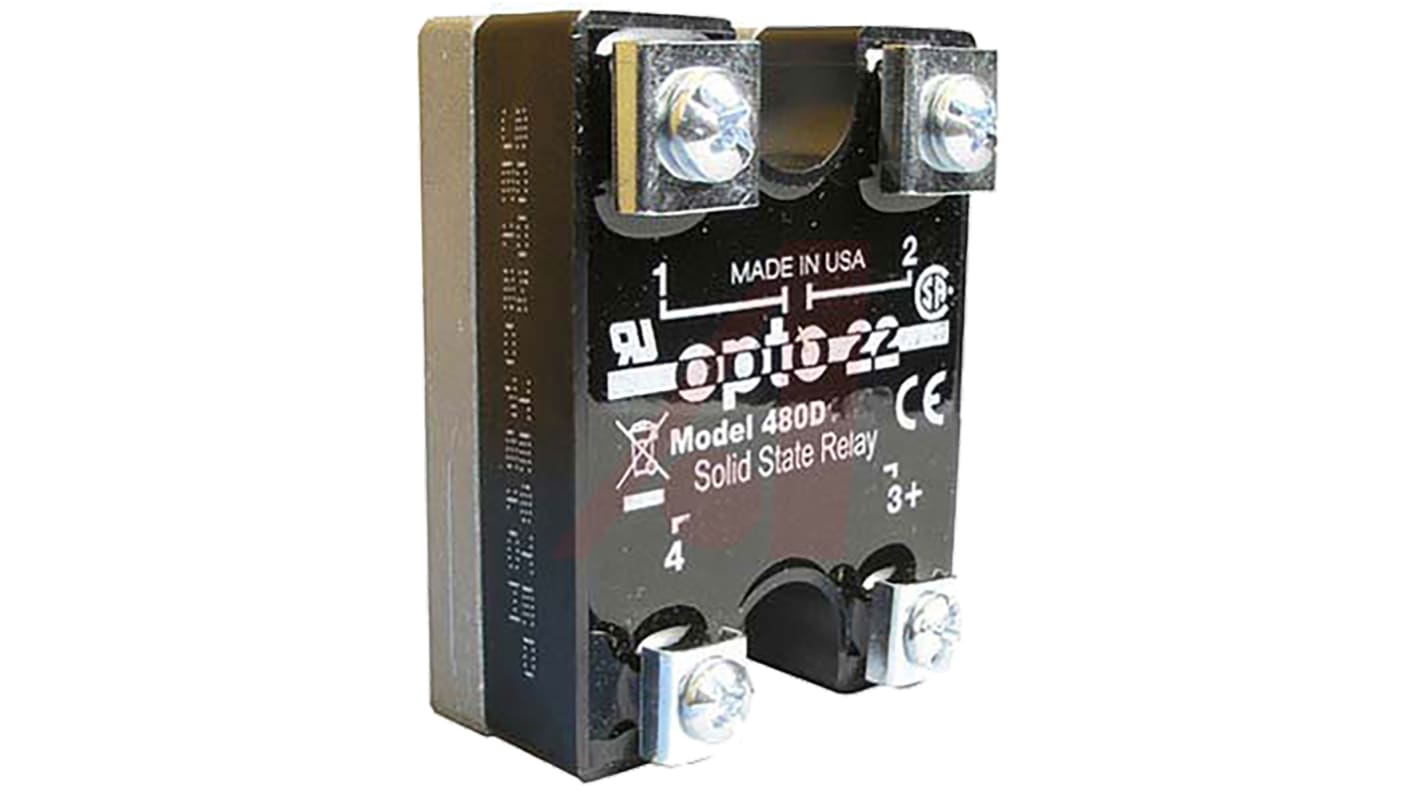

Opto 22 Solid State Relay, 25 A Load, Panel Mount, 480 V ac Load, 32 V dc Control
- RS Stock No.:
- 888-7417
- Mfr. Part No.:
- 480D25-12
- Brand:
- Opto 22
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 888-7417
- Mfr. Part No.:
- 480D25-12
- Brand:
- Opto 22
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Opto 22 | |
| Maximum Load Current | 25 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 480 V ac | |
| Minimum Load Voltage | 100 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | AC | |
| Control Voltage Range | 3 → 32 V dc | |
| Terminal Type | Screw | |
| Relay Type | Solid State Relay | |
| Load Voltage Range | 100 → 480V ac | |
| Maximum Turn On Time | 0.5 cycles | |
| Dimensions | 44.5 x 57.2 x 19.6mm | |
| Maximum Operating Temperature | +100°C | |
| Height | 19.6mm | |
| Special Features | Hermetically Sealed, LED Indicator | |
| Standards Met | CE, CSA, UL | |
| Off State Leakage Current | 11 mA | |
| Minimum Operating Temperature | -40°C | |
| Capacitance | 8pF | |
| Length | 44.5mm | |
| Operating Temperature Range | -40 → +100°C | |
| Depth | 57.2mm | |
| Select all | ||
|---|---|---|
Brand Opto 22 | ||
Maximum Load Current 25 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 480 V ac | ||
Minimum Load Voltage 100 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3 V dc | ||
Switching Type AC | ||
Control Voltage Range 3 → 32 V dc | ||
Terminal Type Screw | ||
Relay Type Solid State Relay | ||
Load Voltage Range 100 → 480V ac | ||
Maximum Turn On Time 0.5 cycles | ||
Dimensions 44.5 x 57.2 x 19.6mm | ||
Maximum Operating Temperature +100°C | ||
Height 19.6mm | ||
Special Features Hermetically Sealed, LED Indicator | ||
Standards Met CE, CSA, UL | ||
Off State Leakage Current 11 mA | ||
Minimum Operating Temperature -40°C | ||
Capacitance 8pF | ||
Length 44.5mm | ||
Operating Temperature Range -40 → +100°C | ||
Depth 57.2mm | ||
- COO (Country of Origin):
- US
DC Series
Professional range of Opto 22 solid state relays from the DC series. The DC series of solid state relays are LS TTL compatible. The DC series of relays feature 4000V of optical isolation.
4000V Optical Isolation
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
