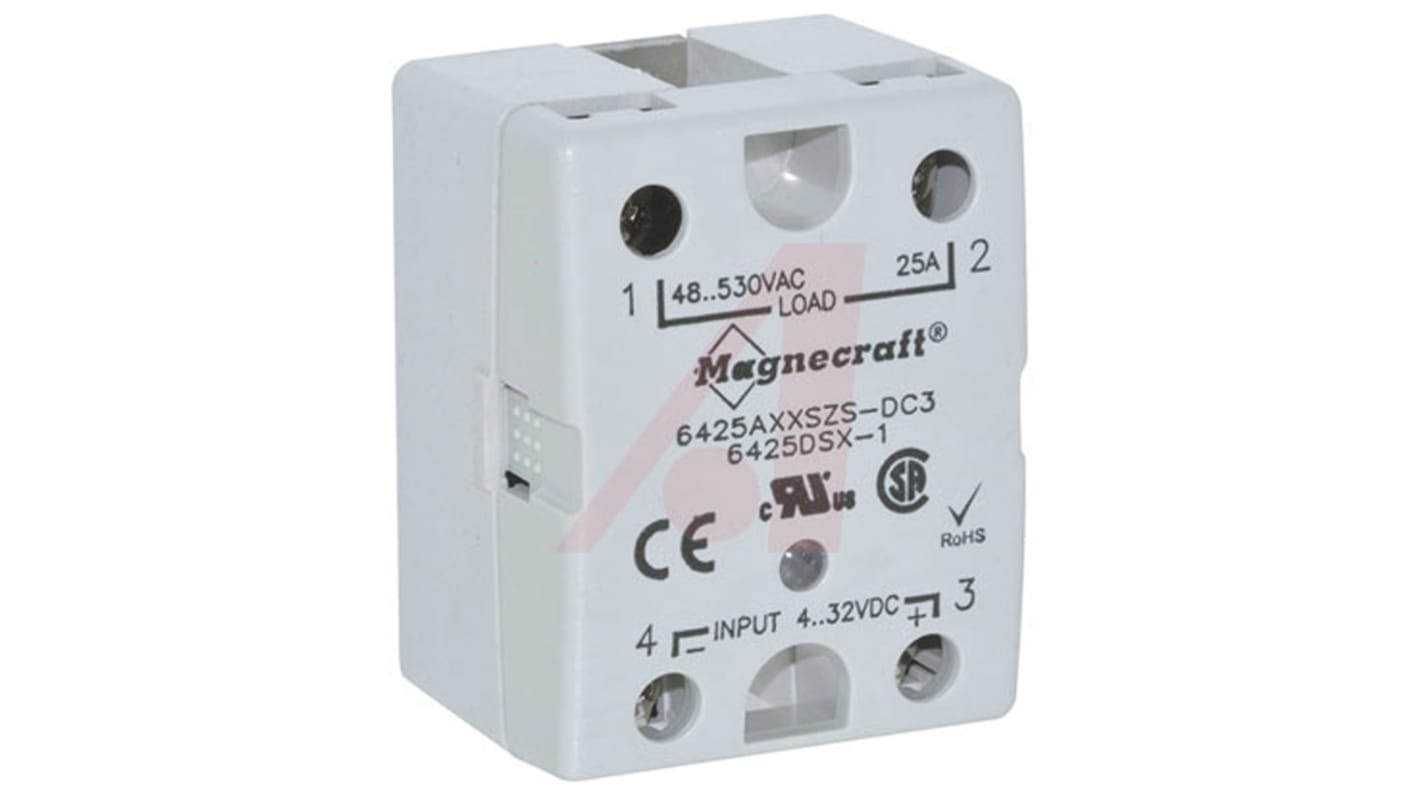

Schneider Electric Solid State Relay, 25 A Load, Panel Mount, 480 V ac Load, 32 V dc Control
- RS Stock No.:
- 827-8664
- Mfr. Part No.:
- 6425AXXSZS-DC3
- Brand:
- Schneider Electric
Discontinued
- RS Stock No.:
- 827-8664
- Mfr. Part No.:
- 6425AXXSZS-DC3
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 25 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 480 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Minimum Control Voltage | 3 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 150 mA | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| Output Device | SCR | |
| Maximum Turn On Time | 1/2 cycle | |
| Load Voltage Range | 48 → 480V ac | |
| Dimensions | 57.91 x 44.14 x 35.9mm | |
| Height | 35.9mm | |
| Operating Temperature Range | -40 → +80°C | |
| Depth | 44.1mm | |
| Length | 57.2mm | |
| Off State Leakage Current | 1 mA | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 25 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 480 V ac | ||
Minimum Load Voltage 48 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 150 mA | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
Output Device SCR | ||
Maximum Turn On Time 1/2 cycle | ||
Load Voltage Range 48 → 480V ac | ||
Dimensions 57.91 x 44.14 x 35.9mm | ||
Height 35.9mm | ||
Operating Temperature Range -40 → +80°C | ||
Depth 44.1mm | ||
Length 57.2mm | ||
Off State Leakage Current 1 mA | ||
RoHS Status: Exempt
6000 series
The 6000 series solid state relays offer an energy-efficient, current switching alternative to standard electromechanical relays. Advantages include longer life cycles, less energy consumption, and reduced maintenance costs.
Solid state circuitry
Optically coupled circuit
Internal snubber
Fingersafe terminals
Optically coupled circuit
Internal snubber
Fingersafe terminals
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
