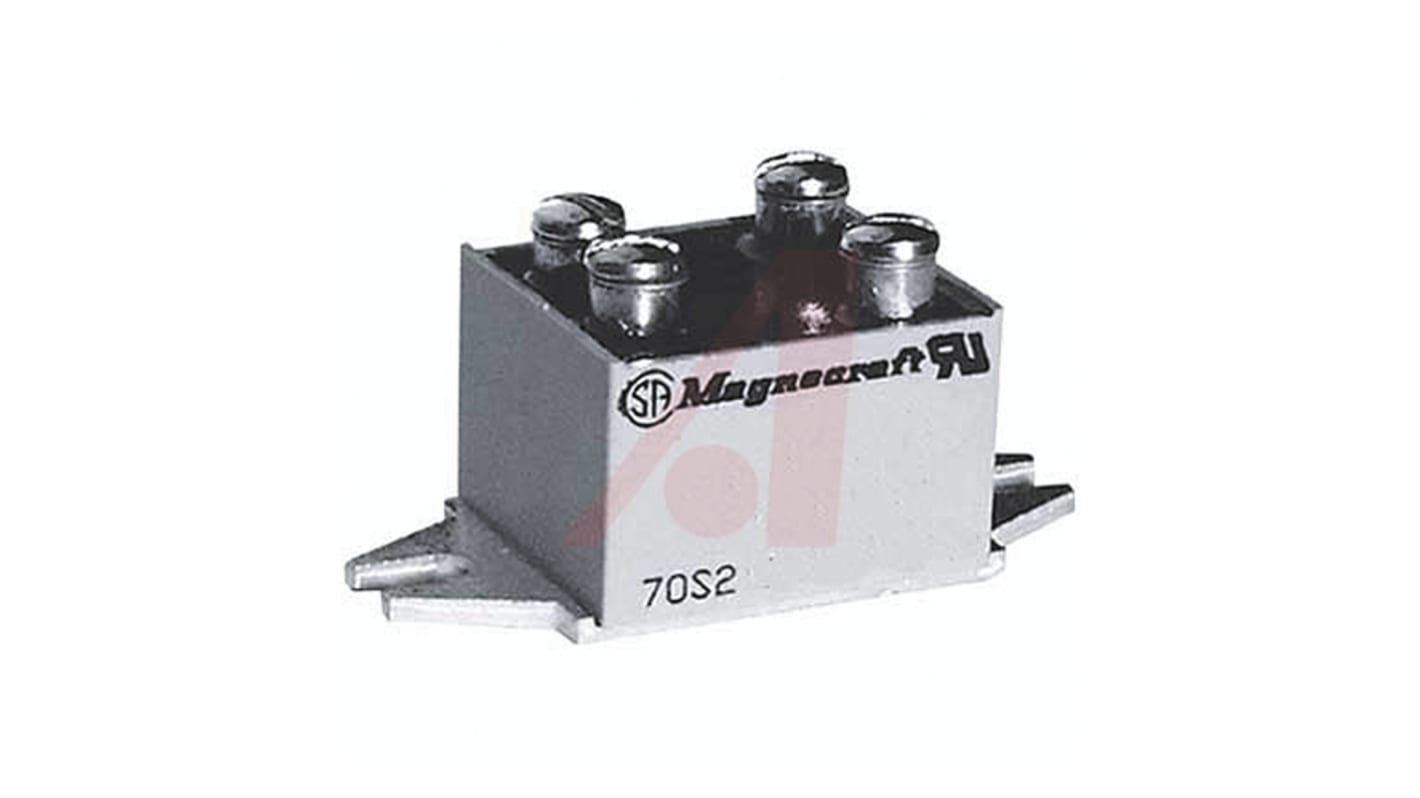

Schneider Electric 70S2 Series Solid State Relay, 5 A Load, Panel Mount, 60 V dc Load, 30 V dc Control
- RS Stock No.:
- 814-8197
- Mfr. Part No.:
- 70S2-02-A-05-S
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£40.58
(exc. VAT)
£48.70
(inc. VAT)
- RS Stock No.:
- 814-8197
- Mfr. Part No.:
- 70S2-02-A-05-S
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 5 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 60 V dc | |
| Minimum Load Voltage | 3 V dc | |
| Maximum Control Voltage | 30 V dc | |
| Minimum Control Voltage | 9 V dc | |
| Switching Type | DC | |
| Control Voltage Range | 9 → 30 V dc | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| Output Device | MOSFET | |
| Relay Type | Solid State Relay | |
| Series | 70S2 | |
| Maximum Turn On Time | 75ms | |
| Load Voltage Range | 3 → 60V dc | |
| Dimensions | 31.2 x 26.2 x 22.9mm | |
| Depth | 26.2mm | |
| Off State Leakage Current | 10 mA | |
| Height | 22.9mm | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | RoHS Compliant | |
| Length | 31.2mm | |
| Operating Temperature Range | -40 → +100°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 5 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 60 V dc | ||
Minimum Load Voltage 3 V dc | ||
Maximum Control Voltage 30 V dc | ||
Minimum Control Voltage 9 V dc | ||
Switching Type DC | ||
Control Voltage Range 9 → 30 V dc | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
Output Device MOSFET | ||
Relay Type Solid State Relay | ||
Series 70S2 | ||
Maximum Turn On Time 75ms | ||
Load Voltage Range 3 → 60V dc | ||
Dimensions 31.2 x 26.2 x 22.9mm | ||
Depth 26.2mm | ||
Off State Leakage Current 10 mA | ||
Height 22.9mm | ||
Minimum Operating Temperature -40°C | ||
Standards Met RoHS Compliant | ||
Length 31.2mm | ||
Operating Temperature Range -40 → +100°C | ||
Maximum Operating Temperature +100°C | ||
70S2 Series
70S2 series dc switching solid state relays specially designed for medium-power loads.
Optical isolation to protect the control from transients
Small package ideal for tight designs
Internal snubber for excellent transient protection
Screw, fast-on or PCB terminals depending on the model
Small package ideal for tight designs
Internal snubber for excellent transient protection
Screw, fast-on or PCB terminals depending on the model
DC Switching
