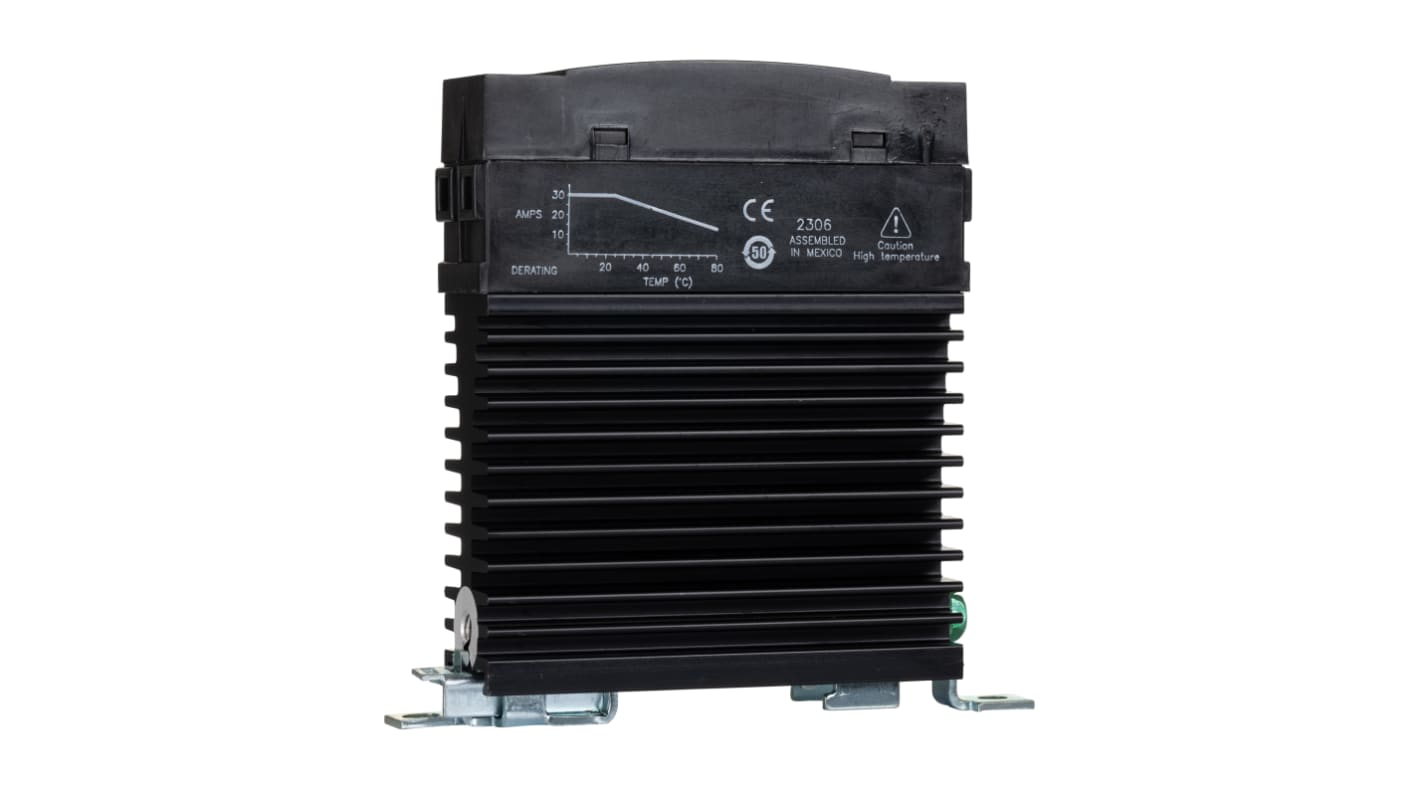

Sensata / Crydom CKR24 Series Solid State Relay, 30 A Load, DIN Rail Mount, 280 V rms Load, 280 V ac Control
- RS Stock No.:
- 736-0829
- Mfr. Part No.:
- CKRA2430-10
- Brand:
- Sensata / Crydom
Stock information currently inaccessible
- RS Stock No.:
- 736-0829
- Mfr. Part No.:
- CKRA2430-10
- Brand:
- Sensata / Crydom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 30 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 280 V rms | |
| Minimum Load Voltage | 24 V rms | |
| Maximum Control Voltage | 280 V ac | |
| Minimum Control Voltage | 90 V ac | |
| Switching Type | Instantaneous | |
| Control Voltage Range | 90 → 280 V ac | |
| Minimum Load Current | 0.15 A rms | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| Output Device | SCR | |
| Relay Type | Solid State Relay | |
| Package Style | Slim 22.5 mm | |
| Series | CKR24 | |
| Maximum Turn On Time | 10ms | |
| Load Voltage Range | 24 → 280Vrms | |
| Dimensions | 22.5 x 81.3 x 81.9mm | |
| Standards Met | CE, CSA, RoHS Compliant | |
| Height | 81.9mm | |
| Minimum Operating Temperature | -40°C | |
| Length | 22.5mm | |
| Operating Temperature Range | -40 → +80°C | |
| Maximum Operating Temperature | +80°C | |
| Capacitance | 8pF | |
| Off State Leakage Current | 10mA rms | |
| Depth | 81.3mm | |
| Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 30 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 280 V rms | ||
Minimum Load Voltage 24 V rms | ||
Maximum Control Voltage 280 V ac | ||
Minimum Control Voltage 90 V ac | ||
Switching Type Instantaneous | ||
Control Voltage Range 90 → 280 V ac | ||
Minimum Load Current 0.15 A rms | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
Output Device SCR | ||
Relay Type Solid State Relay | ||
Package Style Slim 22.5 mm | ||
Series CKR24 | ||
Maximum Turn On Time 10ms | ||
Load Voltage Range 24 → 280Vrms | ||
Dimensions 22.5 x 81.3 x 81.9mm | ||
Standards Met CE, CSA, RoHS Compliant | ||
Height 81.9mm | ||
Minimum Operating Temperature -40°C | ||
Length 22.5mm | ||
Operating Temperature Range -40 → +80°C | ||
Maximum Operating Temperature +80°C | ||
Capacitance 8pF | ||
Off State Leakage Current 10mA rms | ||
Depth 81.3mm | ||
- COO (Country of Origin):
- MX
Sensata | Crydom Solid-State Relay, SPST Contact Configuration, SCR Output - CKR24 Series - CKRA2430-10
Looking for a product with rapid-fire switching abilities? Choose this solid-state relay from Sensata | Crydom for the job. It delivers a rapid turn-on time of just 10ms, activating your equipment in a flash. The unit is an ideal option for low-power devices, thanks to its operating voltage range of 24 to 280V AC. As the SSR has no moving parts, it's protected against wear for a long service life. Screw terminals mean you can wire it up in a snap without the need for special tools. You can use this SSR for industrial automation, medical equipment and robotics applications.
Features & Benefits
• DIN rail mounting makes installation quick and simple
• Light weight of 280g to place minimal strain on your setup
• Green LED indicator for at-a-glance status monitoring
• Compact dimensions of 22.5 (L) x 81.3 (D) x 81.9mm (H) to maximise space on your rail
• Light weight of 280g to place minimal strain on your setup
• Green LED indicator for at-a-glance status monitoring
• Compact dimensions of 22.5 (L) x 81.3 (D) x 81.9mm (H) to maximise space on your rail
Can I use this product in harsh industrial conditions?
Yes. This SSR is safe to use at temperatures between -40°C and +80°C, so it's just the thing for use in harsh environments.
Instantaneous Switching
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
