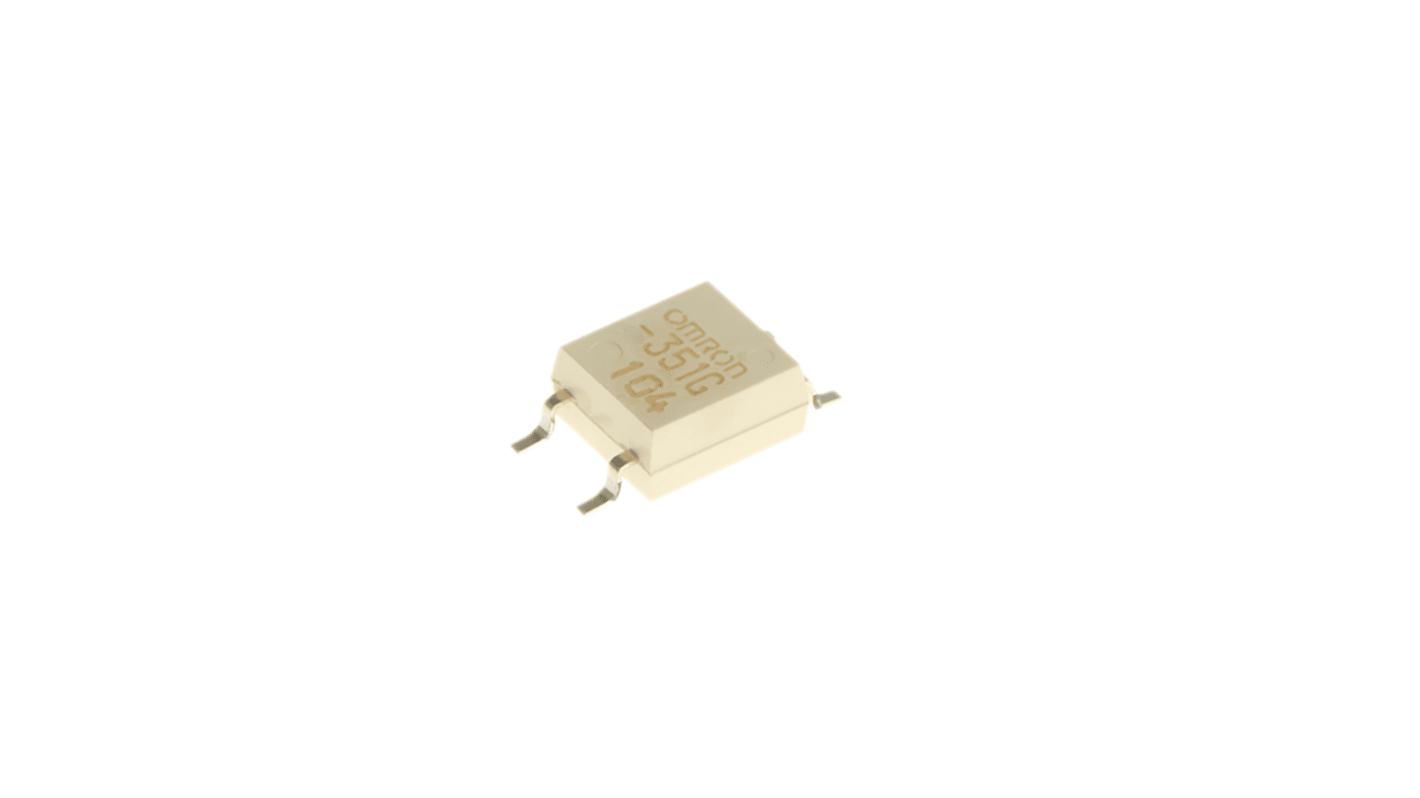

Omron G3VM Series Solid State Relay, 0.11 A Load, Surface Mount, 350 V Load, 1.3 V Control
- RS Stock No.:
- 480-1273
- Mfr. Part No.:
- G3VM-351G
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 480-1273
- Mfr. Part No.:
- G3VM-351G
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Load Current | 0.11 A | |
| Mounting Type | Surface Mount | |
| Maximum Load Voltage | 350 V | |
| Maximum Control Voltage | 1.3 V | |
| Minimum Load Current | 100 mA | |
| Contact Configuration | SPST | |
| Terminal Type | PCB Pin | |
| Output Device | MOSFET | |
| Package Style | SOP4 | |
| Load Voltage Range | 0 → 350V ac | |
| Series | G3VM | |
| Dimensions | 3.9 x 4.4 x 1.9mm | |
| Depth | 4.4mm | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Length | 3.9mm | |
| Height | 1.9mm | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Load Current 0.11 A | ||
Mounting Type Surface Mount | ||
Maximum Load Voltage 350 V | ||
Maximum Control Voltage 1.3 V | ||
Minimum Load Current 100 mA | ||
Contact Configuration SPST | ||
Terminal Type PCB Pin | ||
Output Device MOSFET | ||
Package Style SOP4 | ||
Load Voltage Range 0 → 350V ac | ||
Series G3VM | ||
Dimensions 3.9 x 4.4 x 1.9mm | ||
Depth 4.4mm | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Length 3.9mm | ||
Height 1.9mm | ||
Maximum Operating Temperature +85°C | ||
G3VM-351G MOS FET General Purpose Series SSR – Solid State Relay.
The G3VM-351G relay is part of the upgraded G3VM-S2 series offering a wealth of benefits. NO (normally open) through hole, SOP package relay with 4 PCB terminals and a load voltage of 350 V. This series relay is designed for switching minute and analogue signals.
Features and Benefits G3VM-351G General Purpose SSR – Solid Sate Relay.
• MOS FET Solid state relay.
• Surface mounted relay terminals.
• Flat SOP package.
• Contact form SPST-NO (1a) (normally open).
• SMT relay.
• 4 Relay terminals.
• Load voltage 350 V ac.
• Load current 110 mA max.
• Maximum resistance with output ON 35 Ω.
• Current leakage when relay is open 1.5 nA max.
• Capacitance between terminals 30 pF.
• SSR -Turn ON time 1 ms max.
• SSR -Turn OFF time 1 ms max.
• Dielectric strength between I/O 1500 Vrms.
• RoHS Compliant.
• Surface mounted relay terminals.
• Flat SOP package.
• Contact form SPST-NO (1a) (normally open).
• SMT relay.
• 4 Relay terminals.
• Load voltage 350 V ac.
• Load current 110 mA max.
• Maximum resistance with output ON 35 Ω.
• Current leakage when relay is open 1.5 nA max.
• Capacitance between terminals 30 pF.
• SSR -Turn ON time 1 ms max.
• SSR -Turn OFF time 1 ms max.
• Dielectric strength between I/O 1500 Vrms.
• RoHS Compliant.
Additional Features G3VM-351G General Purpose SSR – Solid State Relay.
• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
Other Application Examples.
• Test and measurement equipment.
• Security equipment.
• Amusement equipment.
• Measurement devices.
• Data loggers.
• Broadband systems.
• Security equipment.
• Amusement equipment.
• Measurement devices.
• Data loggers.
• Broadband systems.
