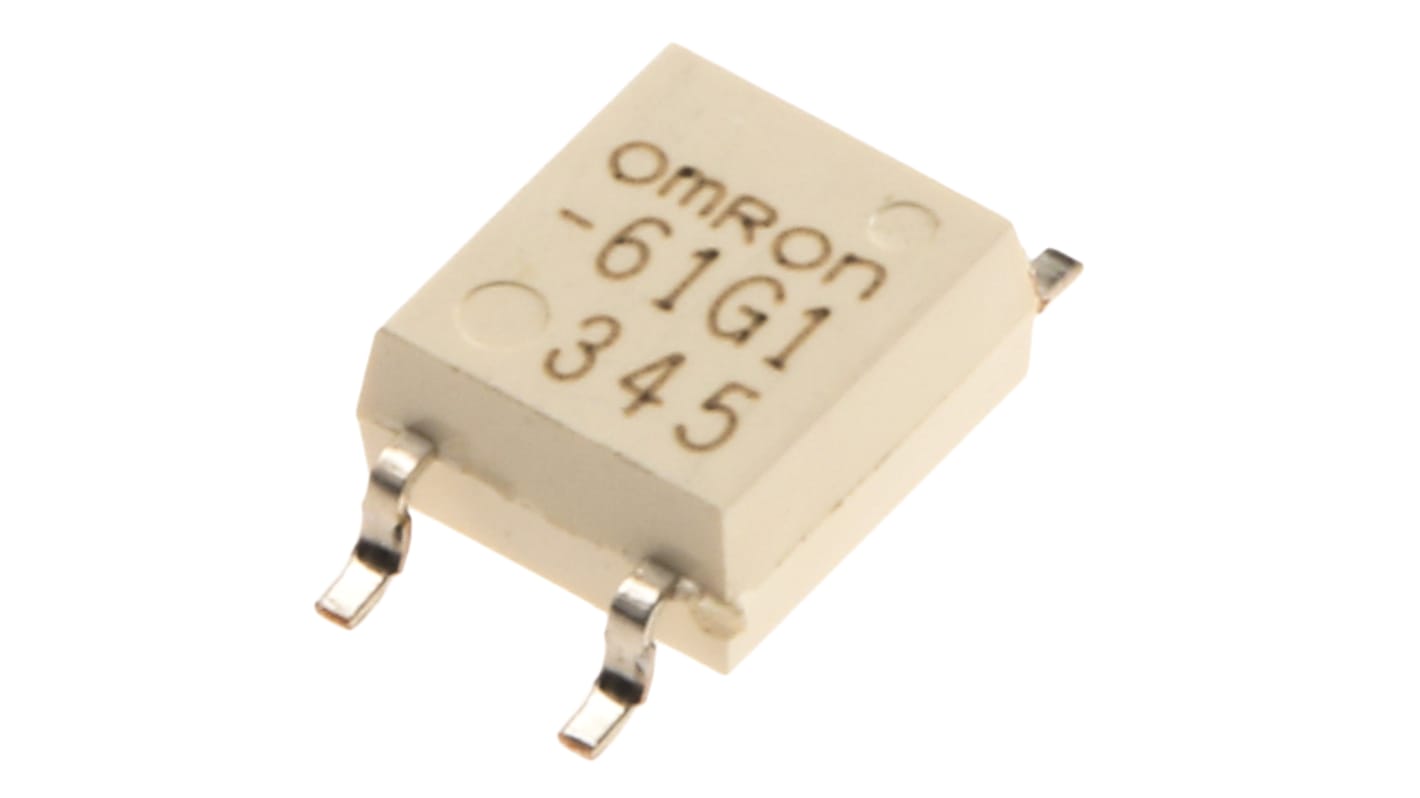

Omron G3VM Series Solid State Relay, 0.4 A Load, Surface Mount, 60 V Load, 1.3 V Control

RS Stock No.:: 480-1267
Mfr. Part No.:: G3VM-61G1
Brand:: Omron

Omron G3VM Series Solid State Relay, 0.4 A Load, Surface Mount, 60 V Load, 1.3 V Control

Unavailable

RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

Omron G3VM Series Solid State Relay, 0.4 A Load, Surface Mount, 60 V Load, 1.3V Control

RS Stock No.: 480-1122

Each

£2.09

(exc. VAT)

£2.51

(inc. VAT)

RS Stock No.:: 480-1267
Mfr. Part No.:: G3VM-61G1
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Maximum Load Current	0.4 A
	Mounting Type	Surface Mount
	Maximum Load Voltage	60 V
	Maximum Control Voltage	1.3 V
	Minimum Load Current	400 mA
	Contact Configuration	SPST
	Terminal Type	PCB Pin
	Output Device	MOSFET
	Package Style	SOP4
	Series	G3VM
	Load Voltage Range	0 → 60V ac
	Dimensions	3.9 x 4.4 x 1.9mm
	Height	1.9mm
	Operating Temperature Range	-40 → +85°C
	Maximum Operating Temperature	+85°C
	Length	3.9mm
	Minimum Operating Temperature	-40°C
	Depth	4.4mm

	Select all
	Brand Omron
	Maximum Load Current 0.4 A
	Mounting Type Surface Mount
	Maximum Load Voltage 60 V
	Maximum Control Voltage 1.3 V
	Minimum Load Current 400 mA
	Contact Configuration SPST
	Terminal Type PCB Pin
	Output Device MOSFET
	Package Style SOP4
	Series G3VM
	Load Voltage Range 0 → 60V ac
	Dimensions 3.9 x 4.4 x 1.9mm
	Height 1.9mm
	Operating Temperature Range -40 → +85°C
	Maximum Operating Temperature +85°C
	Length 3.9mm
	Minimum Operating Temperature -40°C
	Depth 4.4mm

COO (Country of Origin):: JP

G3VM-61G1 MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-61G1 MOS FET relay is part of the upgraded G3VM-S1 series offering a wealth of benefits required from maintenance free relays. SPST-NO (normally open), surface mounted package relay with 4-pins.

Features and Benefits G3VM-61G1 SSR – Solid Sate Relay.

• MOS FET Solid state relay.
• Surface mounted relay terminals.
• Contact form SPST-NO 1a (normally open).
• SOP4 (small outline).
• 4 Relay terminals.
• Load voltage 60 V.
• Load current 400 mA max.
• Maximum resistance with output ON 1 Ω.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 130 pF.
• SSR -Turn ON time 2 ms max.
• SSR -Turn OFF time 0.5 ms max.
• Dielectric strength between I/O 1500 Vrms.
• Switches analogue signals.
• RoHS Compliant.

Additional Features G3VM-61G1 General Purpose SSR – Solid State Relay.

• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Operating temperature, ambient -20°C to +65°C, no icing or condensation.
• Soldering temperature 260°C.

Other Application Examples.

• Test and measurement equipment.
• Broadband systems.
• Data loggers.
• Amusement systems.
