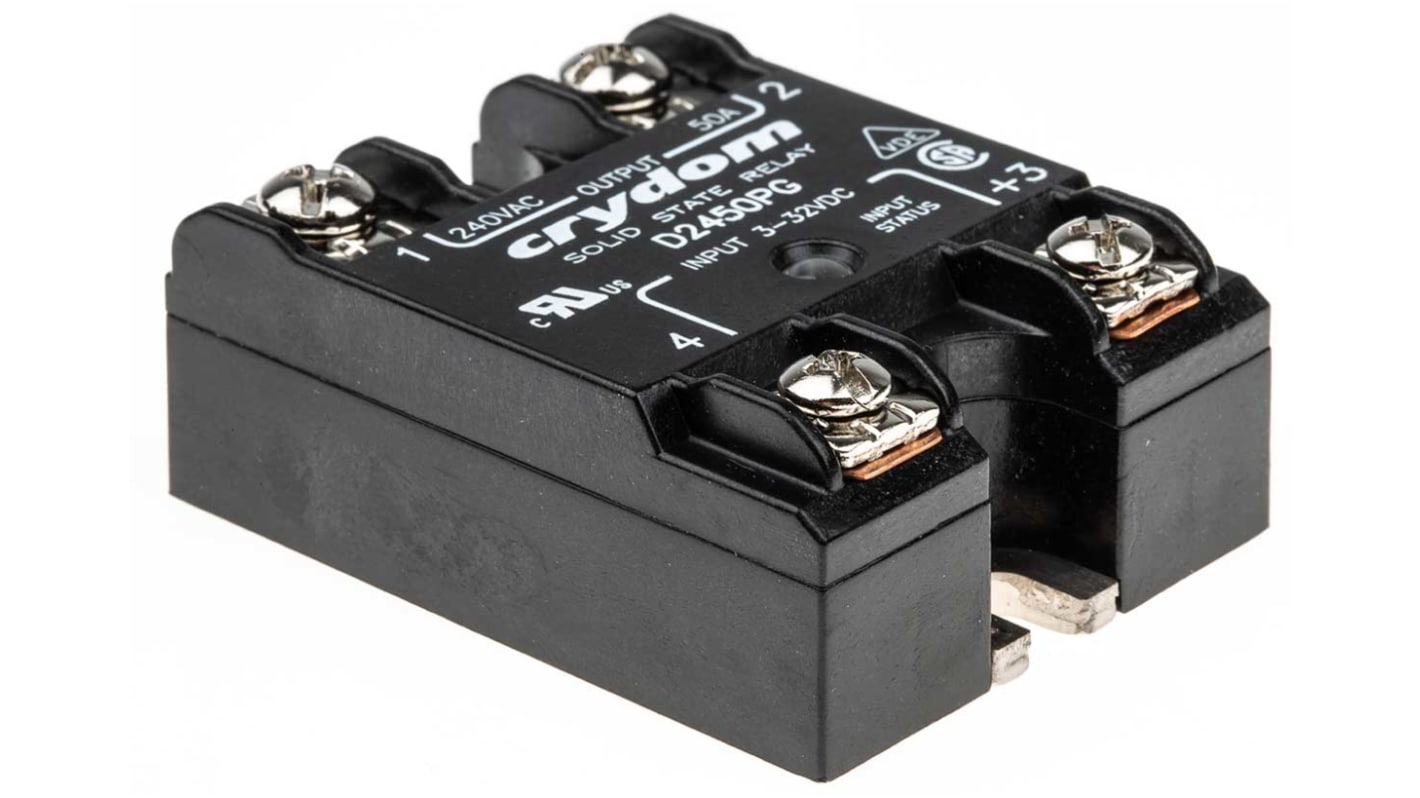

Sensata Crydom 1 Series Solid State Relay, 50 A Load, Panel Mount, 280 V rms Load, 32 V Control
- RS Stock No.:
- 358-2909
- Mfr. Part No.:
- D2450PG
- Brand:
- Sensata / Crydom
Available to back order for despatch when stock is available
Price Each
£55.47
(exc. VAT)
£66.56
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £55.47 |
5 - 9 | £52.69 |
10 - 24 | £49.92 |
25 - 49 | £47.15 |
50 + | £44.37 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 358-2909
- Mfr. Part No.:
- D2450PG
- Brand:
- Sensata / Crydom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
![](https://media.rs-online.com/t_line/L358288-01.gif)
Sensata | Crydom Solid-State Relay, 24 to 280V AC Operating Voltage Range, 50A Rated Load Current - D2450PG
Reliably control electricity in your PCB with this Sensata | Crydom solid-state relay. It handles high load currents of 50A for use in heavy-duty industrial applications. Thanks to the anti-rotation barriers on the housing, your SSR will remain securely attached to your PCB, even in the event of heavy vibrations. This unit features overvoltage protection to prevent damage to your equipment from voltage spikes. You'll find it used in lighting and heating applications.
Features & Benefits
• Screw terminals for quick fitting to a panel
• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• Input-status LED indicator for ease of monitoring
• Short turn-on time of 10ms for precise control
• Wide operating voltage range of 24 to 280V AC for versatility
• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• Input-status LED indicator for ease of monitoring
• Short turn-on time of 10ms for precise control
• Wide operating voltage range of 24 to 280V AC for versatility
What does zero-cross switching mean?
Zero-cross switching means this device only turns on when the load voltage is zero to prevent currents from rising too quickly and creating electrical noise. As noise can interrupt digital signals, a zero-cross function improves the reliability of your circuit board.
Approvals
UL Recognised; C-UL Recognised; VDE (Including Protection)
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 50 A |
Mounting Type | Panel Mount |
Maximum Load Voltage | 280 V rms |
Minimum Load Voltage | 24 V ac |
Minimum Control Voltage | 3 V dc |
Maximum Control Voltage | 32 V |
Switching Type | Zero Cross |
Control Voltage Range | 3 → 32 V dc |
Minimum Load Current | 40 mA |
Terminal Type | Screw |
Output Device | SCR |
Maximum Turn On Time | 10ms |
Series | 1 |
Load Voltage Range | 24 → 280V ac |
Dimensions | 58.4 x 45.7 x 22.9mm |
Height | 22.9mm |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +80°C |
Length | 58.4mm |
Depth | 45.7mm |
Off State Leakage Current | 10 mA |
