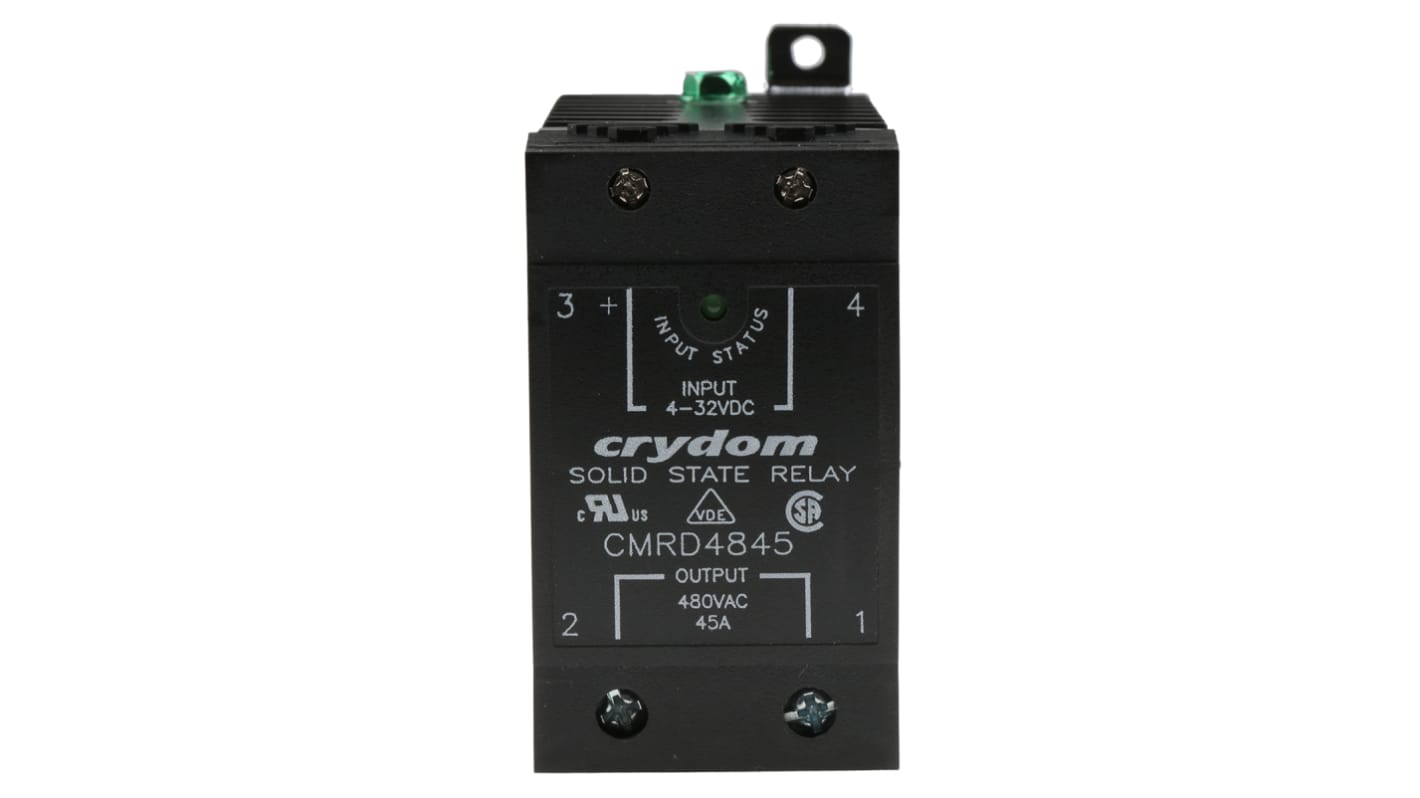

Sensata / Crydom Solid State Relay, 45 A Load, DIN Rail Mount, 530 V Load, 32 V Control
- RS Stock No.:
- 291-3037
- Mfr. Part No.:
- CMRD4845
- Brand:
- Sensata / Crydom
29 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£121.52
(exc. VAT)
£145.82
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £121.52 |
| 5 - 9 | £115.44 |
| 10 - 24 | £109.37 |
| 25 - 49 | £103.29 |
| 50 + | £97.22 |
- RS Stock No.:
- 291-3037
- Mfr. Part No.:
- CMRD4845
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
CMRD/A Series, 240/480/600Vac, ac O/P SSRs
Zero Voltage Switching
Random Turn-on (55A 240V a.c. only)
SCR Output
SPST-NO Contact arrangement
Integral heatsink and DIN rail clip
LED Status Indicator
Integral safety cover which provides a fingerproof solution
Dimensions: H109.2 x W44.5 x D76.2mm
Caged terminals (Rising Clamp)
8pF Input-Output Capacitance
Random Turn-on (55A 240V a.c. only)
SCR Output
SPST-NO Contact arrangement
Integral heatsink and DIN rail clip
LED Status Indicator
Integral safety cover which provides a fingerproof solution
Dimensions: H109.2 x W44.5 x D76.2mm
Caged terminals (Rising Clamp)
8pF Input-Output Capacitance
Note
Integral heatsink and DIN rail clip included
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL; CSA; VDE
Approvals
UL E116950; CSA LR81689; VDE 126921 UG; CE; ISO
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 45 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 530 V |
| Minimum Load Voltage | 48 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 0.15 A |
| Contact Configuration | SPST |
| Terminal Type | Screw |
| Output Device | SCR |
| Load Voltage Range | 48 → 530V ac |
| Dimensions | 109 x 44.5 x 76.2mm |
| Depth | 44.5mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Length | 109mm |
| Off State Leakage Current | 10mA rms |
| Height | 76.2mm |
