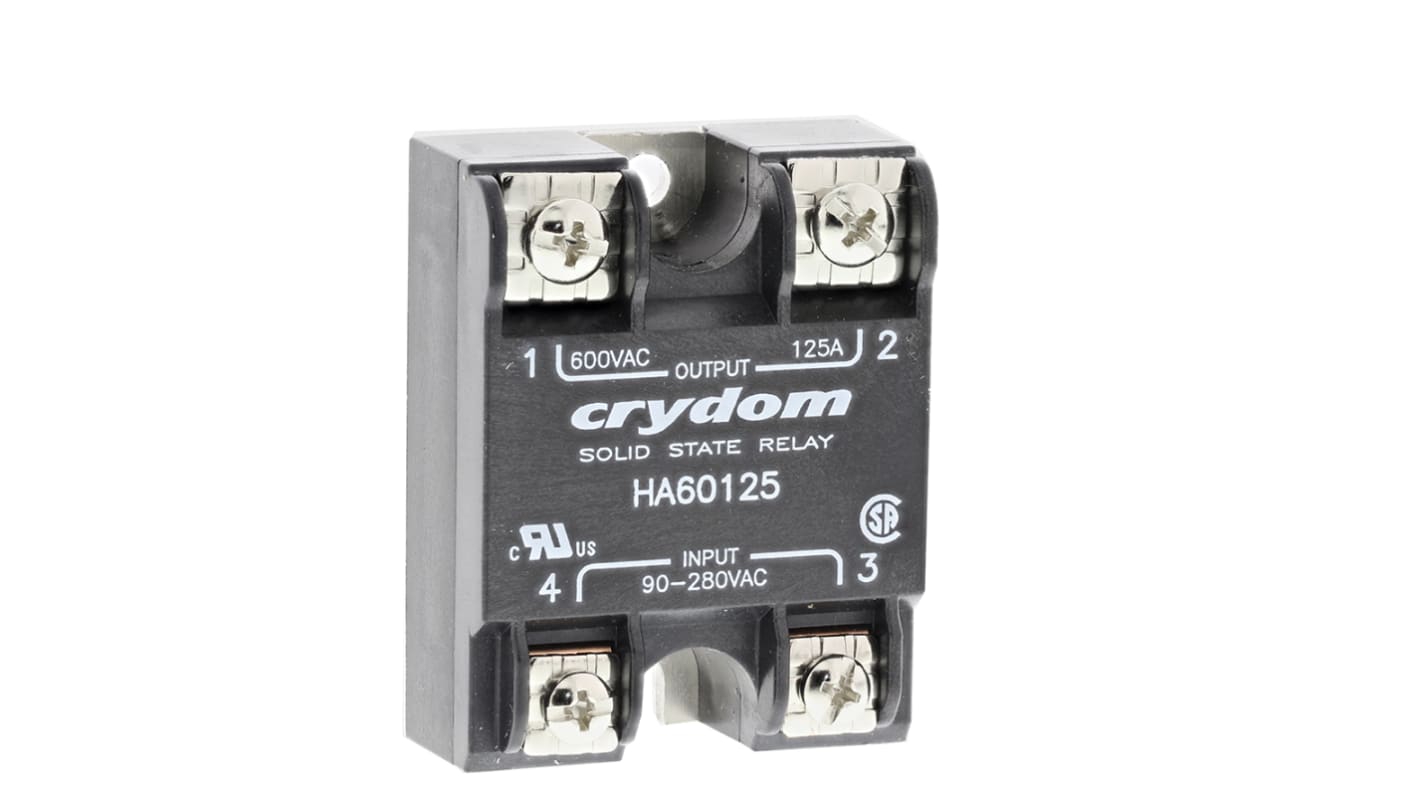

Sensata Crydom HA Series Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 280 Vrms Control
- RS Stock No.:
- 291-2292
- Mfr. Part No.:
- HA60125
- Brand:
- Sensata / Crydom
Discontinued
- RS Stock No.:
- 291-2292
- Mfr. Part No.:
- HA60125
- Brand:
- Sensata / Crydom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 125 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Maximum Control Voltage | 280 Vrms | |
| Minimum Control Voltage | 90 Vrms | |
| Switching Type | Zero Crossing | |
| Control Voltage Range | 90 → 280 Vrms | |
| Minimum Load Current | 150 mA | |
| Terminal Type | Screw | |
| Output Device | SCR | |
| Series | HA | |
| Load Voltage Range | 48 → 660V ac | |
| Maximum Turn On Time | 20 ms | |
| Dimensions | 58.4 x 45.7 x 23mm | |
| Height | 23mm | |
| Special Features | Zero Turn-on | |
| Maximum Operating Temperature | +80°C | |
| Length | 58.4mm | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +80°C | |
| Depth | 45.7mm | |
| Capacitance | 8pF | |
| Off State Leakage Current | 1 mArms | |
| Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 125 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 48 V ac | ||
Maximum Control Voltage 280 Vrms | ||
Minimum Control Voltage 90 Vrms | ||
Switching Type Zero Crossing | ||
Control Voltage Range 90 → 280 Vrms | ||
Minimum Load Current 150 mA | ||
Terminal Type Screw | ||
Output Device SCR | ||
Series HA | ||
Load Voltage Range 48 → 660V ac | ||
Maximum Turn On Time 20 ms | ||
Dimensions 58.4 x 45.7 x 23mm | ||
Height 23mm | ||
Special Features Zero Turn-on | ||
Maximum Operating Temperature +80°C | ||
Length 58.4mm | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +80°C | ||
Depth 45.7mm | ||
Capacitance 8pF | ||
Off State Leakage Current 1 mArms | ||
- COO (Country of Origin):
- MX
Sensata | Crydom Solid-State Relay, 90 to 280V AC Control Voltage Range, 125A Rated Load Current - HA Series - HA60125
Take charge of your automated equipment with this solid-state relay from Sensata | Crydom. It switches power on and off in a flash to give you full control over industrial circuits. The highly conductive DBC substrate ensures efficient heat dissipation, so it doesn't break a sweat in challenging applications. This relay has no moving parts, so there's minimal risk of wear. It's a breeze to wire without any special tools, thanks to its screw terminals. An SSR like this one is commonly used in medical equipment and lighting systems.
Features & Benefits
• Zero-cross switching means it turns on when the load voltage is near zero for maximum efficiency and reduced noise
• Rated load current of 125A for use in heavy-duty applications
• Anti-rotation barriers prevent movement during heavy vibrations
• Performs reliably at temperatures between -40°C and +80°C for use in harsh environments
• Rated load current of 125A for use in heavy-duty applications
• Anti-rotation barriers prevent movement during heavy vibrations
• Performs reliably at temperatures between -40°C and +80°C for use in harsh environments
What's the rated load current of this SSR?
It has a rated load current of 125A, so it packs a punch in heavy-duty applications.
Approvals
UL; C-UL recognised; VDE
