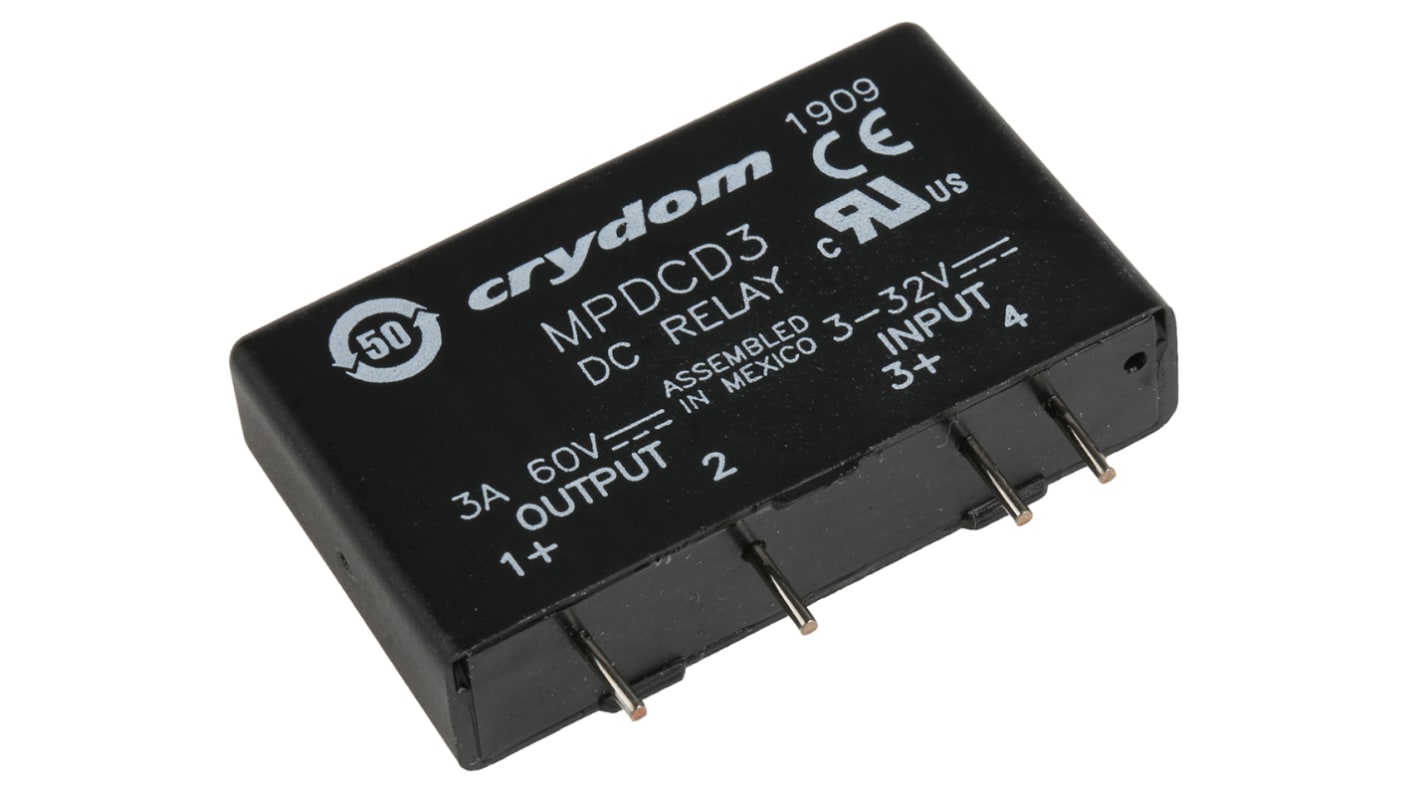

Sensata / Crydom DRA1 Series Solid State Relay, 3 A Load, PCB Mount, 60 V dc Load, 32 V dc Control
- RS Stock No.:
- 241-3975
- Mfr. Part No.:
- MPDCD3
- Brand:
- Sensata / Crydom
103 In stock - FREE next working day delivery available
Added
Price Each
£27.10
(exc. VAT)
£32.52
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £27.10 |
| 10 - 99 | £24.44 |
| 100 + | £22.74 |
- RS Stock No.:
- 241-3975
- Mfr. Part No.:
- MPDCD3
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
MP – SIL PCB Mount 3A dc
High transient rating
High noise immunity
Operating temperature range: -40 to +80°C
Dimensions: 25x10x44 mm
High noise immunity
Operating temperature range: -40 to +80°C
Dimensions: 25x10x44 mm
Approvals
UL recognised component for Canada and US
Sensata | Crydom Solid-State Relay, 4kV Dielectric Strength, DIN Rail Mounting - DRA1 Series - MPDCD3
Choose this solid-state relay from Sensata | Crydom to safely control low-voltage loads on your DC networks. As it has no moving parts, it's resistant to wear, giving you reliable long-term performance. Thanks to its cage-style screw terminals, it's simple to connect wires to this unit. A thermally conductive epoxy housing provides resistance to impact and abrasion, making it suitable for use in harsh environments. You'll find this component used in communication devices and lighting systems.
Features & Benefits
• Wide operating temperature range between -40°C and +80°C for use in demanding conditions
• Low I/O capacitance of 8pF for high-integrity signal transmission
• Maximum turn-on and turn-off time of 0.1ms for a quick response to input signals
• Low I/O capacitance of 8pF for high-integrity signal transmission
• Maximum turn-on and turn-off time of 0.1ms for a quick response to input signals
How do I mount this relay?
This relay is designed for mounting on a DIN rail, making it quick and simple to install without the need for specialised tools.
How heavy is this relay?
This relay has a light weight of just 36.4g, so it will place minimal strain on your equipment.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 3 A |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 60 V dc |
| Minimum Load Voltage | 3 V dc |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 0.02 A |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Maximum Turn On Time | 0.1 MS |
| Load Voltage Range | 3 → 60V dc |
| Series | DRA1 |
| Dimensions | 43.1 x 10.2 x 25.4mm |
| Maximum Operating Temperature | +80°C |
| Standards Met | UL |
| Height | 25.4mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Length | 43.1mm |
| Off State Leakage Current | 5 mArms |
| Depth | 10.2mm |
| Capacitance | 8pF |
