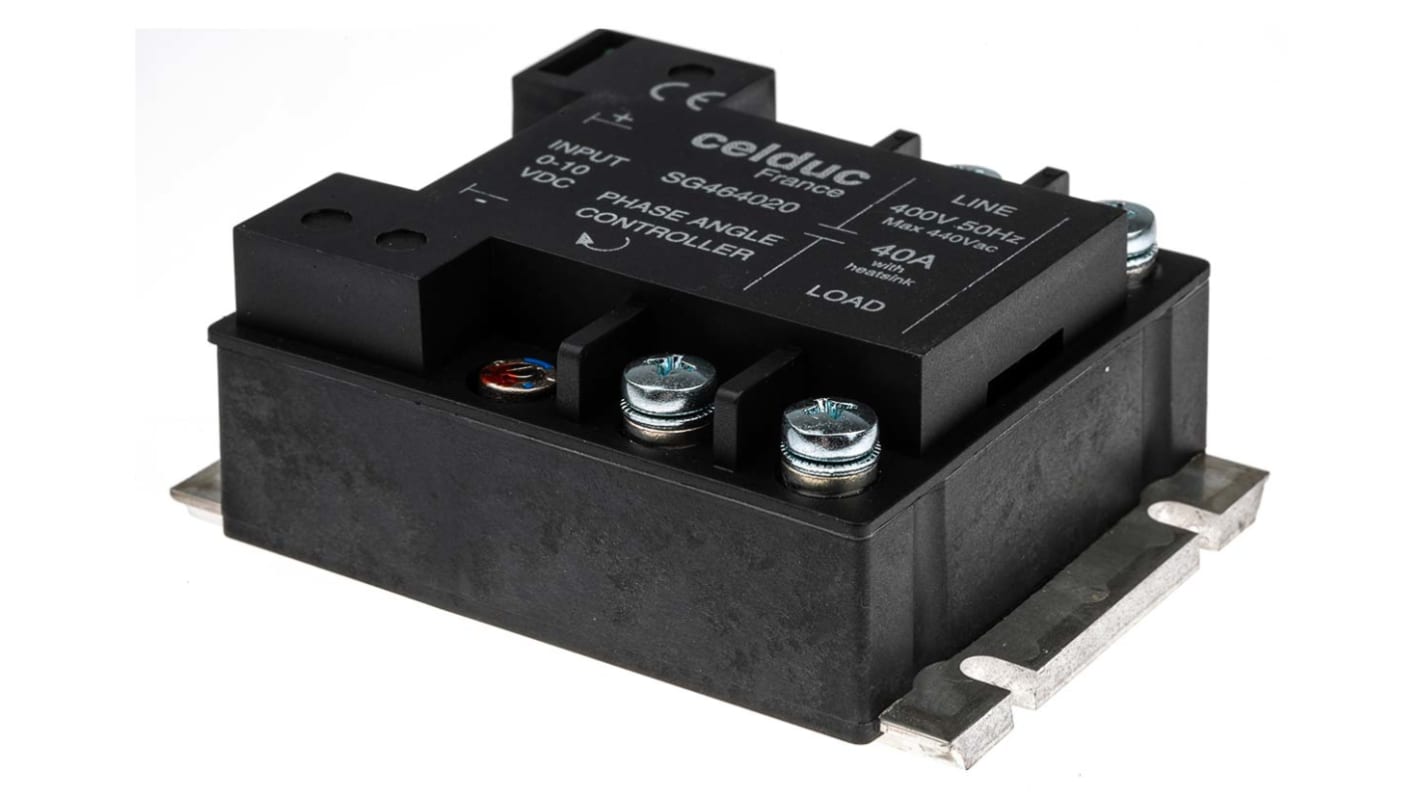

Celduc SG4 Series Solid State Relay, 40 A Load, Panel Mount, 460 V rms Load, 10 V dc Control
- RS Stock No.:
- 231-1043
- Mfr. Part No.:
- SG464020
- Brand:
- Celduc
Bulk discount available
Subtotal (1 unit)*
£259.26
(exc. VAT)
£311.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £259.26 |
| 5 - 9 | £248.87 |
| 10 + | £243.70 |
*price indicative
- RS Stock No.:
- 231-1043
- Mfr. Part No.:
- SG464020
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 40 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 460 V rms | |
| Minimum Load Voltage | 200 V ac | |
| Minimum Control Voltage | 0 V | |
| Maximum Control Voltage | 10 V dc | |
| Switching Type | Phase Angle | |
| Control Voltage Range | 0 → 10 V dc | |
| Range | SG4 | |
| Minimum Load Current | 10 mA | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | Thyristor | |
| Relay Type | Single Phase angle controller | |
| Load Voltage Range | 200 → 400V ac | |
| Maximum Turn On Time | 10ms | |
| Series | SG4 | |
| Dimensions | 100 x 73.5 x 39.5mm | |
| Depth | 73.5mm | |
| Operating Temperature Range | -40 → +85°C | |
| Standards Met | CE, EAC | |
| Minimum Operating Temperature | -40°C | |
| Height | 39.5mm | |
| Off State Leakage Current | 5 mA | |
| Length | 100mm | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 40 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 460 V rms | ||
Minimum Load Voltage 200 V ac | ||
Minimum Control Voltage 0 V | ||
Maximum Control Voltage 10 V dc | ||
Switching Type Phase Angle | ||
Control Voltage Range 0 → 10 V dc | ||
Range SG4 | ||
Minimum Load Current 10 mA | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device Thyristor | ||
Relay Type Single Phase angle controller | ||
Load Voltage Range 200 → 400V ac | ||
Maximum Turn On Time 10ms | ||
Series SG4 | ||
Dimensions 100 x 73.5 x 39.5mm | ||
Depth 73.5mm | ||
Operating Temperature Range -40 → +85°C | ||
Standards Met CE, EAC | ||
Minimum Operating Temperature -40°C | ||
Height 39.5mm | ||
Off State Leakage Current 5 mA | ||
Length 100mm | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- FR
Phase Angle and Frequency Burst Regulators
SG5 relays with proportional control have an analogue input isolated from the mains allowing a proportional variation of the operating duty cycle at this input through the generation of frequency bursts.
Applications: heating regulation.- Ve = 0 V → t/T = 0%
- Ve = 5 V → t/T = 50%
- Ve = 10 V → t/T = 100%.
The SG4 models have an analogue input isolated from the mains allowing a proportional variation at this input of the switching instant on the sine wave.
Applications: motor speed variation, dimmable lighting.
Specific documentation available on request.
Applications: heating regulation.- Ve = 0 V → t/T = 0%
- Ve = 5 V → t/T = 50%
- Ve = 10 V → t/T = 100%.
The SG4 models have an analogue input isolated from the mains allowing a proportional variation at this input of the switching instant on the sine wave.
Applications: motor speed variation, dimmable lighting.
Specific documentation available on request.
Proportional and Power
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
