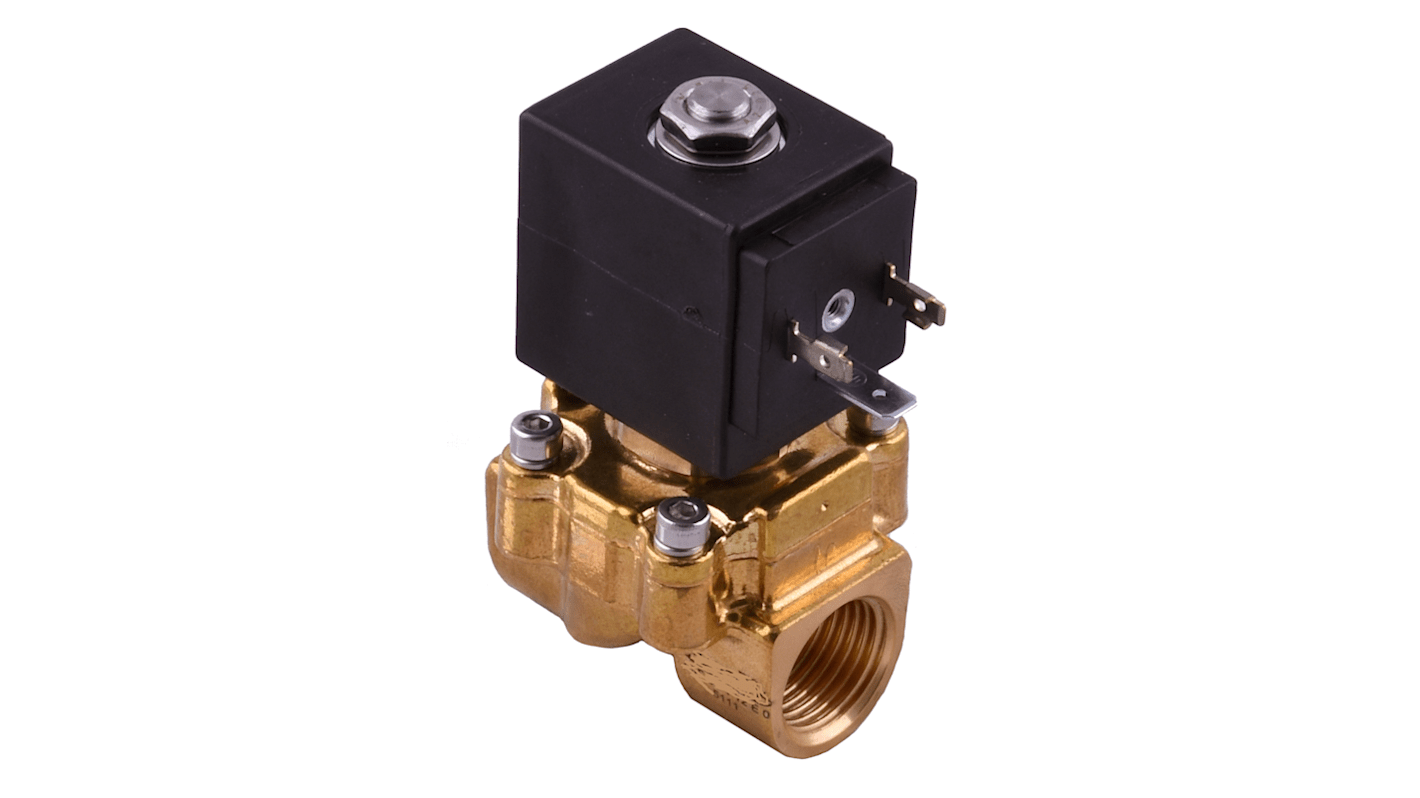

RS PRO Solenoid Valve, 2 port(s) , NC, 24 V, 1in
- RS Stock No.:
- 255-4174
- Brand:
- RS PRO
Save 20% when you buy 100 units
Subtotal (1 unit)*
£119.89
(exc. VAT)
£143.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 01 October 2025
- Plus 20 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £119.89 |
| 10 - 99 | £117.49 |
| 100 + | £95.91 |
*price indicative
- RS Stock No.:
- 255-4174
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 24 V | |
| Number of Ports | 2 | |
| Connection Size | 1in | |
| Connection | 1 in G Female | |
| Operation | Solenoid | |
| Default Valve Position | NC | |
| Suitable Applications | Air, Gas, Liquid, Oil, Water | |
| Type | 2/2 | |
| Orifice Diameter | 25mm | |
| Body Material | Brass | |
| Maximum Working Pressure | 4 bar | |
| Operating Temperature Range | -10 → +90°C | |
| Servo Assist | No | |
| Thread Standard or Connection Type | G | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +90°C | |
| Connection Gender | Female | |
| Flow Factor Kv | 6.63m³/h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 24 V | ||
Number of Ports 2 | ||
Connection Size 1in | ||
Connection 1 in G Female | ||
Operation Solenoid | ||
Default Valve Position NC | ||
Suitable Applications Air, Gas, Liquid, Oil, Water | ||
Type 2/2 | ||
Orifice Diameter 25mm | ||
Body Material Brass | ||
Maximum Working Pressure 4 bar | ||
Operating Temperature Range -10 → +90°C | ||
Servo Assist No | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +90°C | ||
Connection Gender Female | ||
Flow Factor Kv 6.63m³/h | ||
- COO (Country of Origin):
- IT
RS PRO Guided Diaphragm Solenoid Valve (2/2 NC)
A simple and compact diaphragm action solenoid valve for the regulation of fluid and air in industrial systems and suitable for use in the food industry.
Featuring a standard Female G thread type and a default closed valve position (NC) the diaphragm solenoid valve is quick and easy to install and suitable for a wide range of applications.
Constructed from Brass for high levels of corrosion and rust resistant and featuring NBR seals for excellent resistance to water, heat, acids and other chemicals.
Finished with Class H coils inside to withstand higher temperatures and the result is a professional hardwearing solenoid valve that will provide years of reliable service.
Features and Benefits
- Diaphragm operation
- Compact design
- Class H coils
- NBR seals
- Power rating of 14W
- Working pressure range of 0 – 4 bar
- Dimensions of 72.5x66x105 mm
Suitable Applications
- Water & neutral liquids
- Air & inert gases
- Oils
- Steam
Approvals and Standards: EN1127, EN80079-36, EN80079-37, EU Declaration of Conformity, UE Declaration of Conformity.
