Subtotal (1 unit)*
£128.35
(exc. VAT)
£154.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £128.35 |
*price indicative
- RS Stock No.:
- 176-2047
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Ports | 2 | |
| Connection Size | 3/4in | |
| Connection | 3/4 in G Female | |
| Operation | Solenoid | |
| Default Valve Position | NC | |
| Type | 2/2 | |
| Orifice Diameter | 18mm | |
| Body Material | Brass | |
| Maximum Working Pressure | 11.2 bar | |
| Operating Temperature Range | -10 → +90 °C | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +90°C | |
| Connection Gender | Female | |
| Thread Standard or Connection Type | G | |
| Flow Factor Kv | 5.56m³/h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Ports 2 | ||
Connection Size 3/4in | ||
Connection 3/4 in G Female | ||
Operation Solenoid | ||
Default Valve Position NC | ||
Type 2/2 | ||
Orifice Diameter 18mm | ||
Body Material Brass | ||
Maximum Working Pressure 11.2 bar | ||
Operating Temperature Range -10 → +90 °C | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +90°C | ||
Connection Gender Female | ||
Thread Standard or Connection Type G | ||
Flow Factor Kv 5.56m³/h | ||
- COO (Country of Origin):
- IT

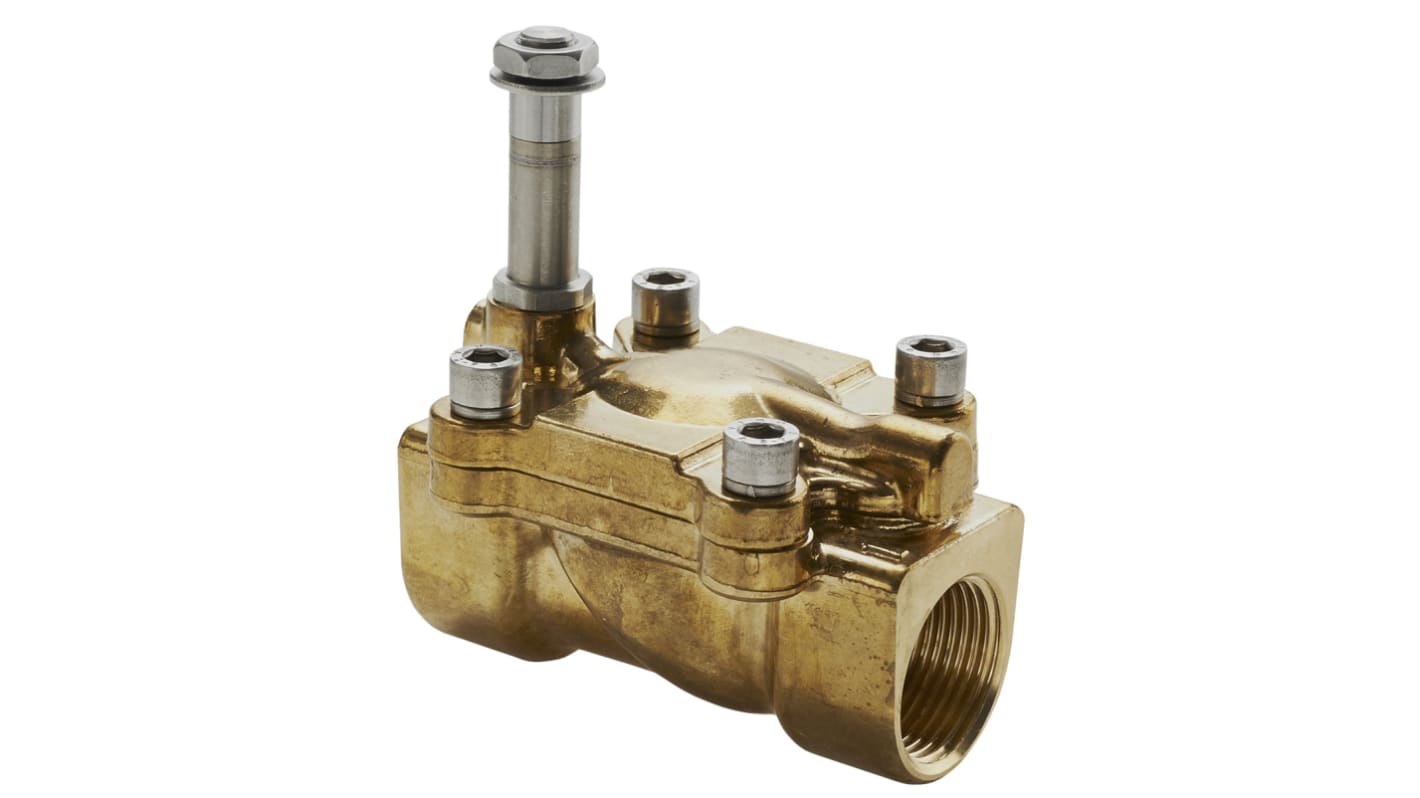

RS Pro indirect acting solenoid valves. Normally open and normally closed versions available. Solenoids available separately
- Body: Brass
- Seals: NBR, FKM variants available
- Core: Stainless steel
- Springs: Stainless steel
- Maximum allowable pressure: 25 bar
- Operating temperature: - 10 °C to + 80 °C
- Body: Brass
- Seals: NBR, FKM variants available
- Core: Stainless steel
- Springs: Stainless steel
- Maximum allowable pressure: 25 bar
- Operating temperature: - 10 °C to + 80 °C
