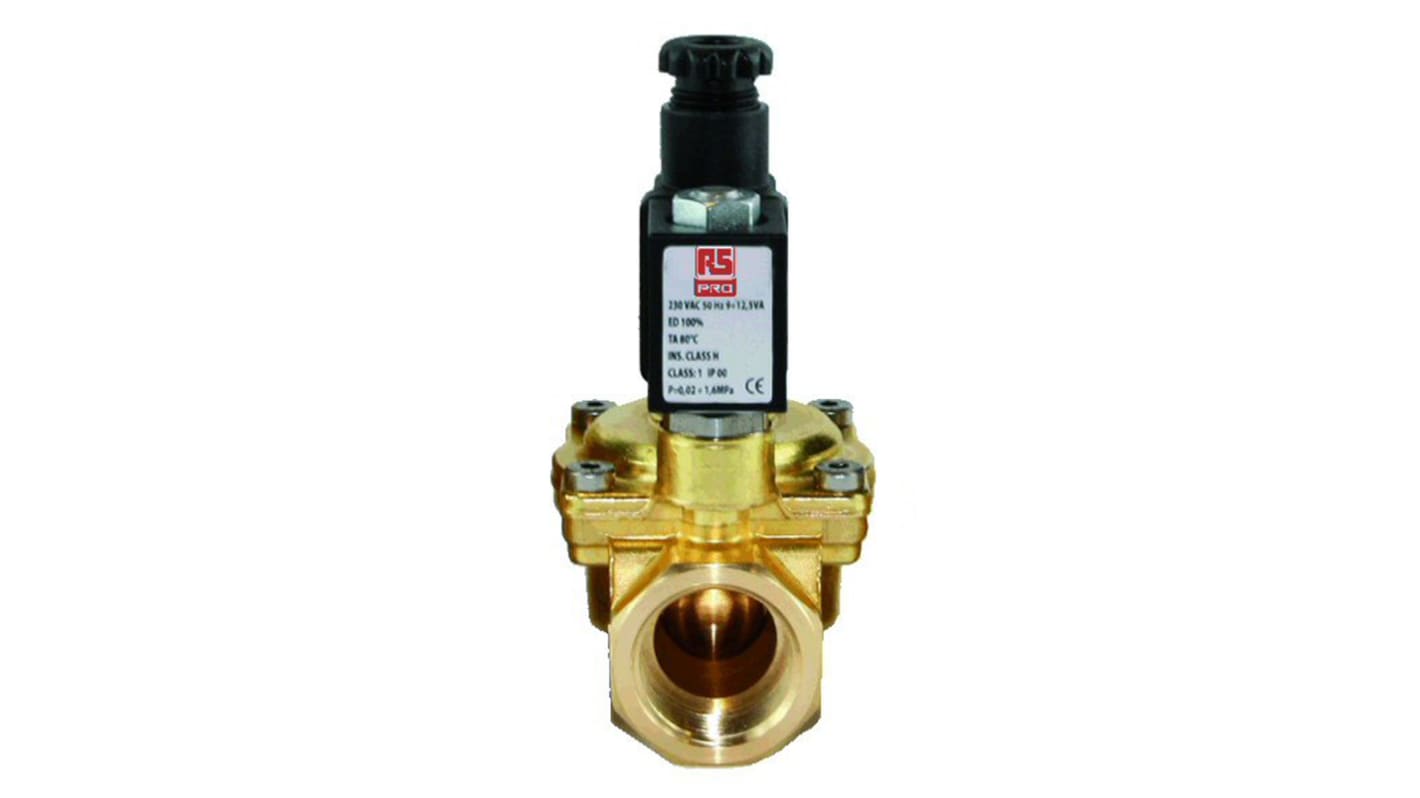

RS PRO Solenoid Valve, 2 port(s) , NC, 220 V ac
- RS Stock No.:
- 144-0808
- Brand:
- RS PRO
Subtotal (1 unit)*
£412.57
(exc. VAT)
£495.08
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £412.57 |
*price indicative
- RS Stock No.:
- 144-0808
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 220 V ac | |
| Number of Ports | 2 | |
| Connection | 2 in G | |
| Operation | Pilot | |
| Default Valve Position | NC | |
| Suitable Applications | Gas, Liquid | |
| Body Material | Brass | |
| Series | SOL | |
| Maximum Working Pressure | 10 bar | |
| Operating Temperature Range | -20 → +90 °C | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -20°C | |
| Thread Standard or Connection Type | G | |
| Flow Factor Kv | 26m³/h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 220 V ac | ||
Number of Ports 2 | ||
Connection 2 in G | ||
Operation Pilot | ||
Default Valve Position NC | ||
Suitable Applications Gas, Liquid | ||
Body Material Brass | ||
Series SOL | ||
Maximum Working Pressure 10 bar | ||
Operating Temperature Range -20 → +90 °C | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -20°C | ||
Thread Standard or Connection Type G | ||
Flow Factor Kv 26m³/h | ||
- COO (Country of Origin):
- IT
RS Pro Industrial Solenoid Valves
The RS Pro series of solenoid valves are a range of 2 way valves which are pilot operated. They can be used for liquid or gas and range in size from 3/8 inch to 2 inch.
Features and Benefits
• Made from forged brass
• Pilot operated
• Choice of 230 V ac or 24 V dc operation
• 2 port, normally open (NO) and normally closed (NC)
• Liquid or gas use
• Full range of sizes from 3/8 in to 2 in
Product Application Information
Ideal for fluid control uses in a wide range of industrial and commercial applications such as;
Autoclaves
Cooling plant and equipment
Watering plant
Fire extinguishing systems
Hygienic and sanitary
Water jet machinery
