RS PRO Solenoid Valve, 2 port(s) , NC, 24 V dc
- RS Stock No.:
- 144-0801
- Brand:
- RS PRO
Subtotal (1 unit)*
£137.62
(exc. VAT)
£165.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 15 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £137.62 |
*price indicative
- RS Stock No.:
- 144-0801
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 24 V dc | |
| Number of Ports | 2 | |
| Connection | 1 in G | |
| Operation | Pilot | |
| Default Valve Position | NC | |
| Suitable Applications | Gas, Liquid | |
| Series | SOL | |
| Body Material | Brass | |
| Maximum Working Pressure | 12 bar | |
| Operating Temperature Range | -20 → +90 °C | |
| Thread Standard or Connection Type | G | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +90°C | |
| Flow Factor Kv | 11m³/h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 24 V dc | ||
Number of Ports 2 | ||
Connection 1 in G | ||
Operation Pilot | ||
Default Valve Position NC | ||
Suitable Applications Gas, Liquid | ||
Series SOL | ||
Body Material Brass | ||
Maximum Working Pressure 12 bar | ||
Operating Temperature Range -20 → +90 °C | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +90°C | ||
Flow Factor Kv 11m³/h | ||
- COO (Country of Origin):
- IT

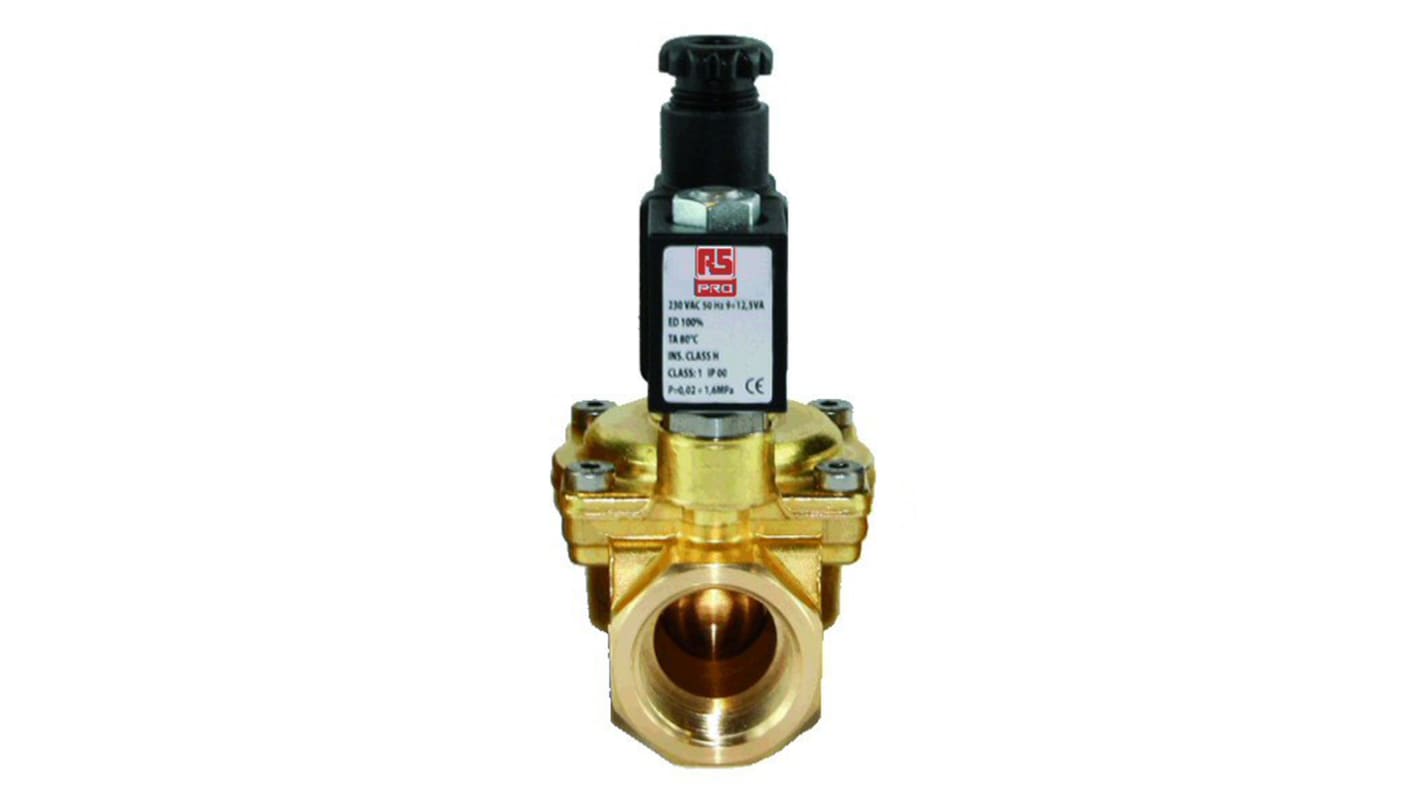

RS PRO Solenoid Valve, 2 Port, NC, 24 V DC
Control the flow of fluid in a hydraulic system with this solenoid valve from RS PRO. It offers high levels of efficiency and reliability in hydraulic applications as the solenoid instantly reacts to turn electrical current into mechanical action.
The valve's automatic operation eliminates the need to manually open and close valves, saving time and reducing the risk of machine failure. The unit's forged brass body has a high tensile strength, so it won't be damaged even when subjected to extreme pressure.
As it works with pressurised air and gas, a valve like this one is useful in pneumatic systems. It's commonly used in industrial and commercial equipment, including autoclaves and fire extinguishing systems. The component complies with Restriction of Hazardous Substances (RoHS) standards, so it includes only trace levels of any harmful materials.
The valve's automatic operation eliminates the need to manually open and close valves, saving time and reducing the risk of machine failure. The unit's forged brass body has a high tensile strength, so it won't be damaged even when subjected to extreme pressure.
As it works with pressurised air and gas, a valve like this one is useful in pneumatic systems. It's commonly used in industrial and commercial equipment, including autoclaves and fire extinguishing systems. The component complies with Restriction of Hazardous Substances (RoHS) standards, so it includes only trace levels of any harmful materials.
Features and Benefits
- Brass body material
- Connection size of 1 in
- NC (normally closed) default valve position
- Flow factor (Kv) of 11 m³/h
- Maximum working pressure of 12 bar
- Two ports
- Operating temperature range of -20°C to +90°C
- Pilot operated
- Suitable for gas and liquid
- Supply voltage of 24 V DC
- G thread
