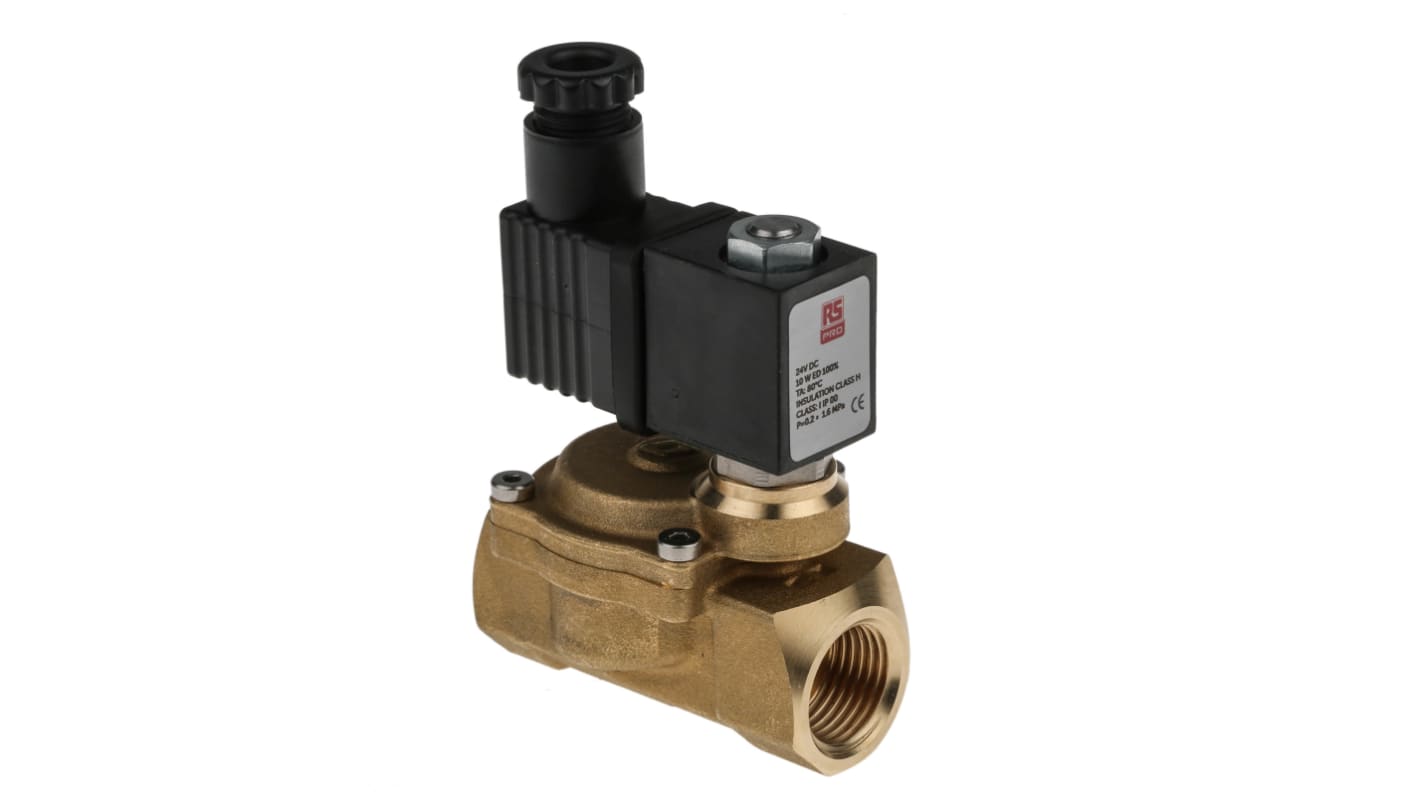

RS PRO Solenoid Valve, 2 port(s) , NC, 24 V dc
- RS Stock No.:
- 144-0797
- Brand:
- RS PRO
Subtotal (1 unit)*
£85.43
(exc. VAT)
£102.52
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 3 left, ready to ship
- Plus 36 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.43 |
*price indicative
- RS Stock No.:
- 144-0797
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 24 V dc | |
| Number of Ports | 2 | |
| Connection | 1/2 in G | |
| Operation | Pilot | |
| Default Valve Position | NC | |
| Suitable Applications | Gas, Liquid | |
| Body Material | Brass | |
| Series | SOL | |
| Maximum Working Pressure | 15 bar | |
| Operating Temperature Range | -20 → +90 °C | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -20°C | |
| Thread Standard or Connection Type | G | |
| Flow Factor Kv | 3.8m³/h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 24 V dc | ||
Number of Ports 2 | ||
Connection 1/2 in G | ||
Operation Pilot | ||
Default Valve Position NC | ||
Suitable Applications Gas, Liquid | ||
Body Material Brass | ||
Series SOL | ||
Maximum Working Pressure 15 bar | ||
Operating Temperature Range -20 → +90 °C | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -20°C | ||
Thread Standard or Connection Type G | ||
Flow Factor Kv 3.8m³/h | ||
- COO (Country of Origin):
- CN
RS PRO Solenoid Valve, 2 port , NC, 24 V DC
This RS PRO solenoid valve lets you control the flow of liquids or gases in a range of industrial settings. Solenoid valves are electromechanically operated, making them perfect for use where the flow of gas or fluid needs to be automatically managed and monitored.
Solenoid valves are used in fluid-powered pneumatic and hydraulic equipment that requires a pilot-operated two-way valve. The valve is made from forged brass to ensure your irrigation, sprinkler and fire extinguishing systems remain rust-free.
This two-port NC (normally closed) valve is 1/2 inch in size and has a voltage rating of 24 V DC. The valve’s ideal operating temperature ranges from -20°C to +90°C and it has a maximum working pressure of 15 bar. This device conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.
Solenoid valves are used in fluid-powered pneumatic and hydraulic equipment that requires a pilot-operated two-way valve. The valve is made from forged brass to ensure your irrigation, sprinkler and fire extinguishing systems remain rust-free.
This two-port NC (normally closed) valve is 1/2 inch in size and has a voltage rating of 24 V DC. The valve’s ideal operating temperature ranges from -20°C to +90°C and it has a maximum working pressure of 15 bar. This device conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.
Features and Benefits
• Made from forged brass
• 230 V AC or 24 V DC operation
• Pilot-operated, two-port valve (normally closed)
• Suitable for liquid or gas
• Available in sizes of 3/8 in to 2 in
• Kv Flow Factor of 3.8 m³/h
• ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (Electrostatic Control Standards) compliant
• 230 V AC or 24 V DC operation
• Pilot-operated, two-port valve (normally closed)
• Suitable for liquid or gas
• Available in sizes of 3/8 in to 2 in
• Kv Flow Factor of 3.8 m³/h
• ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (Electrostatic Control Standards) compliant
