RS PRO Solenoid Valve, 2 port(s) , NC, 220 V ac
- RS Stock No.:
- 144-0795
- Brand:
- RS PRO
29 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£64.94
(exc. VAT)
£77.93
(inc. VAT)
| Units | Per unit |
| 1 + | £64.94 |
- RS Stock No.:
- 144-0795
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

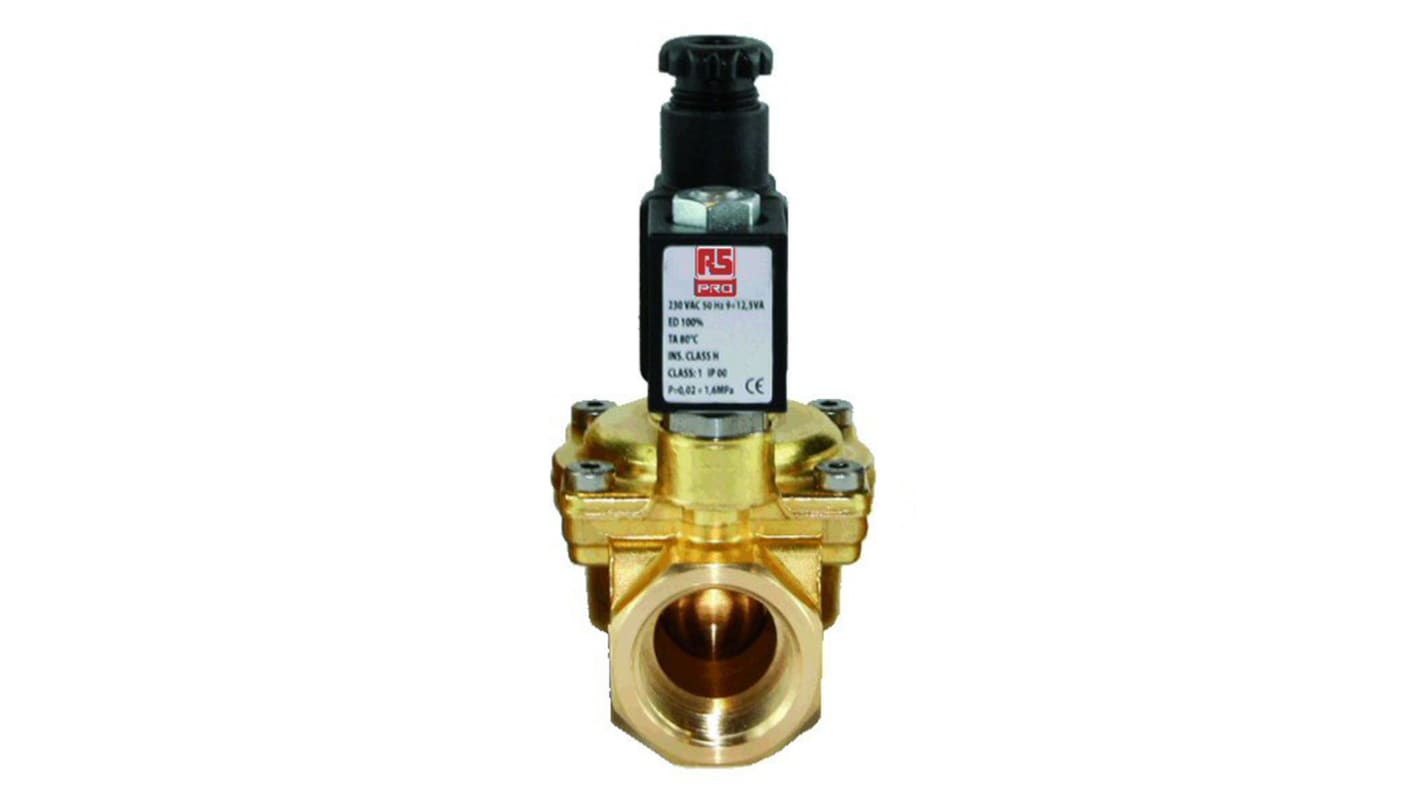

RS PRO Solenoid Valve, 2 Port, NC, 220 V AC
Use this solenoid valve from RS PRO to control the flow of fluid in a hydraulic system. It's well suited to industrial and commercial equipment, such as autoclaves and fire extinguishing systems.
The instantly reacting solenoid quickly converts electrical current into a mechanical movement to offer high levels of reliability and efficiency in hydraulic applications. Its automatic operation eliminates the need to manually open or close valves, which saves on time and reduces the risk of machine failure. The unit has an extremely strong forged brass body with a high tensile strength, so it can withstand extreme pressure with no adverse effects.
A valve like this one is useful in pneumatic systems, as it's compatible with compressed air and gas. This component is Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal amounts of any harmful materials.
The instantly reacting solenoid quickly converts electrical current into a mechanical movement to offer high levels of reliability and efficiency in hydraulic applications. Its automatic operation eliminates the need to manually open or close valves, which saves on time and reduces the risk of machine failure. The unit has an extremely strong forged brass body with a high tensile strength, so it can withstand extreme pressure with no adverse effects.
A valve like this one is useful in pneumatic systems, as it's compatible with compressed air and gas. This component is Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal amounts of any harmful materials.
Features and Benefits
• Brass body material
• Connection size of 3/8 in
• NC (normally closed) default valve position
• Flow factor (Kv) of 1.7 m³/h
• Maximum working pressure of 15 bar
• Two ports
• Operating temperature range of -20°C to +90°C
• Pilot operated
• Suitable for gas and liquid
• Supply voltage of 220 V AC
• G thread
• Connection size of 3/8 in
• NC (normally closed) default valve position
• Flow factor (Kv) of 1.7 m³/h
• Maximum working pressure of 15 bar
• Two ports
• Operating temperature range of -20°C to +90°C
• Pilot operated
• Suitable for gas and liquid
• Supply voltage of 220 V AC
• G thread
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 220 V ac |
| Number of Ports | 2 |
| Connection | G 3/8 |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Gas, Liquid |
| Body Material | Brass |
| Series | SOL |
| Maximum Working Pressure | 15 bar |
| Operating Temperature Range | -20 → +90 °C |
| Maximum Operating Temperature | +90°C |
| Thread Standard or Connection Type | G |
| Minimum Operating Temperature | -20°C |
| Flow Factor Kv | 1.7m³/h |
