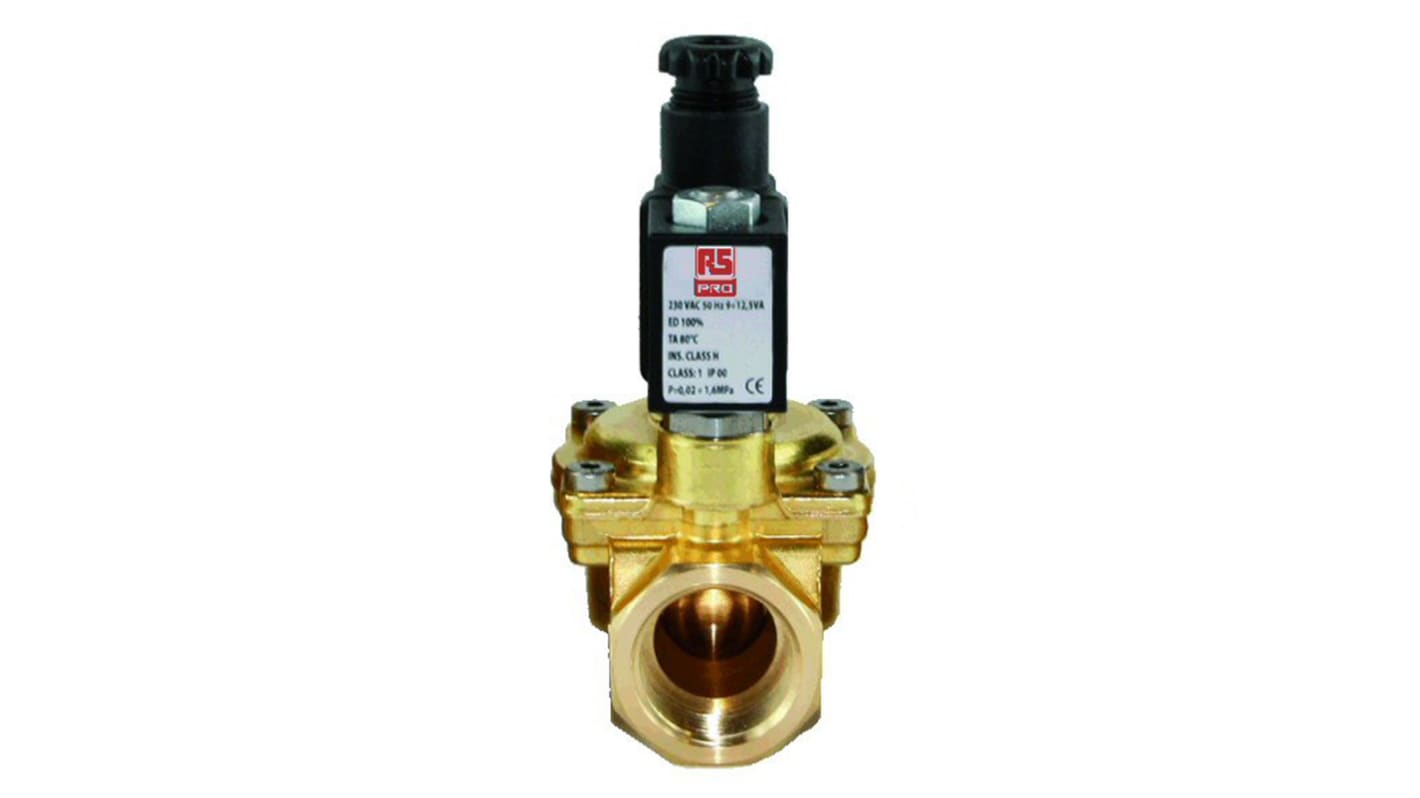

RS PRO Solenoid Valve, 2 port(s) , NC, 24 V dc
- RS Stock No.:
- 144-0794
- Brand:
- RS PRO
Subtotal (1 unit)*
£83.83
(exc. VAT)
£100.60
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 23 left, ready to ship
- Plus 33 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.83 |
*price indicative
- RS Stock No.:
- 144-0794
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 24 V dc | |
| Number of Ports | 2 | |
| Connection | G 3/8 | |
| Operation | Pilot | |
| Default Valve Position | NC | |
| Suitable Applications | Gas, Liquid | |
| Body Material | Brass | |
| Series | SOL | |
| Maximum Working Pressure | 15 bar | |
| Operating Temperature Range | -20 → +90 °C | |
| Thread Standard or Connection Type | G | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +90°C | |
| Flow Factor Kv | 1.7m³/h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 24 V dc | ||
Number of Ports 2 | ||
Connection G 3/8 | ||
Operation Pilot | ||
Default Valve Position NC | ||
Suitable Applications Gas, Liquid | ||
Body Material Brass | ||
Series SOL | ||
Maximum Working Pressure 15 bar | ||
Operating Temperature Range -20 → +90 °C | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +90°C | ||
Flow Factor Kv 1.7m³/h | ||
- COO (Country of Origin):
- IT
RS PRO Solenoid Valve, 2 port, NC, 24 V DC, 3/8 inch
Solenoid valves are electromechanically operated components used to control the rate of flow in systems powered by liquids or air. These two-way valves can be used anywhere that gas or fluid flow needs to be automatically controlled, such as in fire extinguishing, sprinkler or water jet systems.
This RS PRO solenoid valve has a connection size of 3/8 inch (other connection sizes are also available). It's made from forged brass which will protect your system from rust. It's a two-port normally closed (NC) valve and offers the choice of 230 V AC or 24 V DC coils to suit the required voltage of the system. The valve will operate in a temperature range of -20°C to +90°C and its maximum working pressure is 15 bar.
The valve meets the requirements of European and US ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.
This RS PRO solenoid valve has a connection size of 3/8 inch (other connection sizes are also available). It's made from forged brass which will protect your system from rust. It's a two-port normally closed (NC) valve and offers the choice of 230 V AC or 24 V DC coils to suit the required voltage of the system. The valve will operate in a temperature range of -20°C to +90°C and its maximum working pressure is 15 bar.
The valve meets the requirements of European and US ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.
Features and Benefits
• Solenoid valve
• Made from forged brass
• 230 V AC or 24 V DC operation
• Pilot-operated, two-port valve (normally closed)
• Suitable for liquid or gas
• Connection size 3/8 in
• Kv Flow Factor of 1.7 m³/h
• Maximum working pressure of 15 bar
• Operating temperature range of -20°C to +90°C
• G connection type
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
• Made from forged brass
• 230 V AC or 24 V DC operation
• Pilot-operated, two-port valve (normally closed)
• Suitable for liquid or gas
• Connection size 3/8 in
• Kv Flow Factor of 1.7 m³/h
• Maximum working pressure of 15 bar
• Operating temperature range of -20°C to +90°C
• G connection type
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
