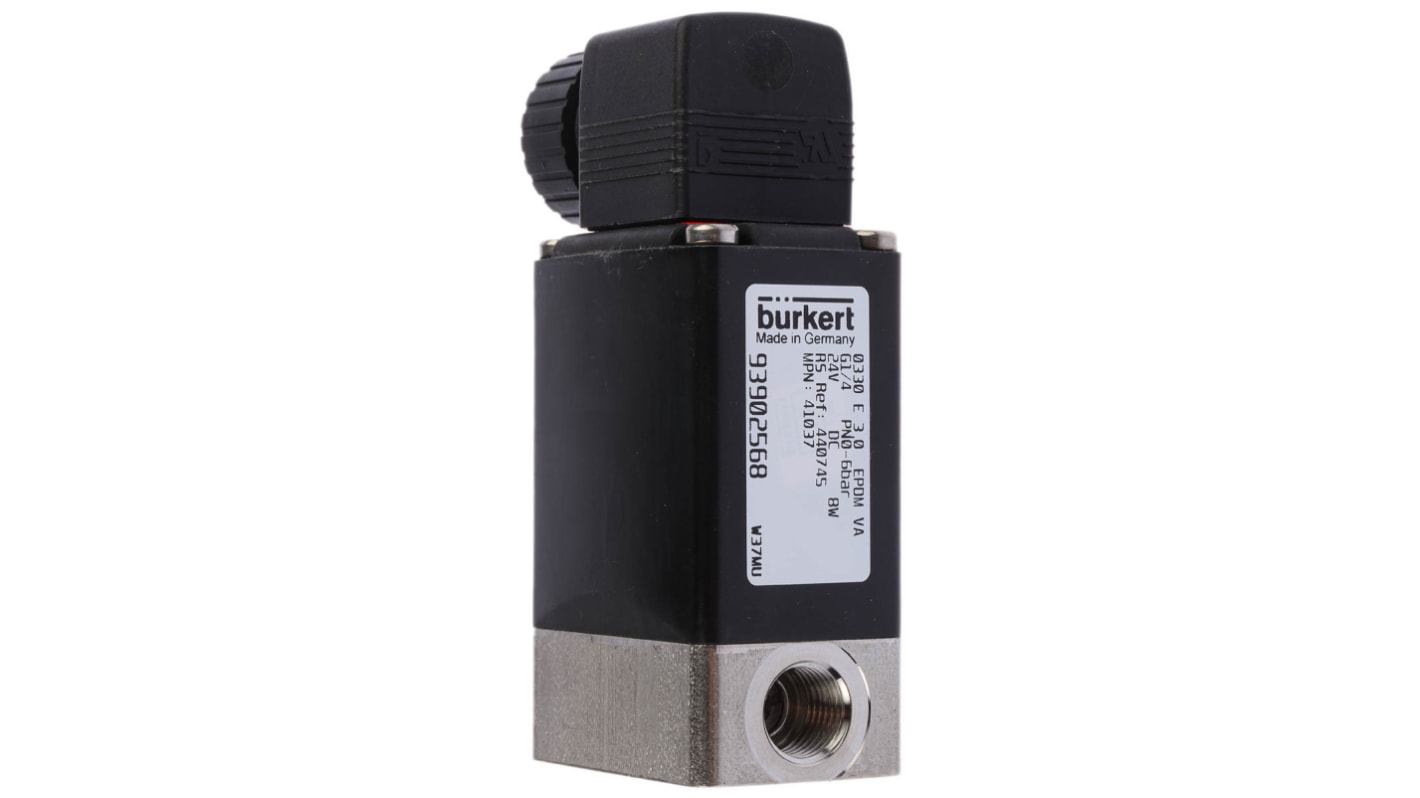

Burkert Solenoid Valve 041037, 3 port , NO/NC, 24 V dc, 1/4in

  • RS Stock No. 440-745
  • Mfr. Part No. 041037
  • Brand Burkert
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Stainless steel bodied, 3-way, Type 330

Solenoid valves with pivoted armatures which provide high pressure operation with aggressive gases and fluids.

BSP parallel ports compatible with RS stainless compression fittings
IP65 rated 3-pin DIN connector can be positioned through 360° in 90° increments
Zero head pressure capability
Lockable manual override
Fluid temperature range -30 to +90°C
May be mounted in any position
Power consumption 5VA/8W (Constant), 30VA (a.c. inrush)

Orifice Diameter 3mm
Kv Value Water 0.23 m3/h
Maximum Operating Pressure 6 bar
Voltage Tolerance ±10%
Cycling rate Approx. 1000 cpm
Viscosity 37cSt
Air Flow Rate 3.8l/min
Max. ambient temp. +55°C
Seal Material EPDM
Electrical conns. F = cable plug for cable 7mmØ
//media.rs-online.com/t_line/L440745-02.gif
//media.rs-online.com/t_line/L440745-03.gif
//media.rs-online.com/t_line/LD440745-01.gif
Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Ports 3
Operation Direct
Connection 1/4 in G Female
Connection Size 1/4in
Default Valve Position NO/NC
Suitable Applications Aggressive Media, Gas, Liquid
Type 3/2
Orifice Diameter 3mm
Body Material Stainless Steel
Maximum Working Pressure 6 bar
Operating Temperature Range -30 → +55 °C
Minimum Operating Temperature -30°C
Maximum Operating Temperature +55°C
Maximum Opening Time 20ms
Series 0330
Flow Factor Kv 0.14m³/h
Maximum Closing Time 20ms
Thread Standard or Connection Type G
Connection Gender Female
24 In stock for FREE next working day delivery
Price Each
£ 215.37
(exc. VAT)
£ 258.44
(inc. VAT)
Units
Per unit
1 +
£215.37
