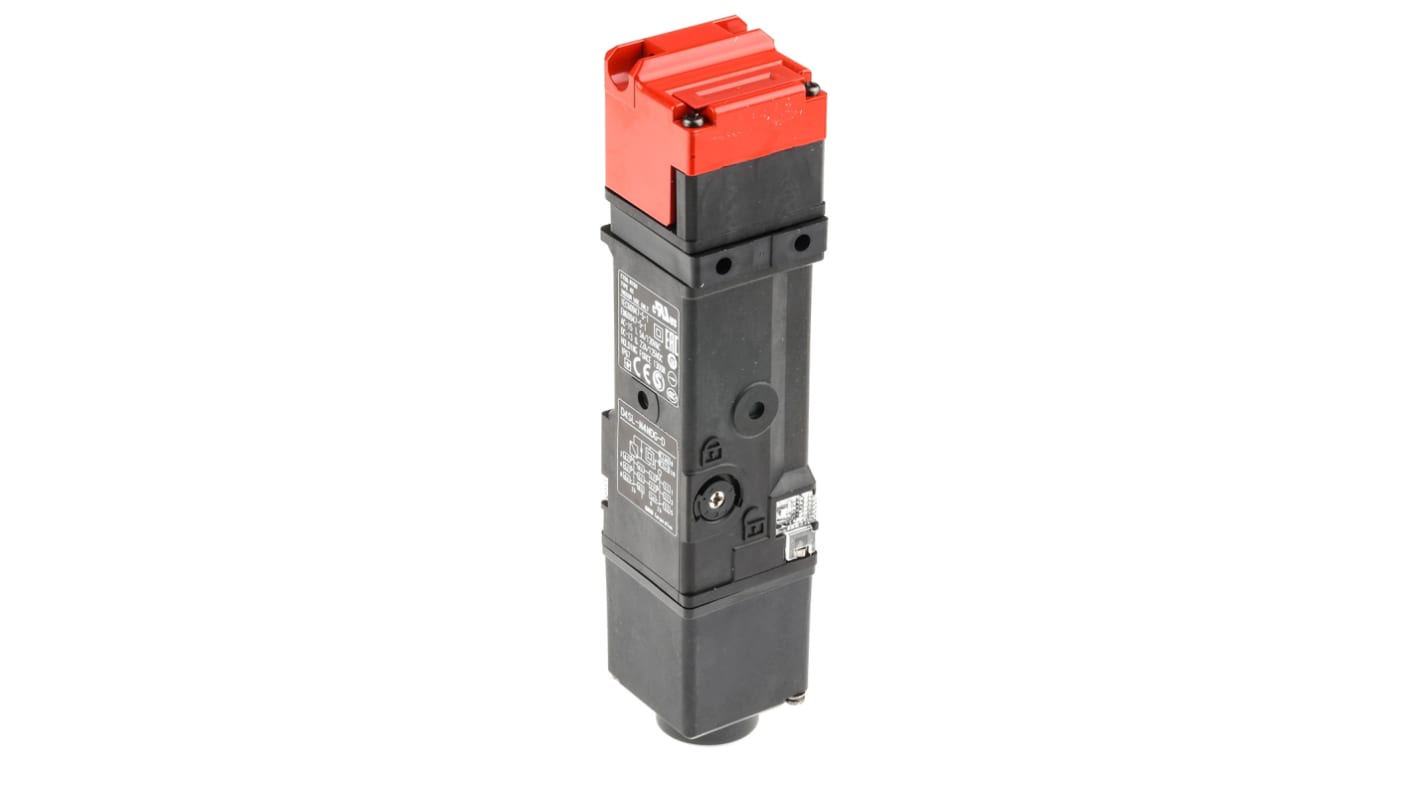

Omron D4SL-N Series Solenoid Interlock Switch, Power to Lock, 24V dc, 2NC/NO + 2NC/NO
- RS Stock No.:
- 820-3780
- Mfr. Part No.:
- D4SL-N4NDG-D
- Brand:
- Omron
Subtotal (1 unit)*
£195.90
(exc. VAT)
£235.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 6 unit(s) shipping from 28 October 2025
- Plus 8 unit(s) shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £195.90 |
*price indicative
- RS Stock No.:
- 820-3780
- Mfr. Part No.:
- D4SL-N4NDG-D
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Power to Lock / Unlock | Power to Lock | |
Supply Voltage | 24V dc | |
Series | D4SL-N | |
Actuator Included | No | |
Safety Contacts | NO/2NC | |
Normal State Configuration | 2NC/NO + 2NC/NO | |
Conduit Entry | M20 | |
Auxiliary Contacts | 2NC/1NO | |
Housing Material | Plastic | |
IP Rating | IP67 | |
Standards Met | CSA, UL | |
Length | 39mm | |
Width | 39mm | |
Depth | 179.9mm | |
Select all | ||
---|---|---|
Brand Omron | ||
Power to Lock / Unlock Power to Lock | ||
Supply Voltage 24V dc | ||
Series D4SL-N | ||
Actuator Included No | ||
Safety Contacts NO/2NC | ||
Normal State Configuration 2NC/NO + 2NC/NO | ||
Conduit Entry M20 | ||
Auxiliary Contacts 2NC/1NO | ||
Housing Material Plastic | ||
IP Rating IP67 | ||
Standards Met CSA, UL | ||
Length 39mm | ||
Width 39mm | ||
Depth 179.9mm | ||
- COO (Country of Origin):
- JP
Omron D4SL-N Series Solenoid Interlock Switch, 24 V DC Supply Voltage, 2NC/NO Normal State Configuration - D4SL-N4NDG-D
This solenoid interlock switch is designed for enhanced safety and efficient operation. The Omron D4SL-N series offers an IP67 rating, ensuring excellent dust and moisture protection. Compact in size, it measures 39mm in length and width with a depth of 179.9mm, making it suitable for various applications in automation, electronics, and electrical industries.
Features & Benefits
• Supports direct control of solenoids from a controller
• Key holding force of 1,300N prevents accidental unlocking
• Features NO/2NC safety contacts for reliable operation
• Easy installation with an M20 conduit entry type
• Constructed from durable plastic for lightweight and resilient performance
• Key holding force of 1,300N prevents accidental unlocking
• Features NO/2NC safety contacts for reliable operation
• Easy installation with an M20 conduit entry type
• Constructed from durable plastic for lightweight and resilient performance
Applications
• Utilised in machinery requiring secure access control
• Ideal for safeguarding hazardous areas in factory settings
• Suitable for integration into automated safety systems
• Utilised in environments where protection from dust and moisture is crucial
• Commonly found in electrical cabinets and control panels
• Ideal for safeguarding hazardous areas in factory settings
• Suitable for integration into automated safety systems
• Utilised in environments where protection from dust and moisture is crucial
• Commonly found in electrical cabinets and control panels
How does the locking mechanism work with the solenoid?
The locking mechanism engages once the solenoid is powered, providing secure closure to prevent unauthorised access. When power is supplied, it remains locked, ensuring safety during operations.
What types of contact configurations are supported?
The device supports configurations with NO/2NC safety contacts, allowing versatile integration into diverse safety interlock circuits adhering to strict operational requirements.
What is the significance of the IP67 rating for this switch?
The IP67 rating indicates complete protection against dust ingress and temporary immersion in water, making it suitable for use in wet or dusty environments where reliability is critical.
How is the switch mounted securely to ensure safety?
The switch can be securely mounted using M4 screws, and it is recommended to use additional adhesive for enhanced stability, preventing accidental disconnections or malfunctions.
What is the recommended voltage for optimal performance of the device?
This switch operates effectively at a supply voltage of 24V DC, ensuring a safe and reliable power source for its solenoid locking function.
