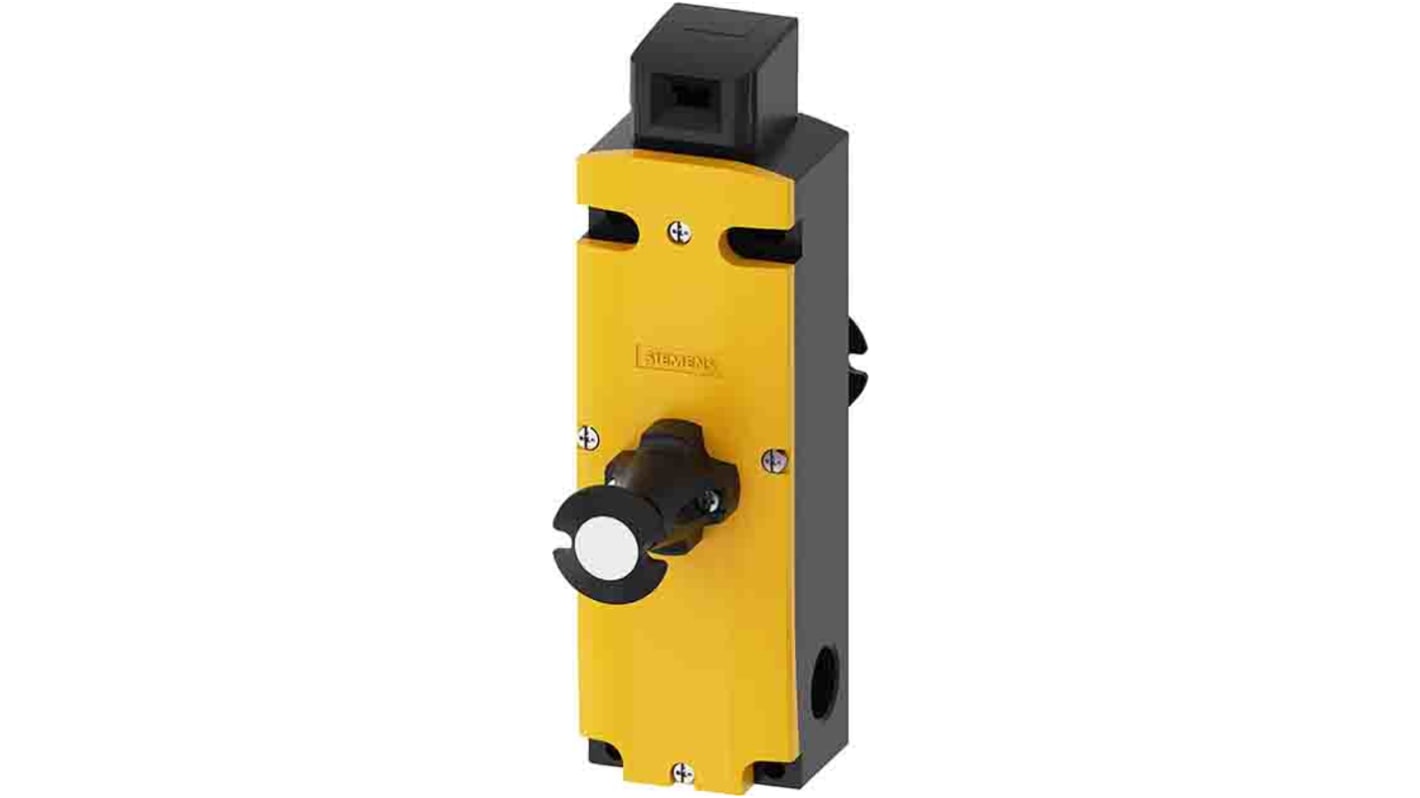

Siemens 3SE5 Series Solenoid Interlock Switch Actuator Included
- RS Stock No.:
- 213-0798
- Mfr. Part No.:
- 3SE5322-0SL21
- Brand:
- Siemens
Subtotal (1 unit)*
£358.44
(exc. VAT)
£430.13
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £358.44 |
*price indicative
- RS Stock No.:
- 213-0798
- Mfr. Part No.:
- 3SE5322-0SL21
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Solenoid Interlock Switch | |
| Actuator Included | Yes | |
| Series | 3SE5 | |
| Actuator Type | Standard Coded | |
| Safety Contacts | 4 | |
| Terminal Type | Screw | |
| Contact Current | 3A | |
| Contact AC Voltage | 240V ac | |
| Housing Material | Plastic | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL, EAC, VDE, CSA | |
| IP Rating | IP67 | |
| Supply Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Solenoid Interlock Switch | ||
Actuator Included Yes | ||
Series 3SE5 | ||
Actuator Type Standard Coded | ||
Safety Contacts 4 | ||
Terminal Type Screw | ||
Contact Current 3A | ||
Contact AC Voltage 240V ac | ||
Housing Material Plastic | ||
Hazardous Area Certification No | ||
Standards/Approvals UL, EAC, VDE, CSA | ||
IP Rating IP67 | ||
Supply Voltage 24V dc | ||
- COO (Country of Origin):
- DE
The Siemens safety position switch with tumbler approaches Spring-locked emergency release at the rear and escape release on the front magnet voltage 24 V DC monitoring. They ensure that protective doors, covers or protective flaps/grilles are kept closed, for as long as a hazardous state exists.
The actuator heads with screw less mounting can be rotated by 4x90 degrees. Five directions of approach are possible for the actuator, one of which is from the front. The contact blocks ensure an extremely high contact stability and can only be switched with separately coded actuators that guarantee greater protection against manipulation. LEDs conveniently indicate the current state of the device. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met.
Protection class is IP IP65/IP67
Mounting type is screw fixing
