Telemecanique Sensors XCS-TE Series Safety Switch
- RS Stock No.:
- 132-9170
- Mfr. Part No.:
- XCSTE7511
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£298.66
(exc. VAT)
£358.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 08 October 2025
- Plus 999,999,993 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £298.66 |
*price indicative
- RS Stock No.:
- 132-9170
- Mfr. Part No.:
- XCSTE7511
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Telemecanique Sensors | |
Series | XCS-TE | |
Actuator Type | Key | |
Housing Material | Plastic | |
IP Rating | IP67 | |
Maximum AC Voltage | 240V | |
Depth | 94mm | |
Length | 110mm | |
Maximum DC Voltage | 250V | |
Width | 33mm | |
Select all | ||
---|---|---|
Brand Telemecanique Sensors | ||
Series XCS-TE | ||
Actuator Type Key | ||
Housing Material Plastic | ||
IP Rating IP67 | ||
Maximum AC Voltage 240V | ||
Depth 94mm | ||
Length 110mm | ||
Maximum DC Voltage 250V | ||
Width 33mm | ||
RoHS Status: Exempt

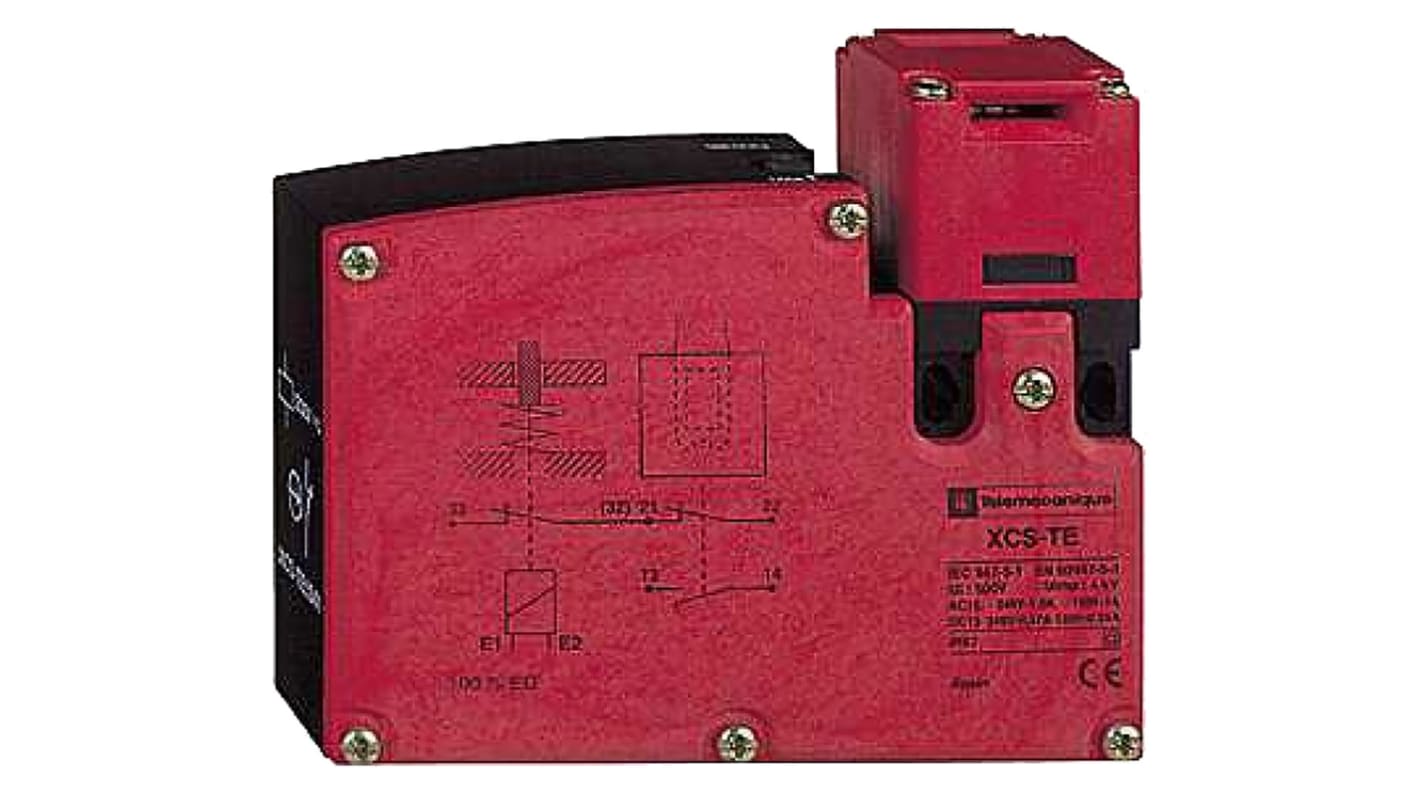

Telemecanique Sensors XCSTE Solenoid Interlock Switch.
From Telemecanique Sensors this is the XCSTE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSTE solenoid interlock switch is ideal for use with light duty industrial machines with a low rundown time.
Features.
Suitable for interlocking small moveable guards (EN1088, EN60204, EN292)
2 positive opening contacts as standard, on guard opening
1 N/C positive internal control contact operated by the solenoid
Key operated lock to allow authorised override of solenoid
Solenoid continuously rated 10VA, voltage limits -20 / +10% (including ripple on d.c.)
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 10VA (Solenoid continuously rated)
15N minimum operating force for positive opening
IP67 rating
2 positive opening contacts as standard, on guard opening
1 N/C positive internal control contact operated by the solenoid
Key operated lock to allow authorised override of solenoid
Solenoid continuously rated 10VA, voltage limits -20 / +10% (including ripple on d.c.)
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 10VA (Solenoid continuously rated)
15N minimum operating force for positive opening
IP67 rating
Note
Actuators must be purchased separately.
