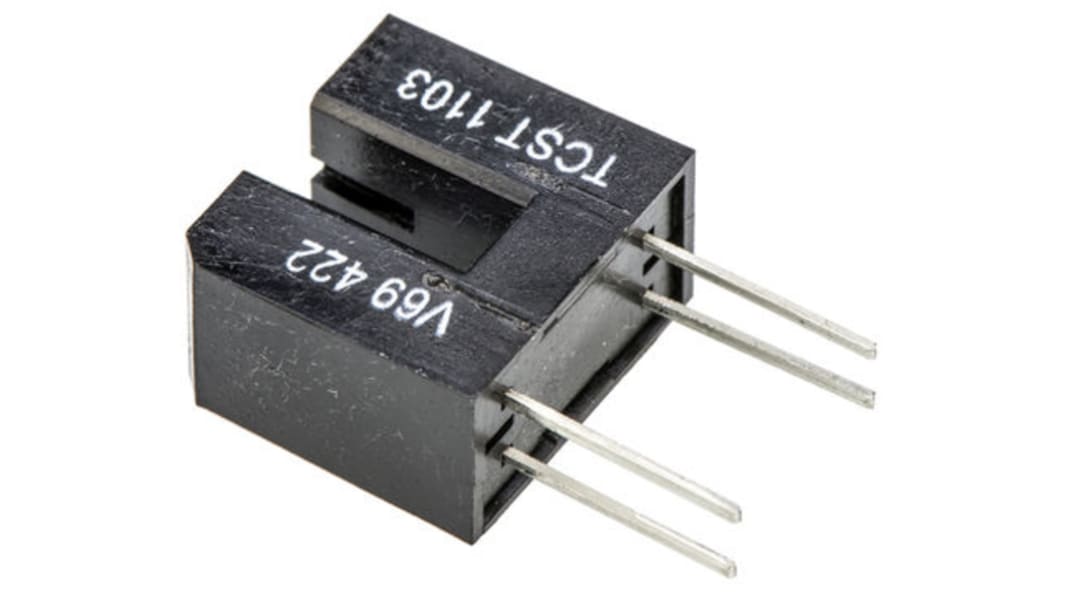

TCST1103 Vishay, Through Hole Slotted Optical Switch, Phototransistor Output

  • RS Stock No. 919-0165
  • Mfr. Part No. TCST1103
  • Brand Vishay
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

Miniature Slotted Optical Switch, Vishay

Compact package
Transistor Output
PCB mounting
Suitable for high-resolution encoding

Slotted Optical Switches, Vishay

Specifications
Attribute Value
Output Device Phototransistor
Number of Channels 1
Typical Rise Time 10 μ
Typical Fall Time 8µs
Mounting Type Through Hole
Number of Pins 4
Dimensions 11.9 x 6.3 x 11.1mm
Height 11.1mm
Length 11.9mm
Maximum Operating Temperature 85°C
Minimum Operating Temperature -55°C
Slot Width 3.1mm
Width 6.3mm
Operating Temperature Range -55 → +85°C
425 In stock for FREE next working day delivery
Price Each (In a Tube of 85)
£ 0.746
(exc. VAT)
£ 0.895
(inc. VAT)
Units
Per unit
Per Tube*
85 - 340
£0.746
£63.41
425 - 1615
£0.634
£53.89
1700 - 4165
£0.56
£47.60
4250 +
£0.485
£41.225
*price indicative
