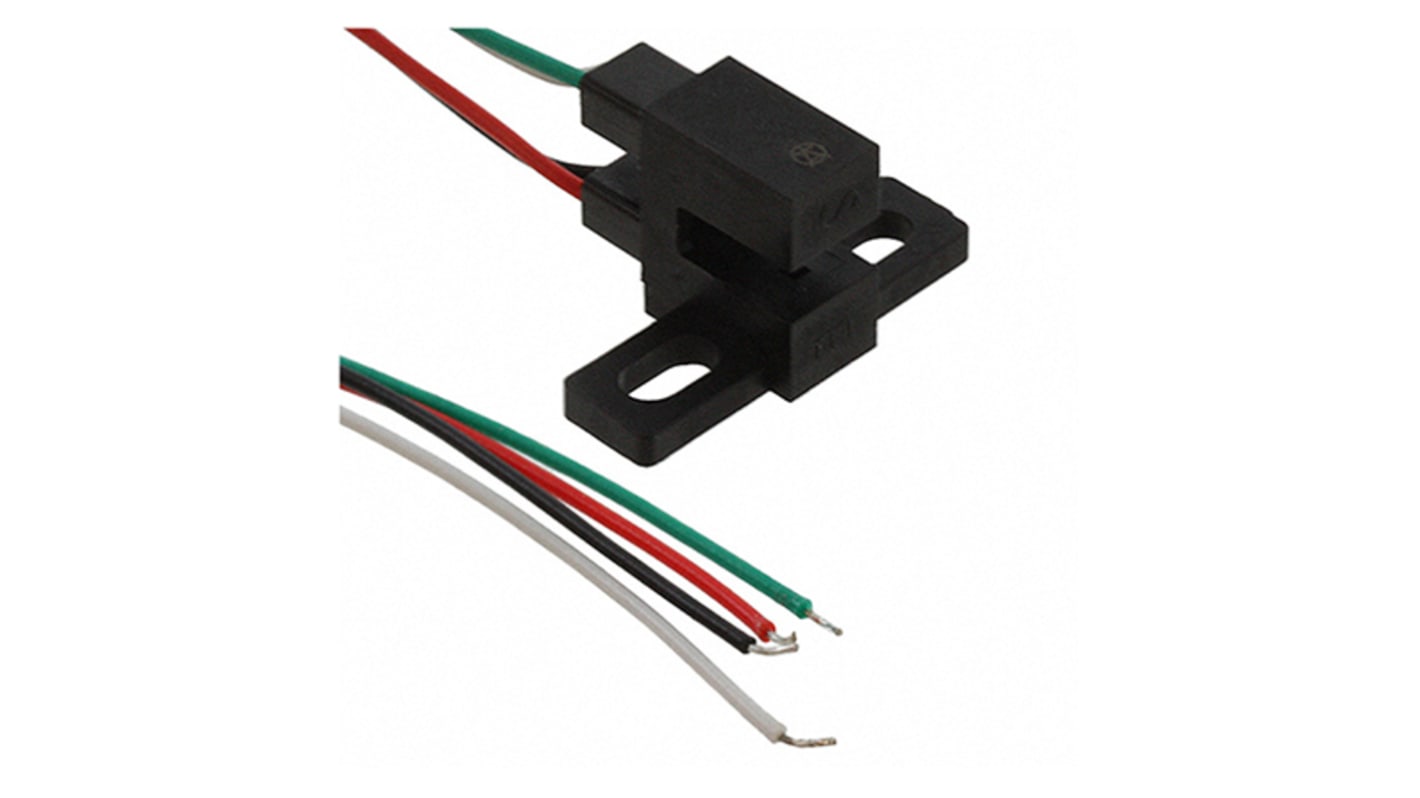

OPB840W55Z Optek, Panel Mount Slotted Optical Switch, Transistor Output
- RS Stock No.:
- 908-7160
- Mfr. Part No.:
- OPB840W55Z
- Brand:
- Optek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 908-7160
- Mfr. Part No.:
- OPB840W55Z
- Brand:
- Optek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Optek | |
| Output Device | Transistor | |
| Mounting Type | Panel Mount | |
| Package Type | Wire | |
| Dimensions | 23.75 x 12.95 x 10.54mm | |
| Height | 10.54mm | |
| Length | 23.75mm | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -40°C | |
| Slot Width | 3.18mm | |
| Width | 12.95mm | |
| Operating Temperature Range | -40 → +80°C | |
| Series | OPB840 | |
Select all | ||
|---|---|---|
Brand Optek | ||
Output Device Transistor | ||
Mounting Type Panel Mount | ||
Package Type Wire | ||
Dimensions 23.75 x 12.95 x 10.54mm | ||
Height 10.54mm | ||
Length 23.75mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Slot Width 3.18mm | ||
Width 12.95mm | ||
Operating Temperature Range -40 → +80°C | ||
Series OPB840 | ||
- COO (Country of Origin):
- MX
OPB830 and OPB840 Series Slotted Optical Switches
This family of slotted optical sensors, from Optek Technology, enable you to create a custom device from a standard product line. This flexibility includes choices of aperture, shell material, and lead spacing. An opaque plastic housing minimises the sensitivity to visible and near IR light.
The parallel faces inside the slot are covered with an IR transmissive plastic or opaque plastic with an opening. The IR transmissive plastic is suitable for applications which require dust protection and the opaque is for applications that require maximum protection against ambient light.
The parallel faces inside the slot are covered with an IR transmissive plastic or opaque plastic with an opening. The IR transmissive plastic is suitable for applications which require dust protection and the opaque is for applications that require maximum protection against ambient light.
Features of the slotted optical switches:
Slot width: 3.18 mm
Opaque or IR transmissive surfaces
Side mounted
Choice of lead spacing
Slot width: 3.18 mm
Opaque or IR transmissive surfaces
Side mounted
Choice of lead spacing
Slotted Optical Switches, Optek Technology
